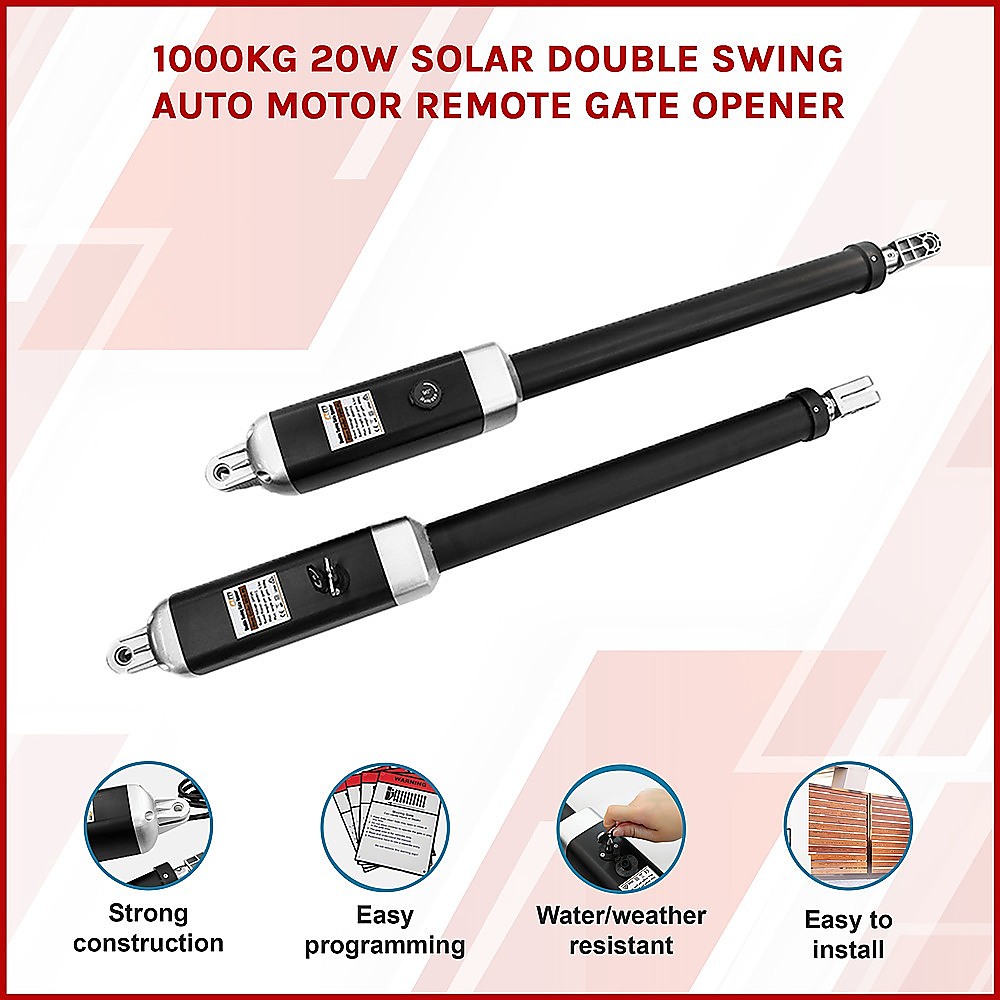

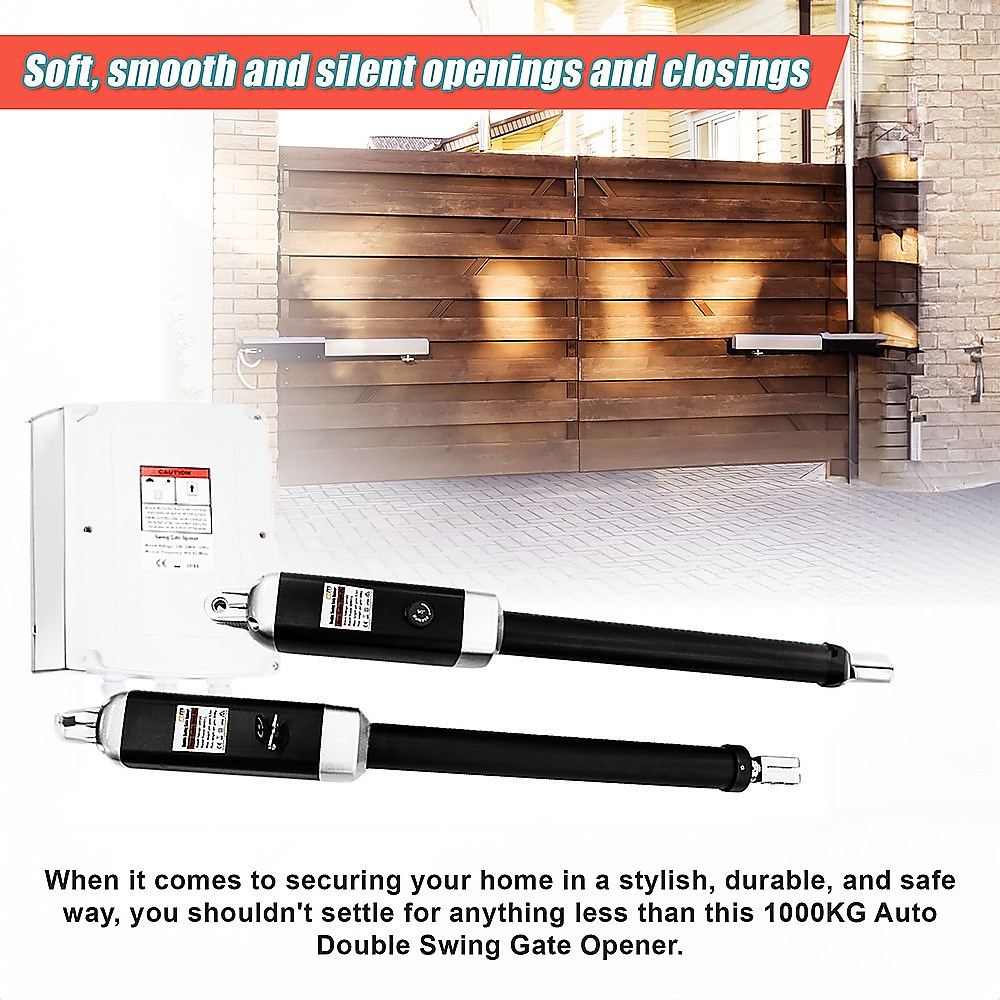

1000KG 20W Solar Double Swing Auto Motor Remote Gate Opener

This product is a 1000KG capacity solar double swing gate opener designed for secure and convenient access control. It features a durable aluminum alloy actuator with a powerful motor, ensuring smooth and silent operation. The system supports both dual and single gate modes, with customizable settings for opening intervals and auto-close timing. It includes remote controls for easy operation and a waterproof, dust-proof control box for reliable performance in various weather conditions.

Features:

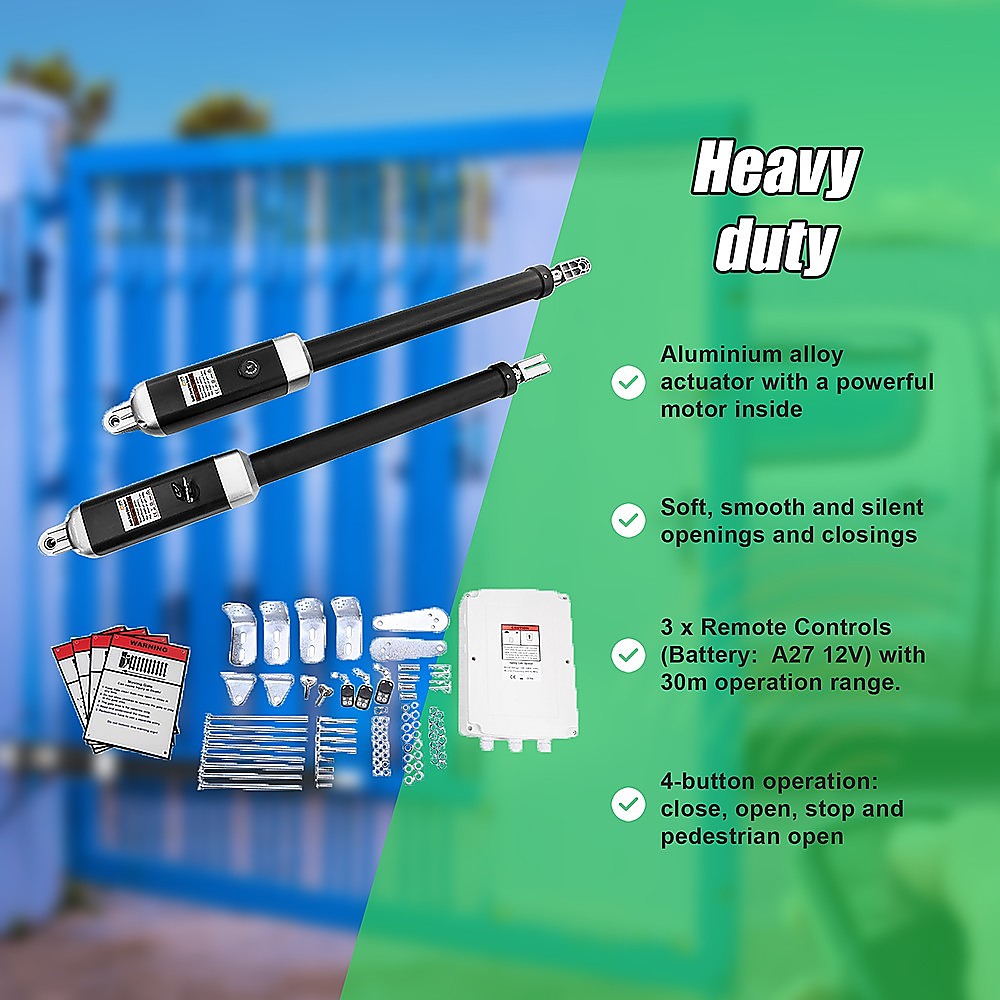

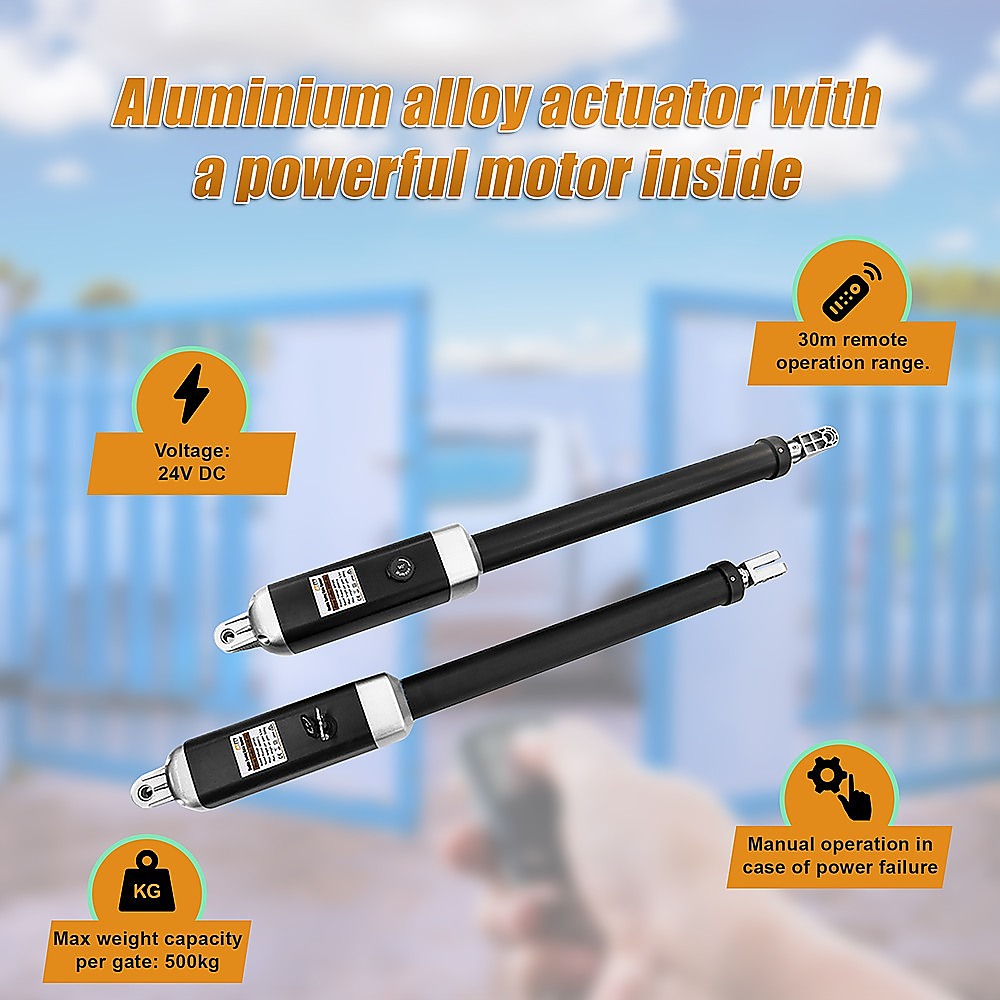

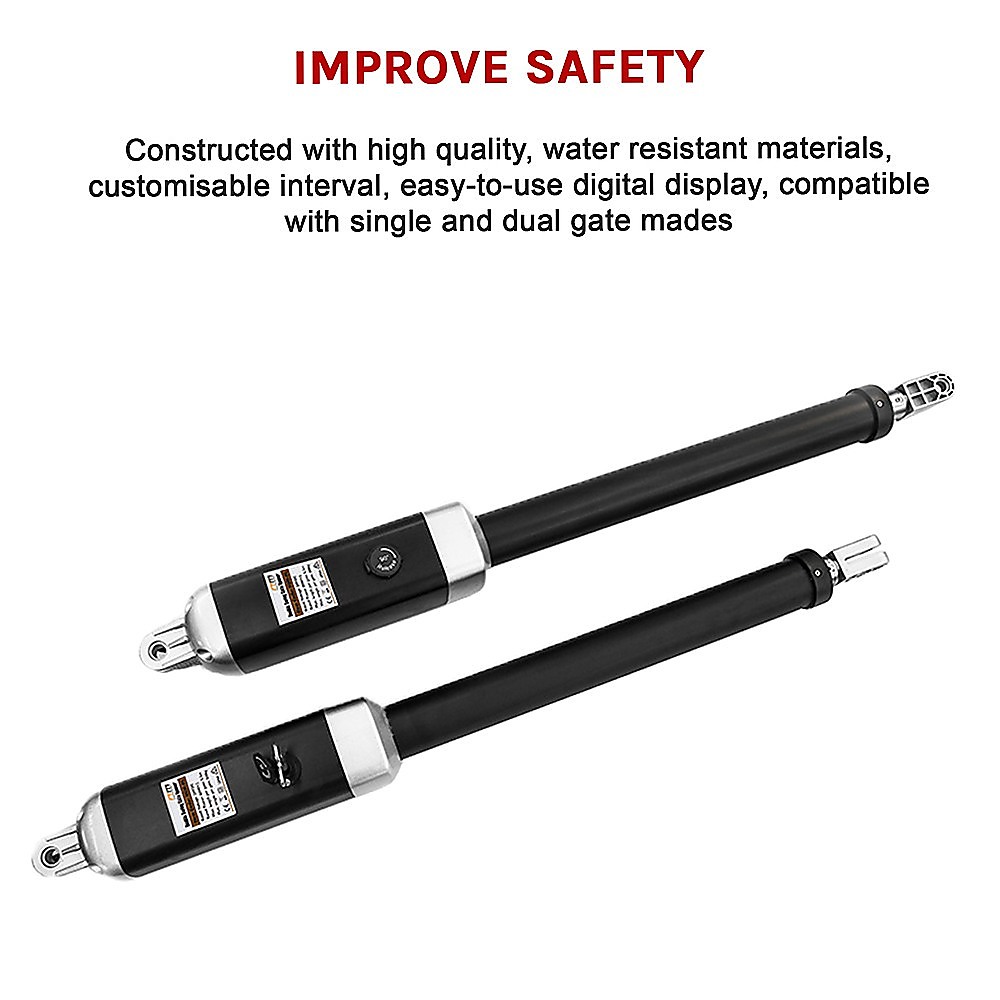

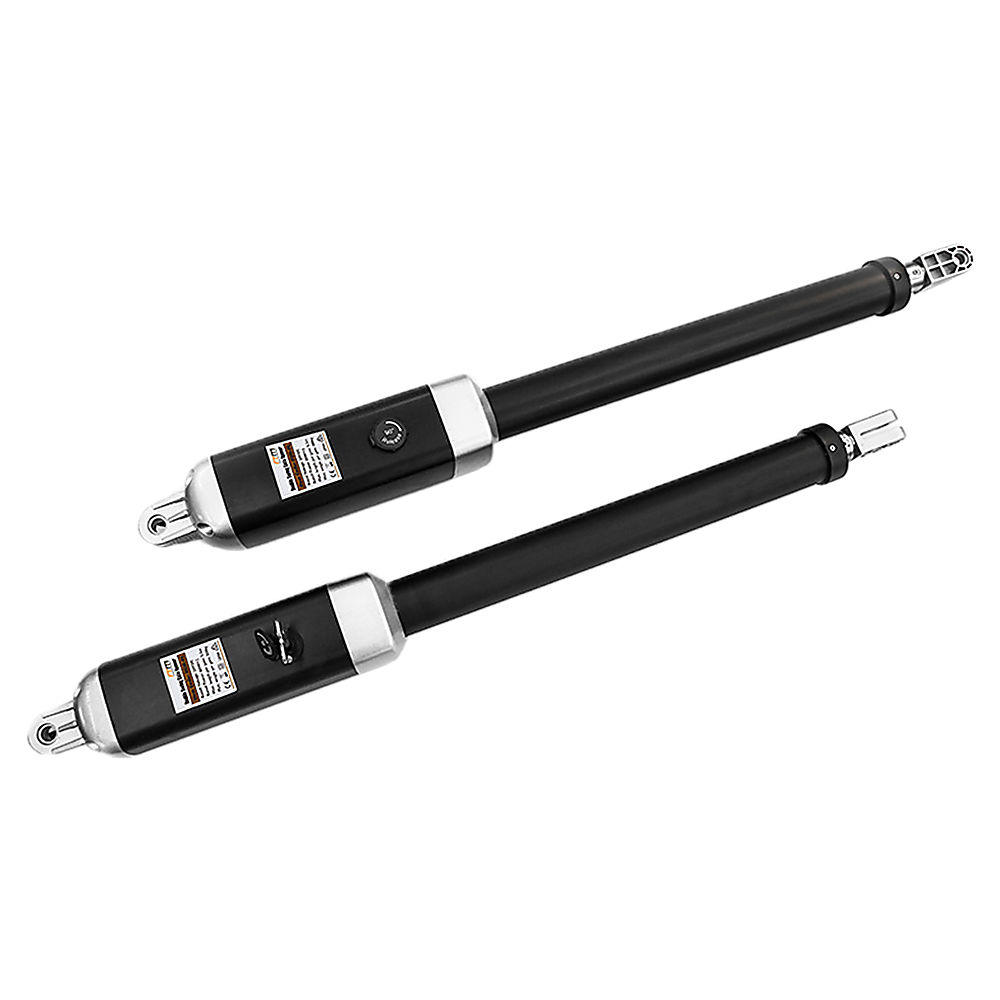

• Aluminum alloy actuator with a high-power motor
• Silent and smooth opening and closing
• Obstruction detection with stop and reverse mode (customizable sensitivity)
• Supports dual gate and single gate operation modes
• Adjustable interval between master and slave gate opening
• Auto-close timing adjustable from 0 to 99 seconds
• Over-current protection
• Manual operation available during power failure
• Includes three remote controls with a range of up to 30 meters
• Four-button remote for close, open, stop, and pedestrian access
• Digital control board with status indicators and menu settings
• Waterproof and dust-proof control box
• Complete with user manual and installation hardware

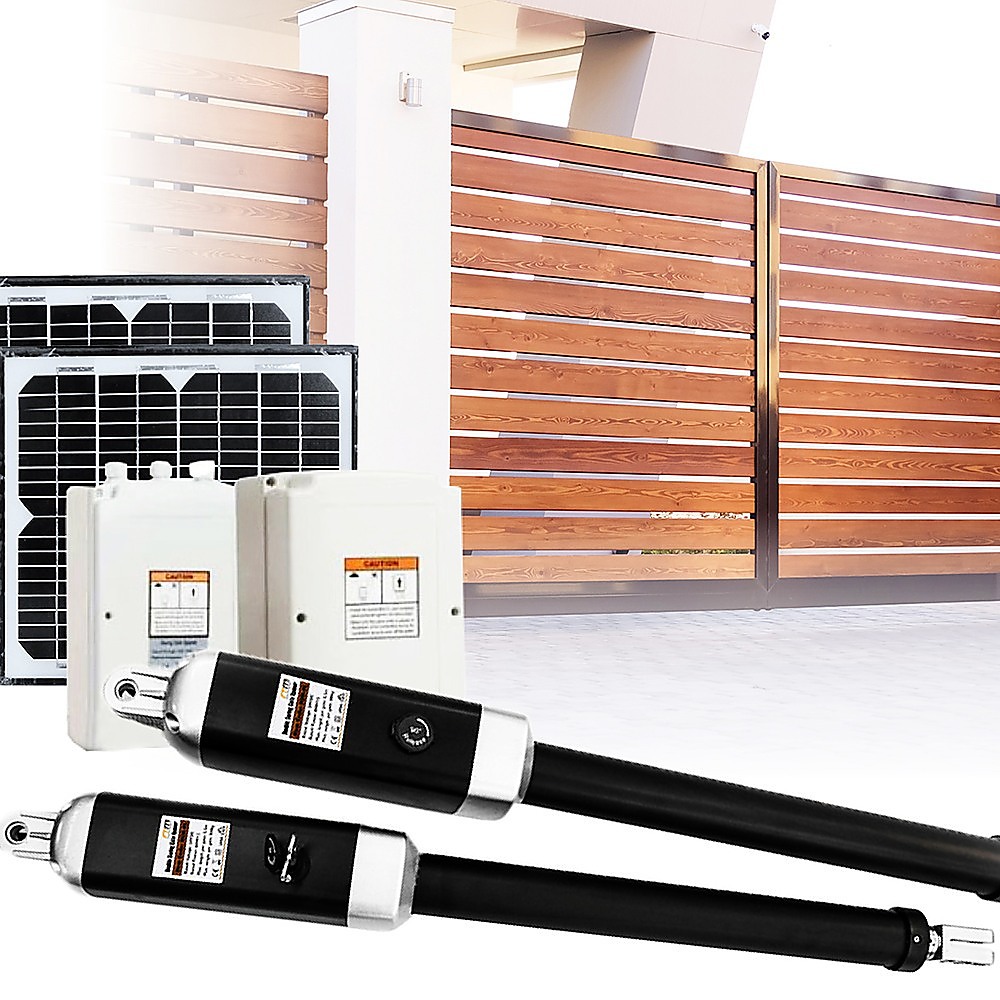

• Backup batteries and solar panels included for solar power operation

Specifications:

• Voltage: 24V DC
• Gate limit type: Electromagnetism Limit
• Actuator speed: 16mm/s

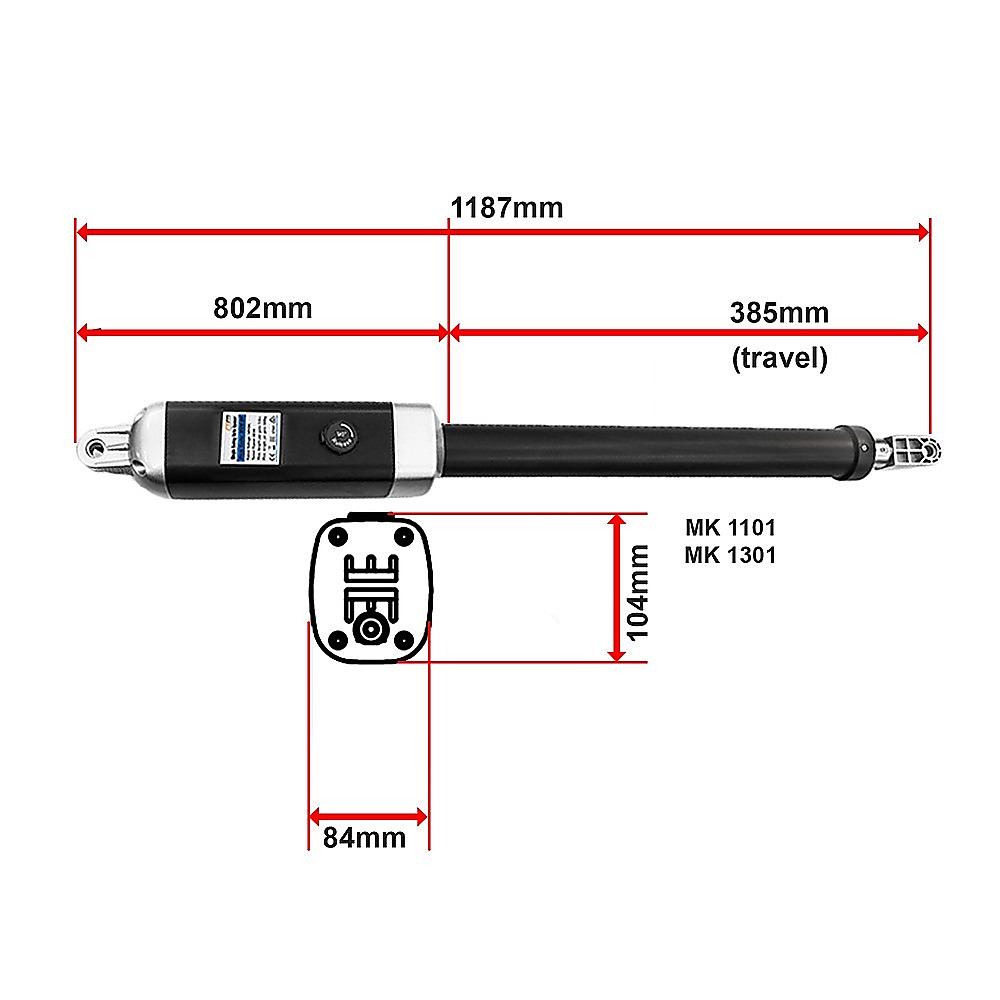

• Maximum piston travel: 385mm

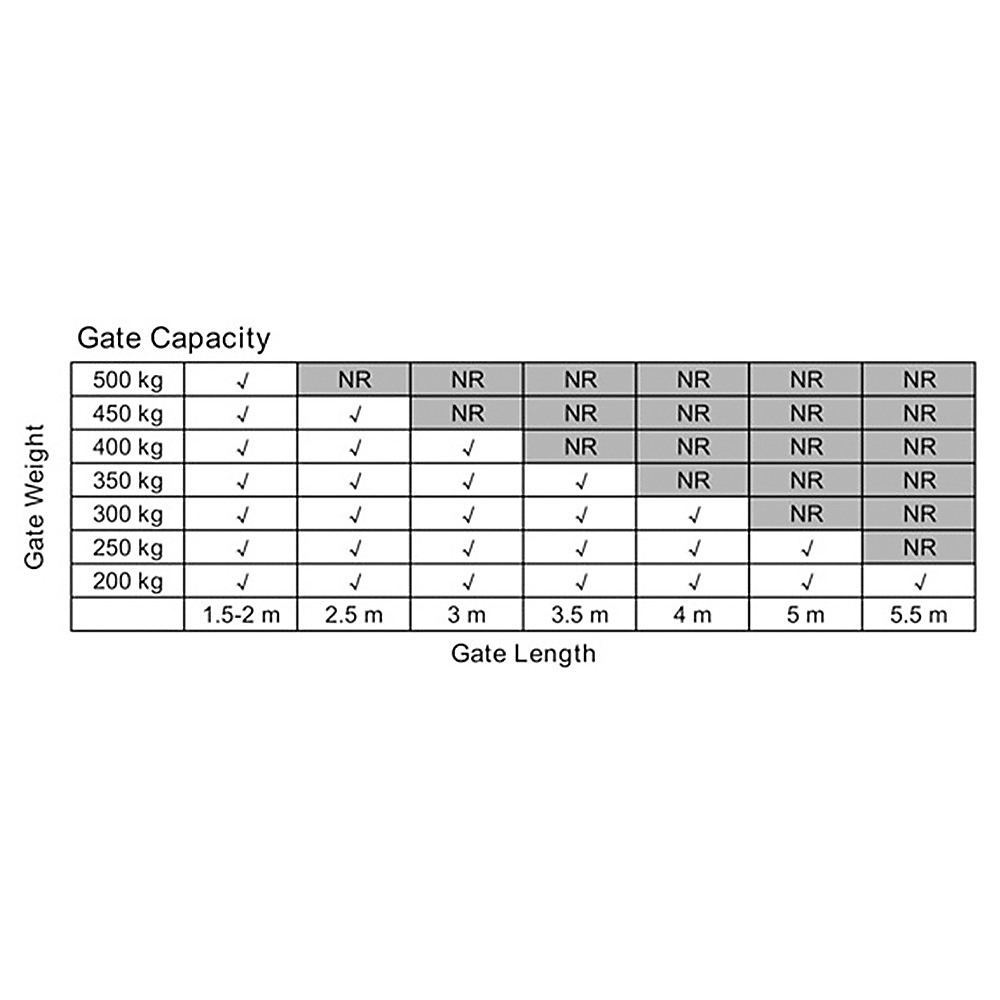

• Maximum weight capacity per gate: 500kg
• Maximum gate width: 5.5 meters (supports gates up to 200kg)
• Rotation time for 90 degrees: 8 to 15 seconds
• Maximum opening angle: 0 to 110 degrees
• Operating temperature range: -25??C to +55??C
• Protection class: IP44
• Certifications: CE and EMC approved

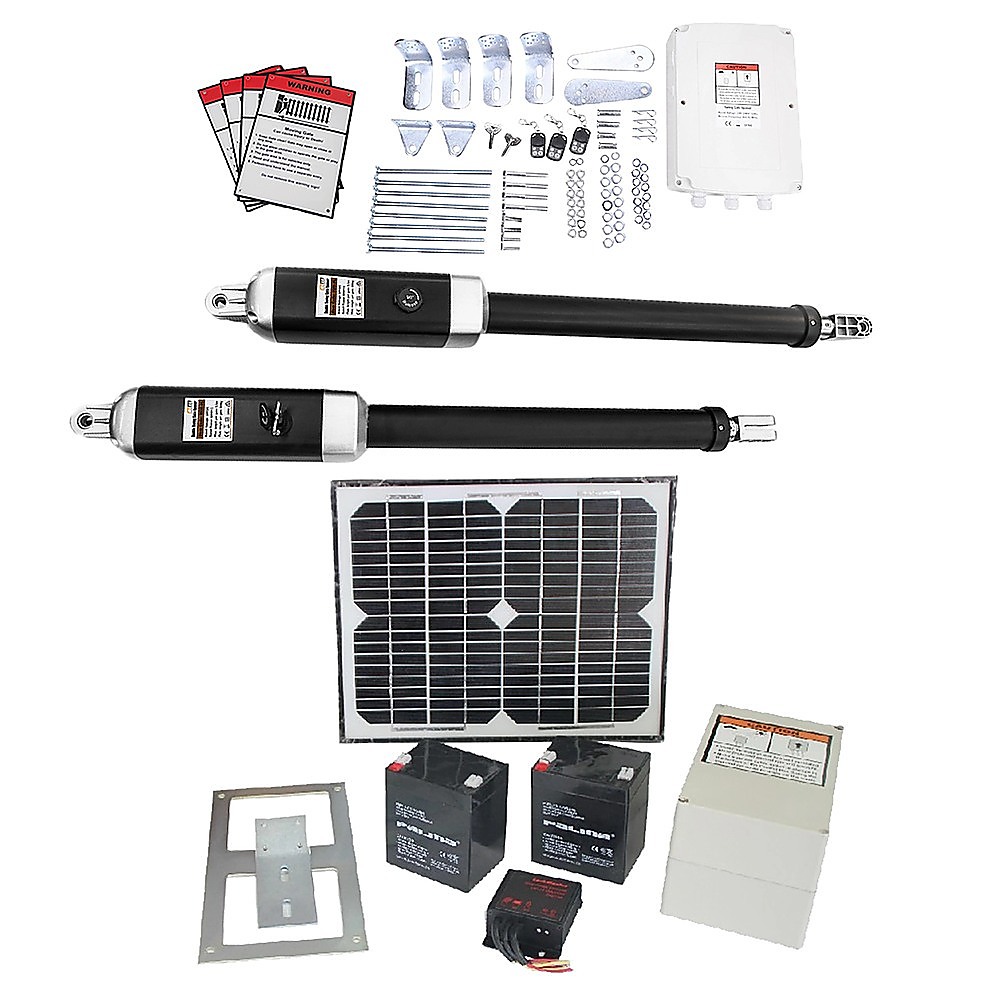

Package Content:

• Gate opener motor unit
• Remote controls (3 units)
• Digital control board
• Waterproof and dust-proof control box
• Backup batteries (2 x 12V 7.2AH)
• Solar panels (2 x 10W mono)

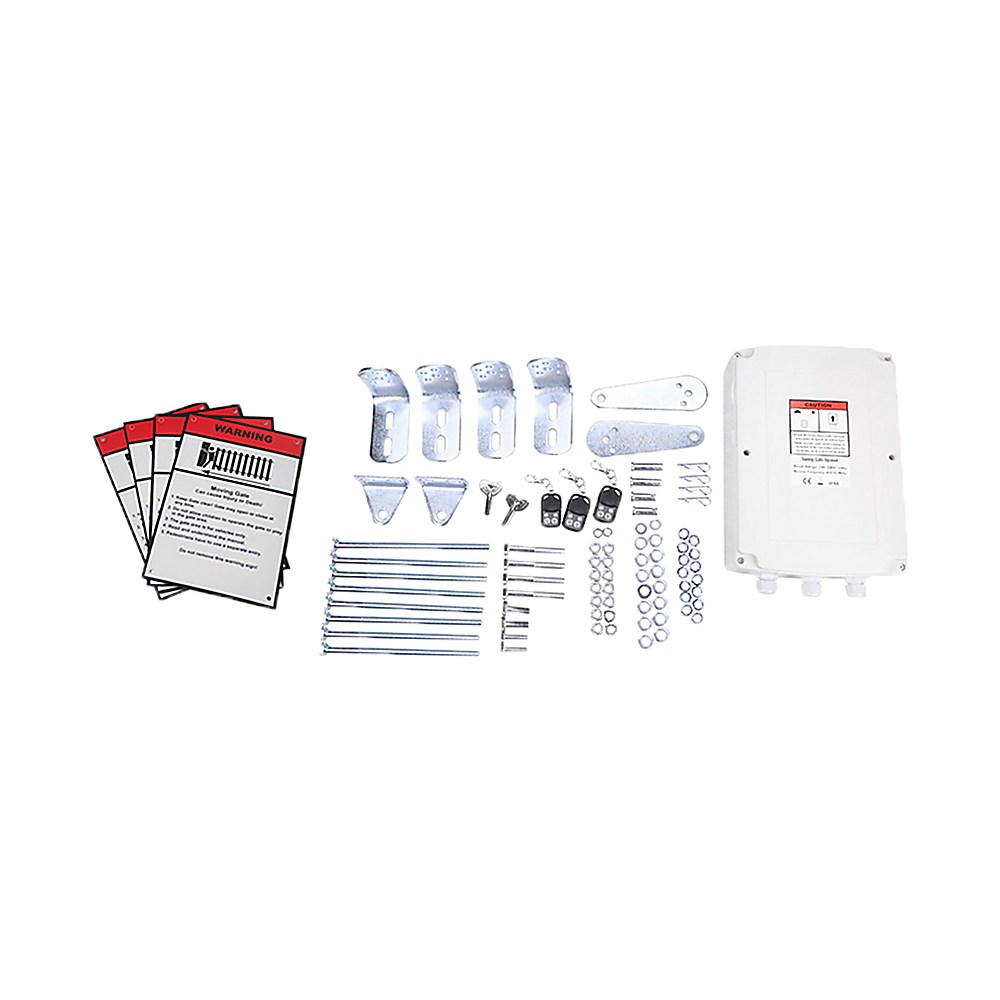

• All necessary installation hardware and user manual
