1HP Submersible Bore Water Pump Deep Well Irrigation Stainless Steel 240V

This 1HP submersible bore water pump is designed for deep well irrigation and water extraction. It offers a high flow rate and durable construction, making it suitable for various water sourcing needs from shallow to very deep underground levels.

Features

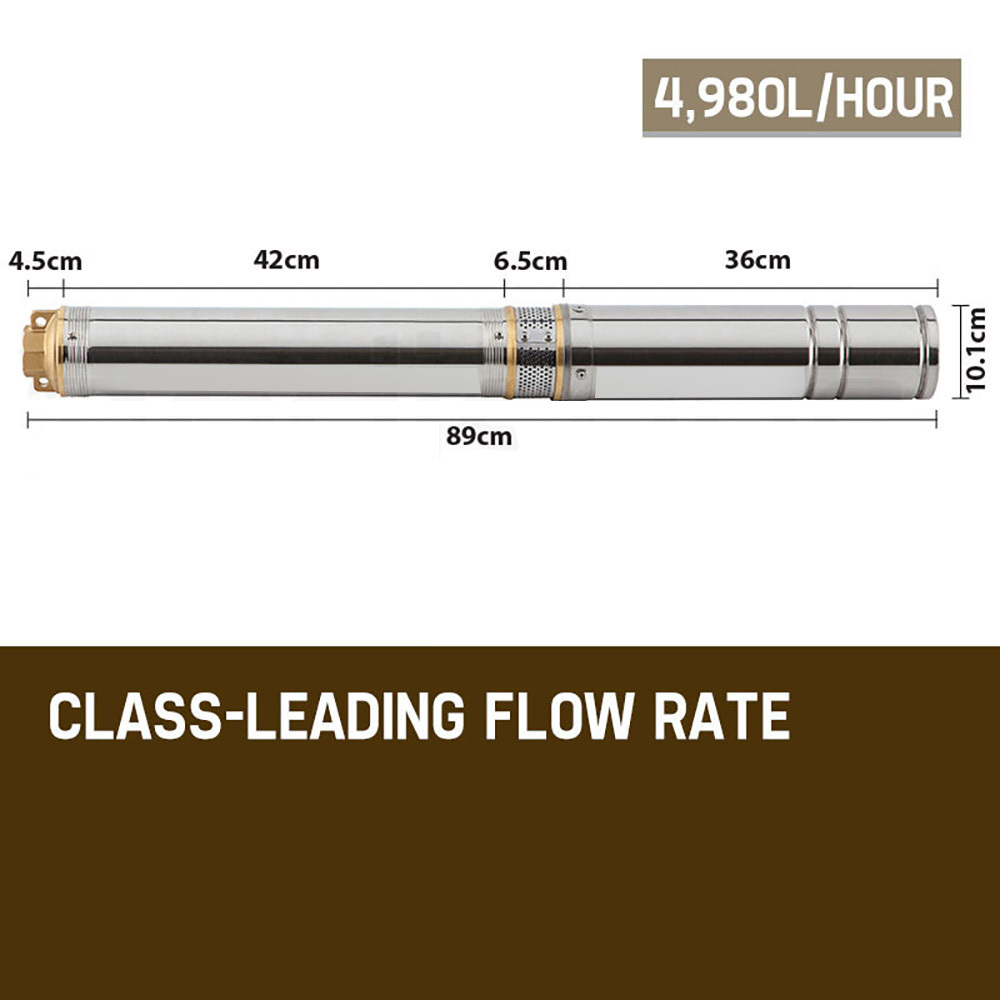

• High flow rate of 83 liters per minute at 26 meters depth
• Maximum flow of 17 liters per minute at 88 meters depth
• Equipped with 10 impellers for efficient performance
• Can be mounted vertically or horizontally

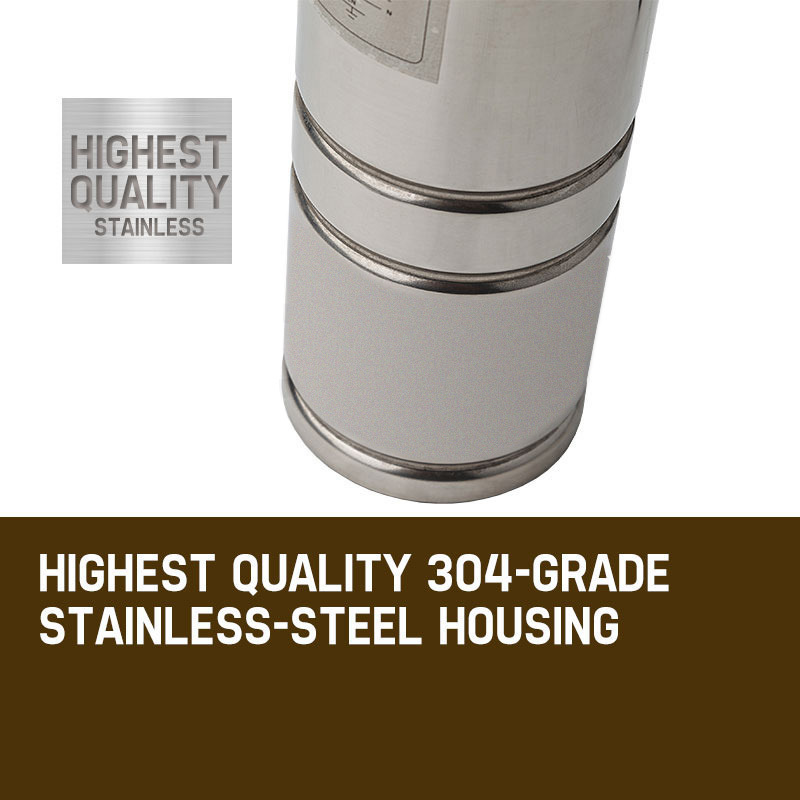

• Constructed with a 304-grade stainless steel housing and brass inlets and outlets

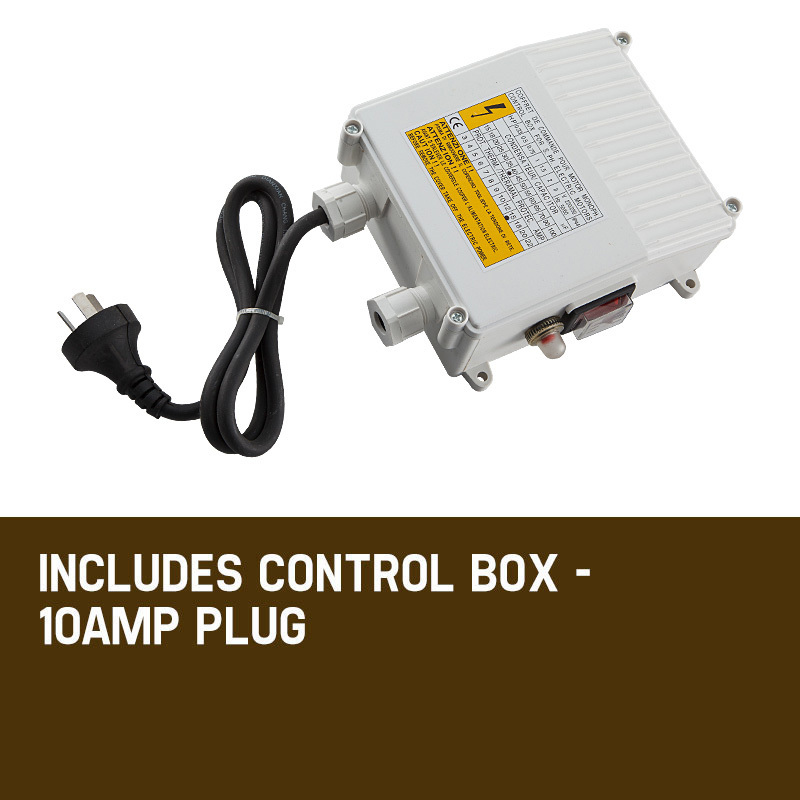

• Includes a control box for operation management
• Suitable for boreholes with a diameter of 100mm
• Maximum head of 90 meters

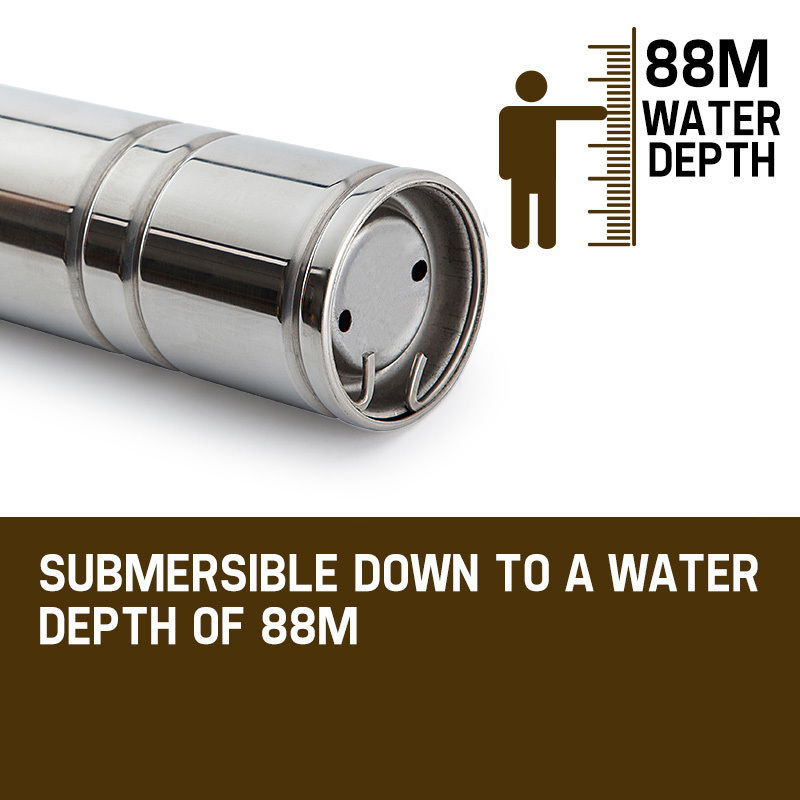

• Submersible to a depth of 88 meters

Specification

• Motor Power: 1HP / 0.75Kw
• Voltage: 240V / 50Hz
• Phase: Single
• Revolutions: 2850 RPM

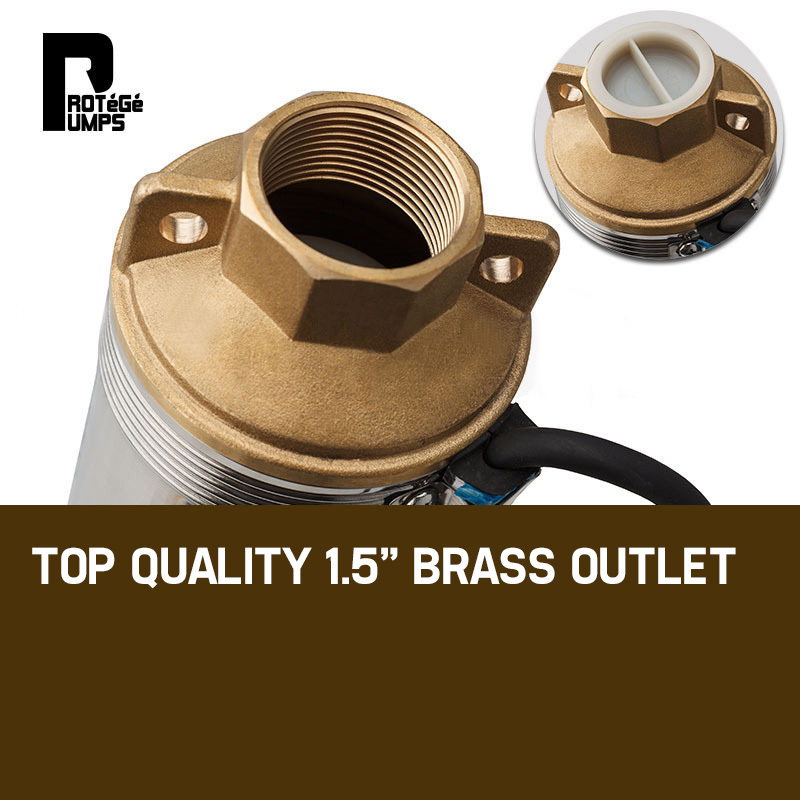

• Brass Outlet Size: 1.25 inches
• Protection Class: IP68
• Insulation Class: I
• Maximum Starts Per Hour: 30
• Overload Trip Time: Less than 10 seconds

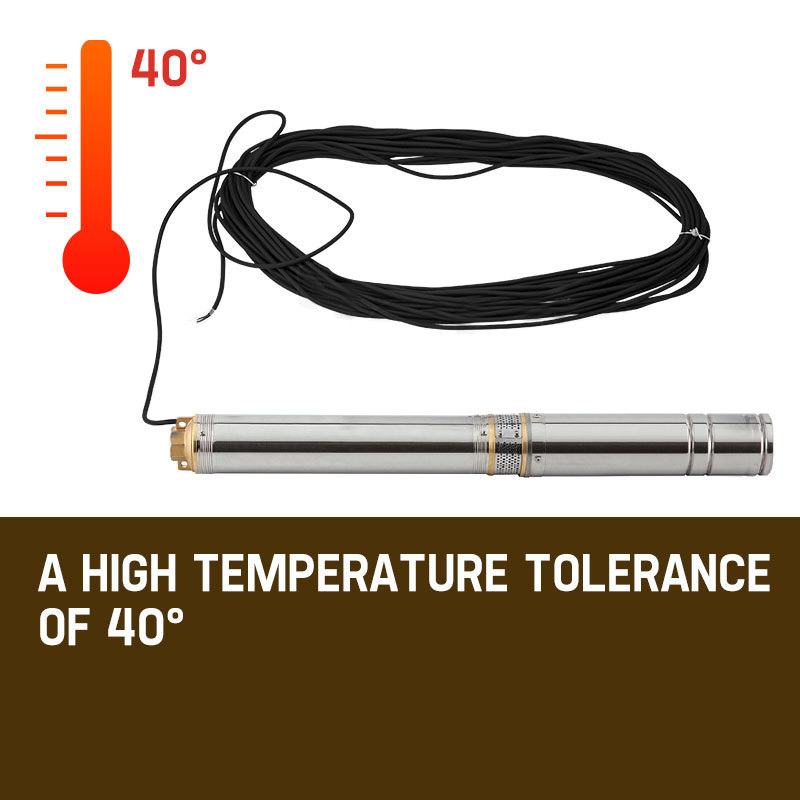

• Maximum Ambient and Fluid Temperature: 70??C
• Cable Length: 30 meters

Package Content

• 1 x 1HP submersible bore water pump
• 1 x Control box
• 1 x User manual
