20A Solar Charge Controller 12V 24V LCD 2 USB Ports Lead-Acid Regulator

This solar charge controller is designed to efficiently manage power from solar panels to lead-acid batteries in 12V and 24V systems. It features automatic recognition of system voltage, multiple protection functions, and user-friendly monitoring options to ensure safe and reliable operation.

Features:

• Auto recognition of 12V and 24V battery systems
• Dual USB ports with a maximum output of 5V/2A
• LCD display showing voltage, current, and battery status
• Protection against overcharge, over-discharge, short circuit, and reverse polarity
• Microcontroller control for precise charging

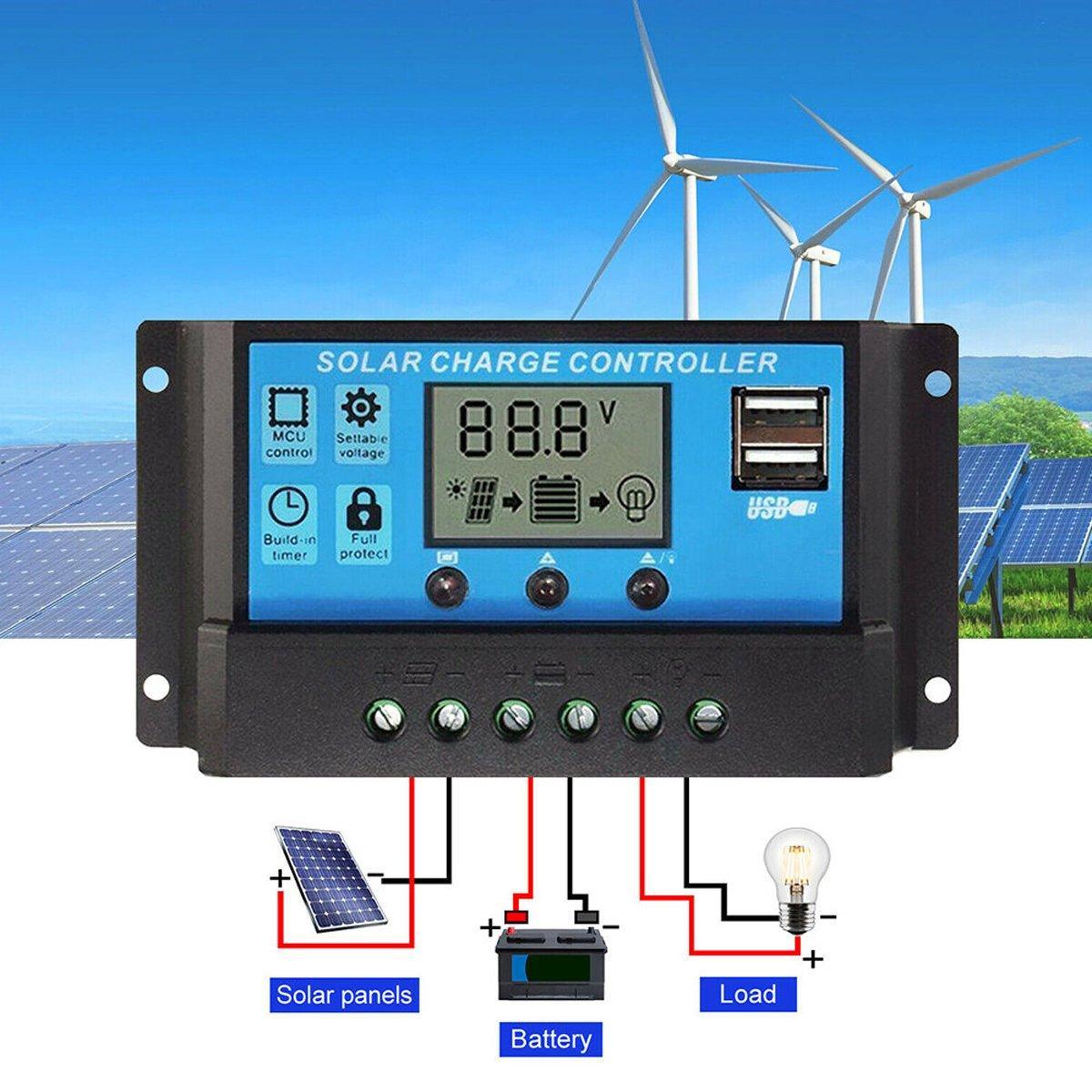

• Easy installation with included connection diagram
• Robust design with heat dissipation features

Specifications:

• Rated charge/discharge current: 20A
• System voltage: 12V/24V auto recognition
• USB output: 5V/2A (max)
• Display: LCD showing system data
• Protection features: overcharge, over-discharge, short circuit, reverse polarity
• Operating temperature: -35??C to +60??C

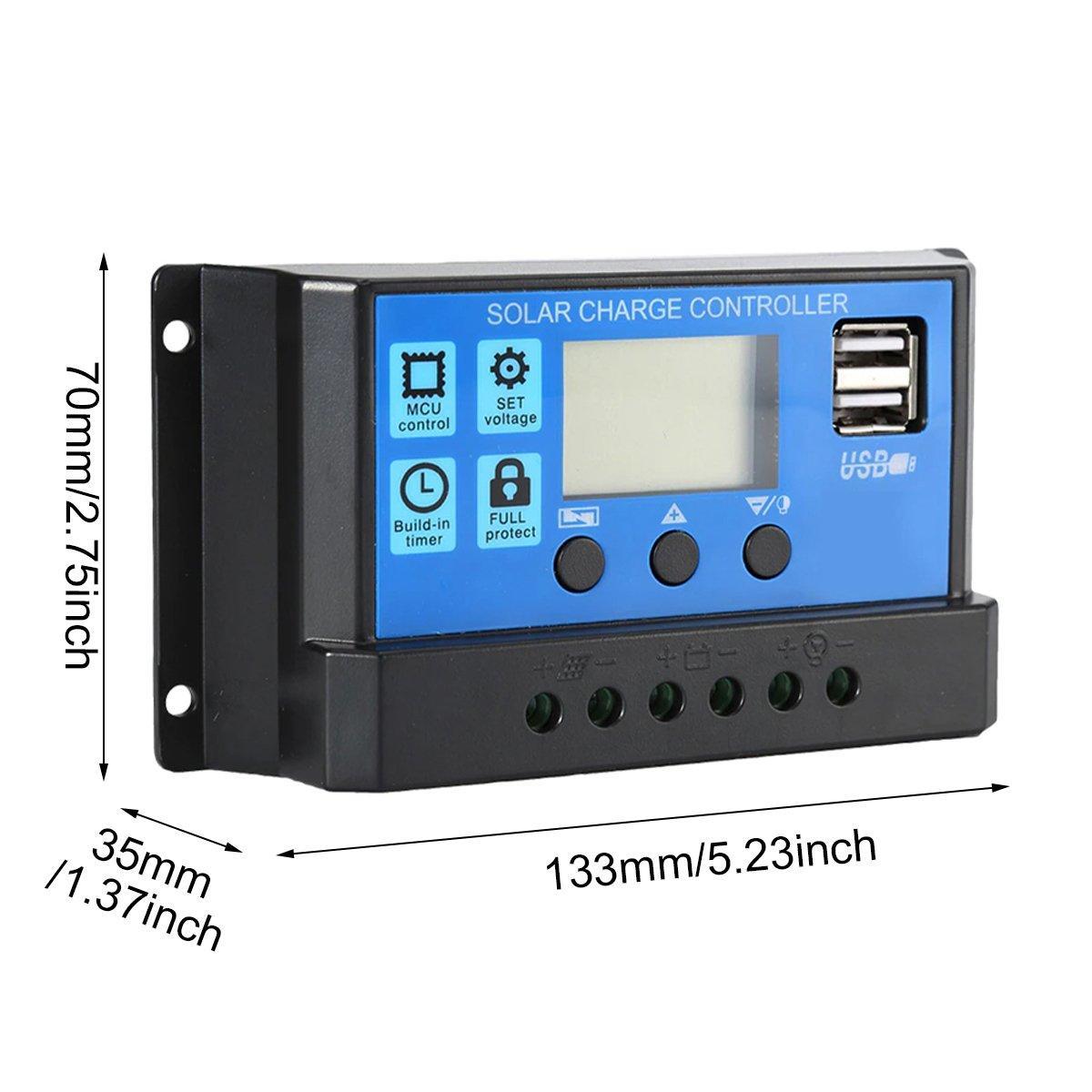

• Dimensions: 133mm x 70mm x 35mm
• Color: Black and Blue

Package Content:

• 1 x 20A Solar Charge Controller
