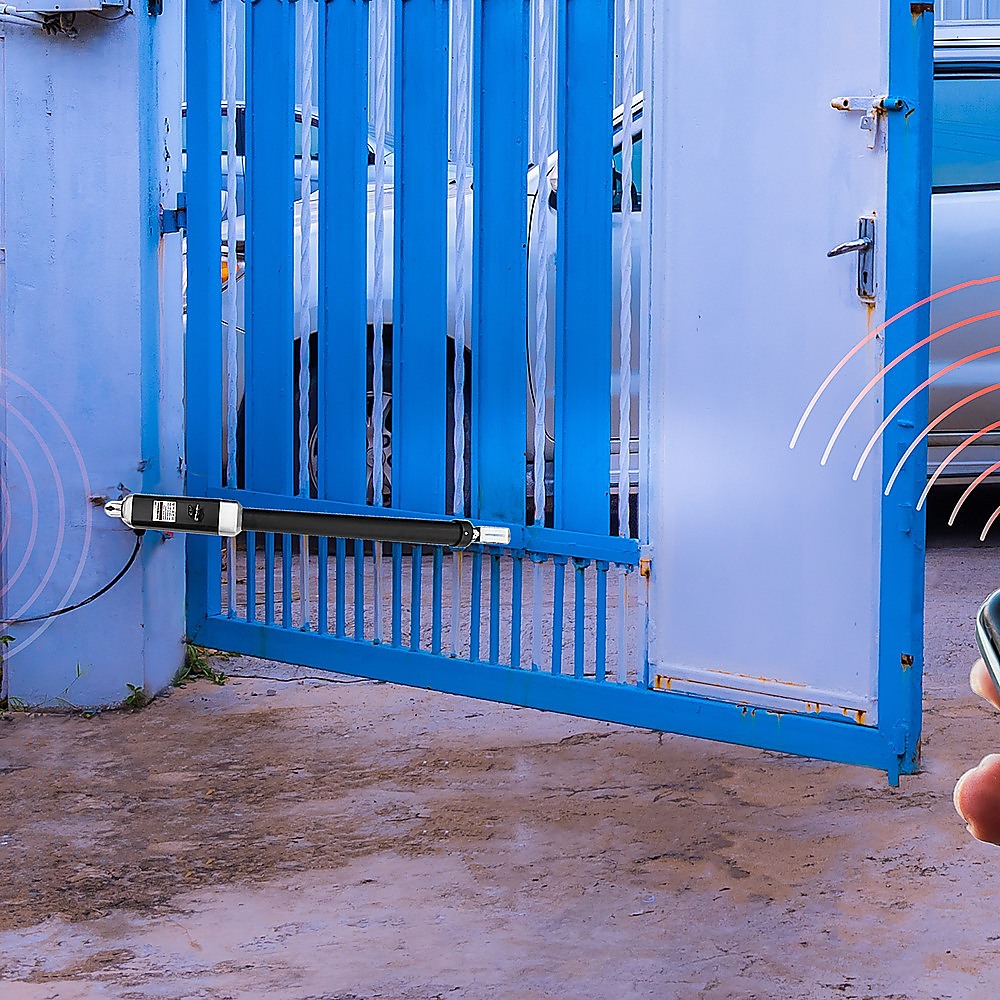

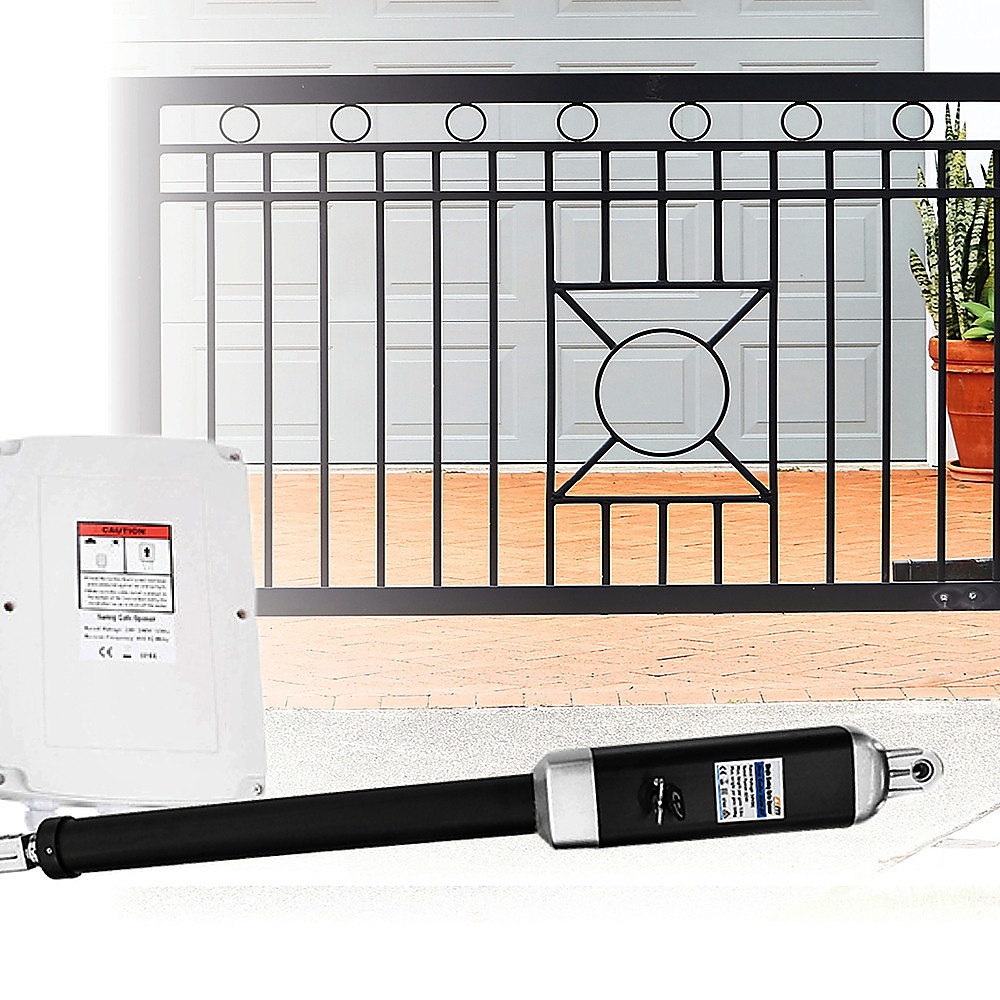

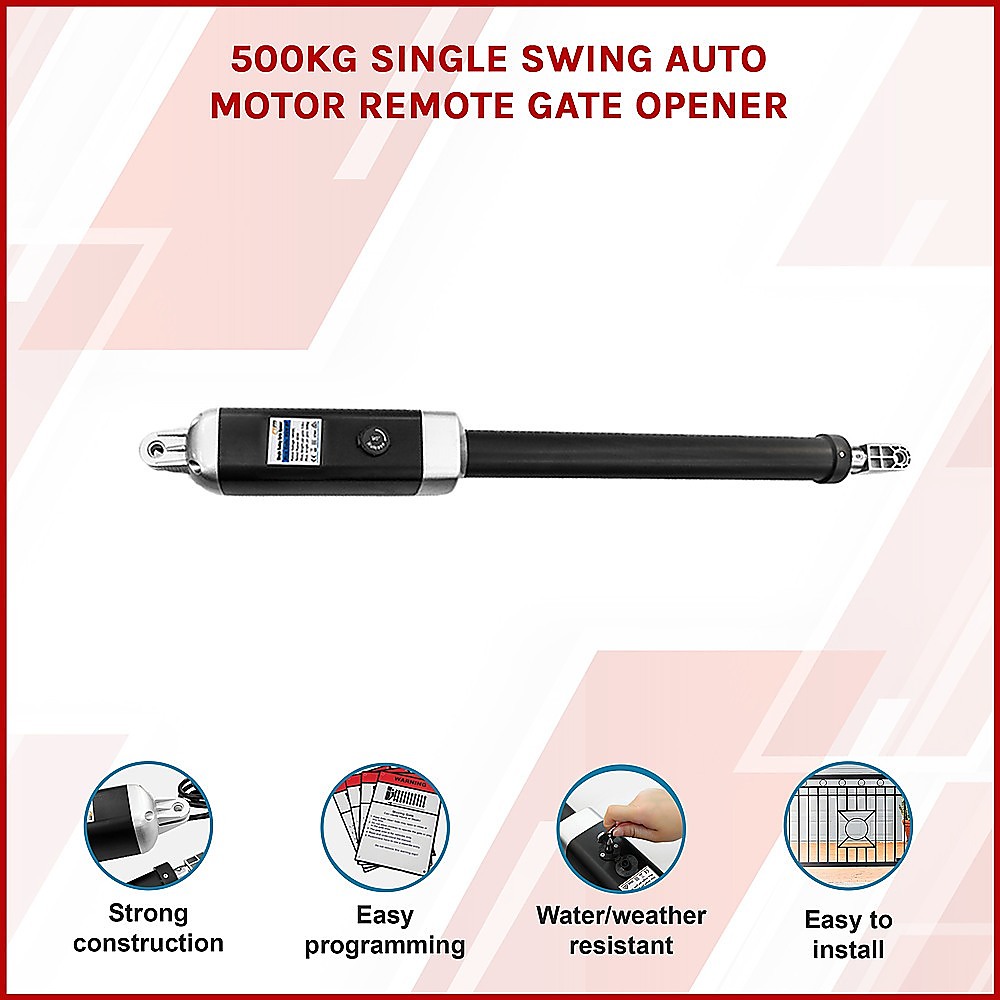

500KG Single Swing Auto Motor Remote Gate Opener

This automatic swing gate opener is designed to provide a safe, durable, and stylish solution for controlling gate access. It features powerful motors and a robust construction, making it suitable for various residential and commercial applications.

Features:

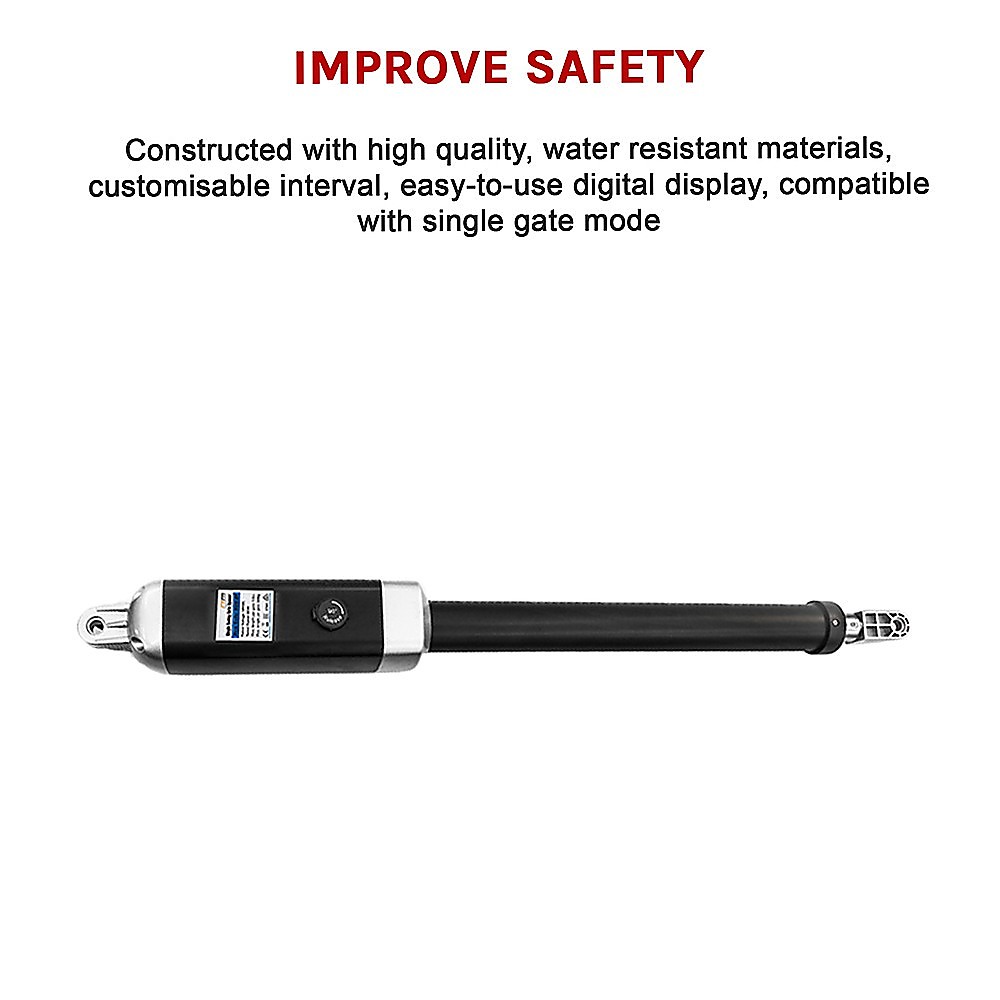

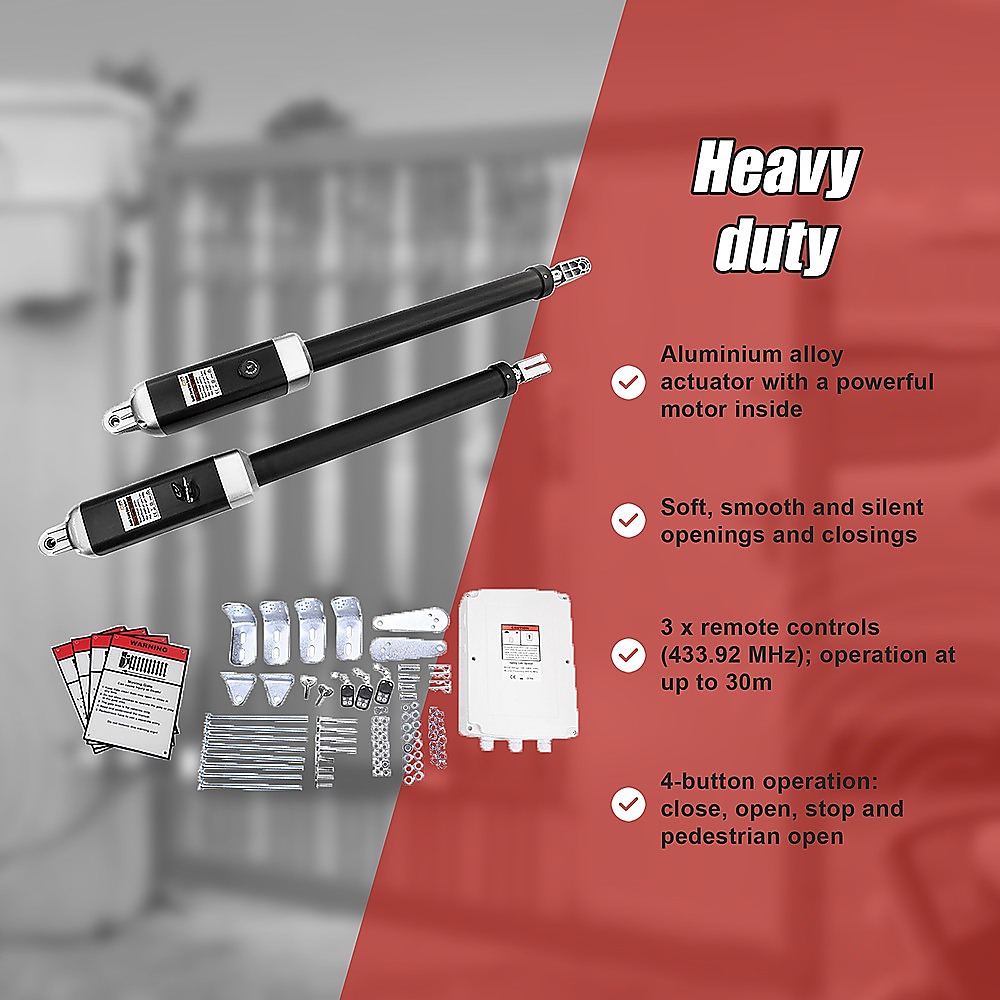

• Aluminium alloy actuator with dual motors

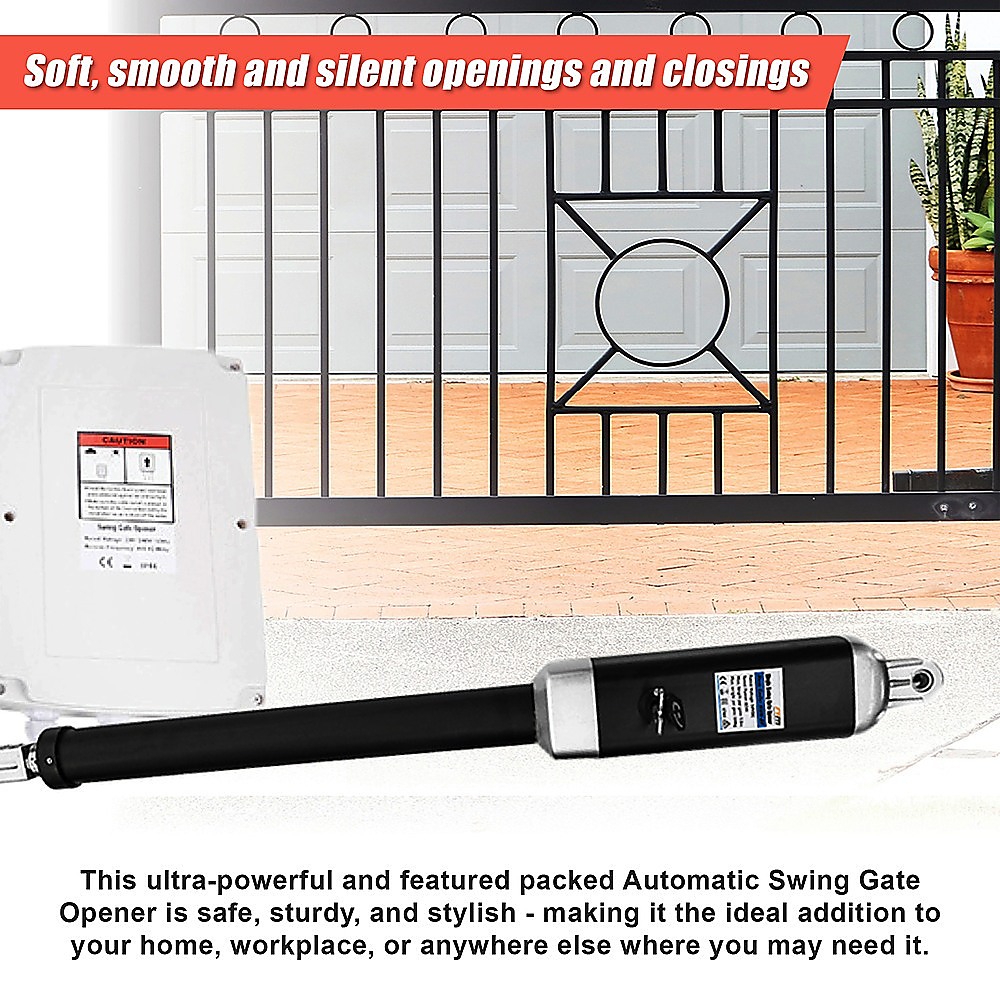

• Quiet and smooth operation for opening and closing
• Obstruction detection with stop and reverse function, customizable sensitivity
• Auto-close timing adjustable from 0 to 99 seconds
• Over-current protection for safety
• Manual operation available during power outages

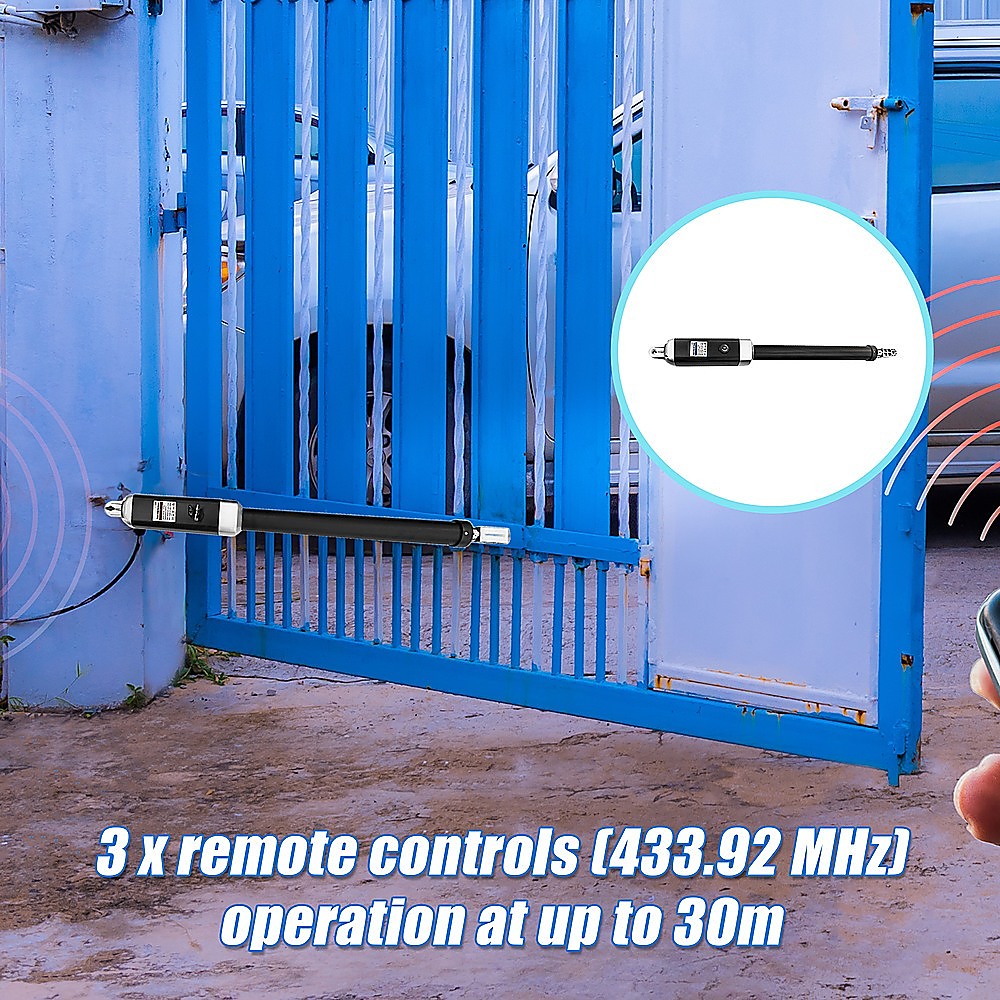

• Includes three remote controls with operation range up to 30 meters
• Four-button remote for open, close, stop, and pedestrian access
• Digital control board with status indicators and menu settings
• Waterproof and dustproof control box
• Complete with user manual and installation hardware

Specifications:

• Voltage: 24V DC
• Gate limit system: Intelligent Positioning System
• Actuator speed: 16mm per second
• Actuator travel distance: 385mm

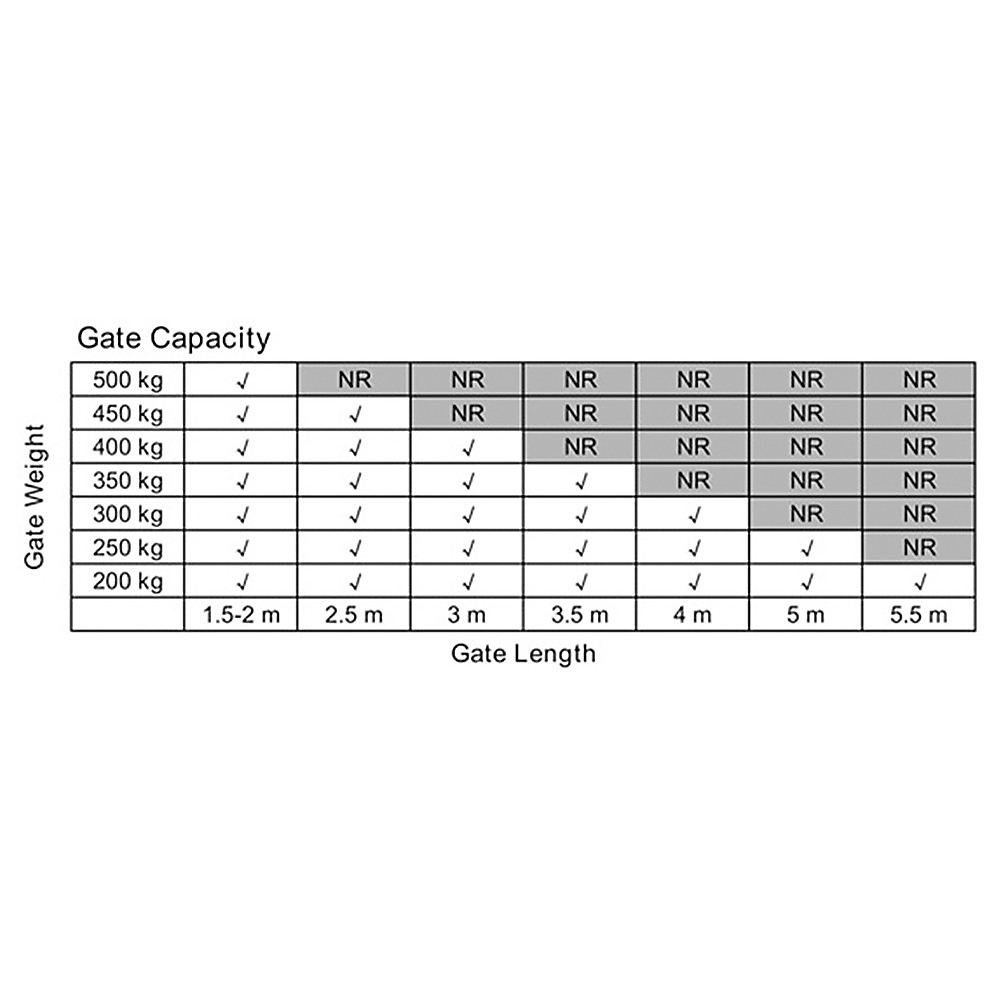

• Maximum gate weight: 500kg
• Maximum gate width: 5.5 meters (supports gates up to 200kg)
• Rotation time for 90 degrees: 8 to 12 seconds
• Maximum opening angle: 0 to 110 degrees
• Operating temperature range: -25??C to +55??C
• Protection class: IP44
• CE and EMC approved

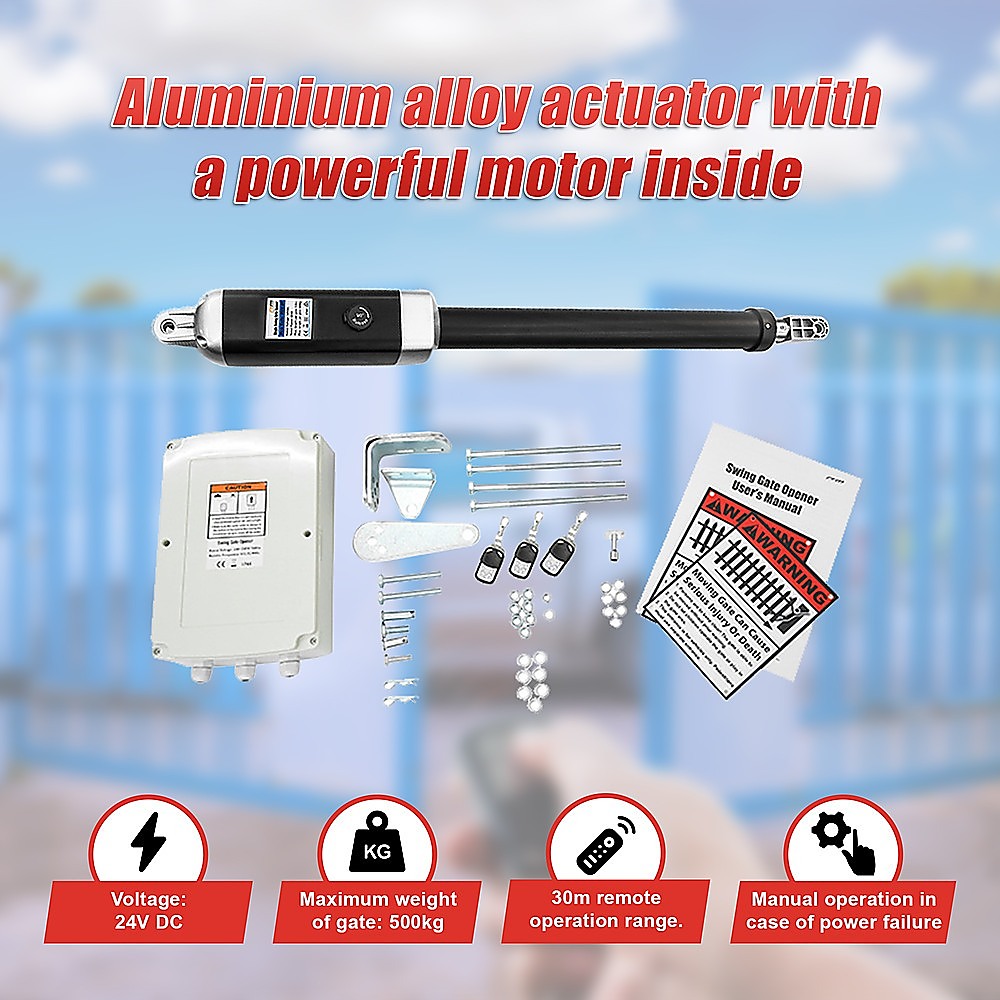

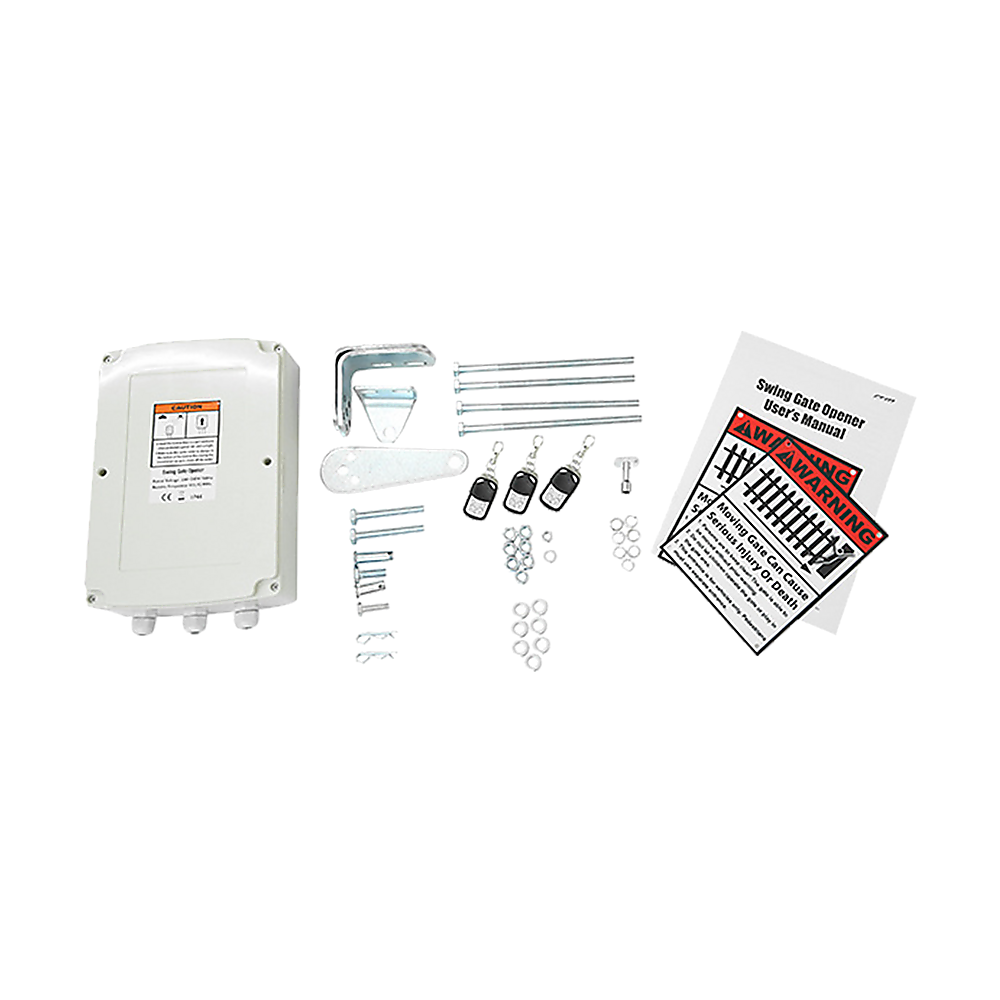

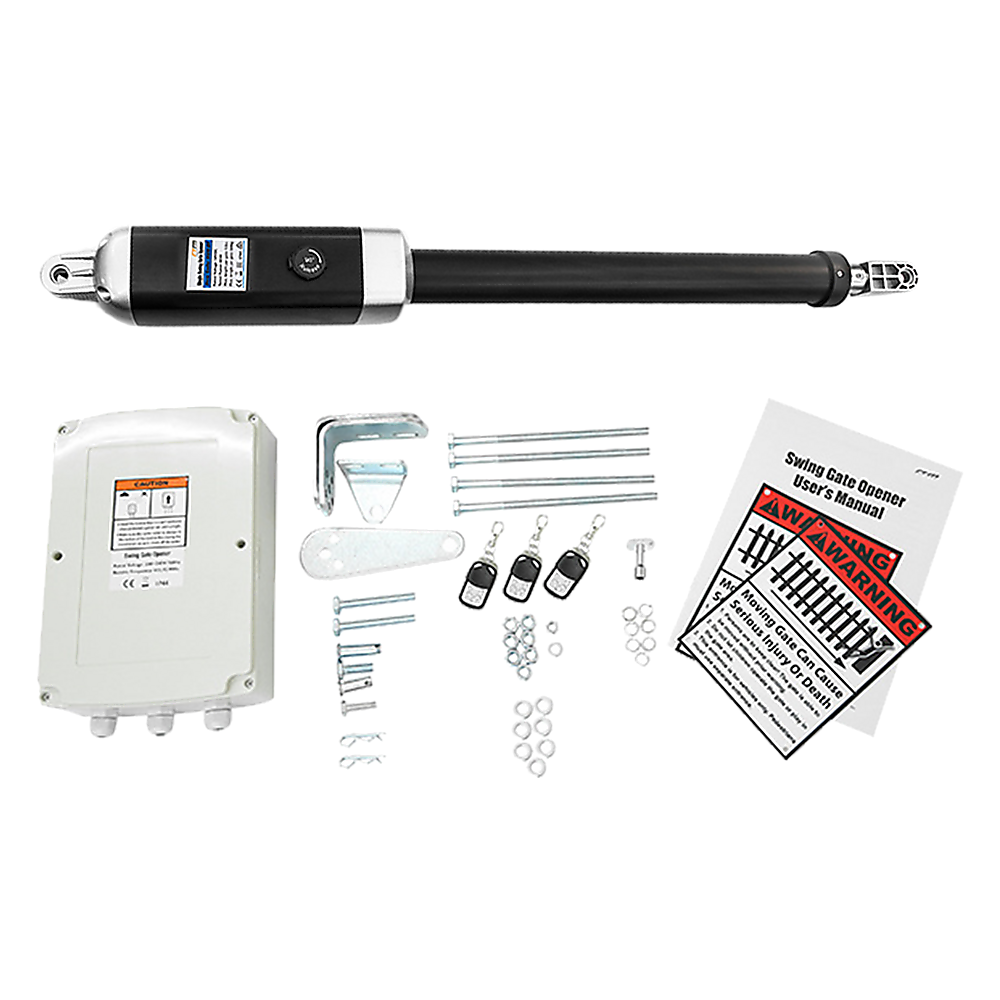

Package Content:

• Single swing gate opener motor
• Remote controls
• Digital control board
• Installation hardware
• User manual
