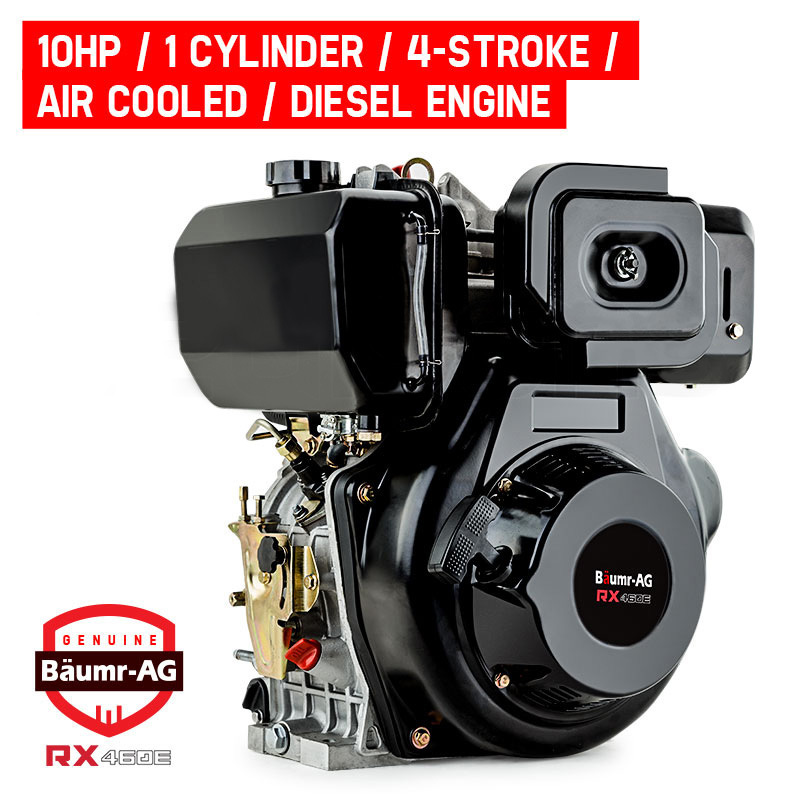

Baumr-AG 10HP Diesel Stationary Engine Electric Start OHV Replacement Motor

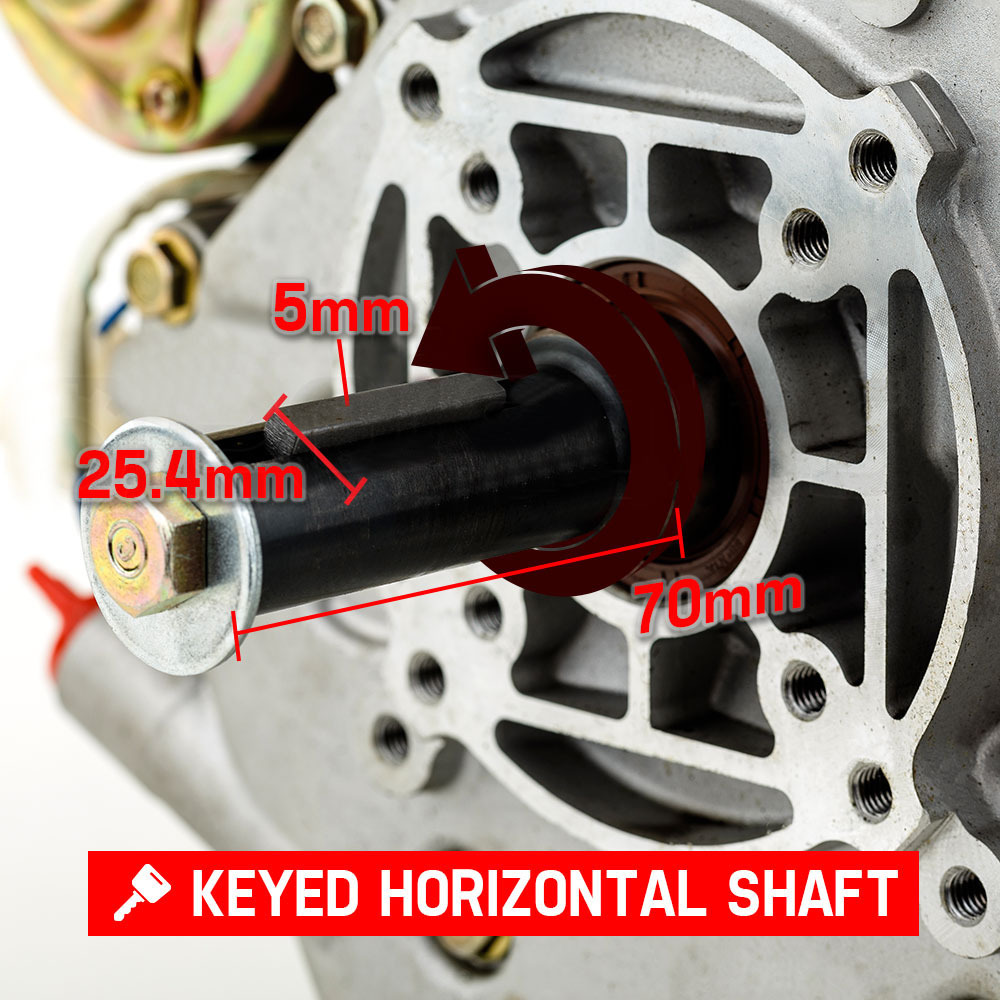

This 10HP diesel stationary engine is suitable for industrial, agricultural, and domestic applications. It is designed to replace tired engines in machinery such as generators, water pumps, air compressors, log splitters, high-pressure cleaners, go-karts, and various construction and agricultural equipment. The engine features a standard shaft and footprint, compatible with many existing models, and includes low oil shut-down for safety and durability.

Features

• Reliable and consistent power output with a high power-to-displacement ratio
• Purpose-built components for durability and longevity
• Good fuel economy and low oil consumption
• Air-cooled, 4-stroke diesel engine with electric start
• Low oil shut-down system for engine protection

Specification

• Engine Type: 1-cylinder, 4-stroke, air-cooled diesel
• Bore x Stroke: 86 x 72 mm
• Displacement: 460 cc
• Maximum Power Output: 10 HP (7.4 kW)
• Rated Power Output: 9 HP (6.6 kW)
• Speed: 3600 rpm

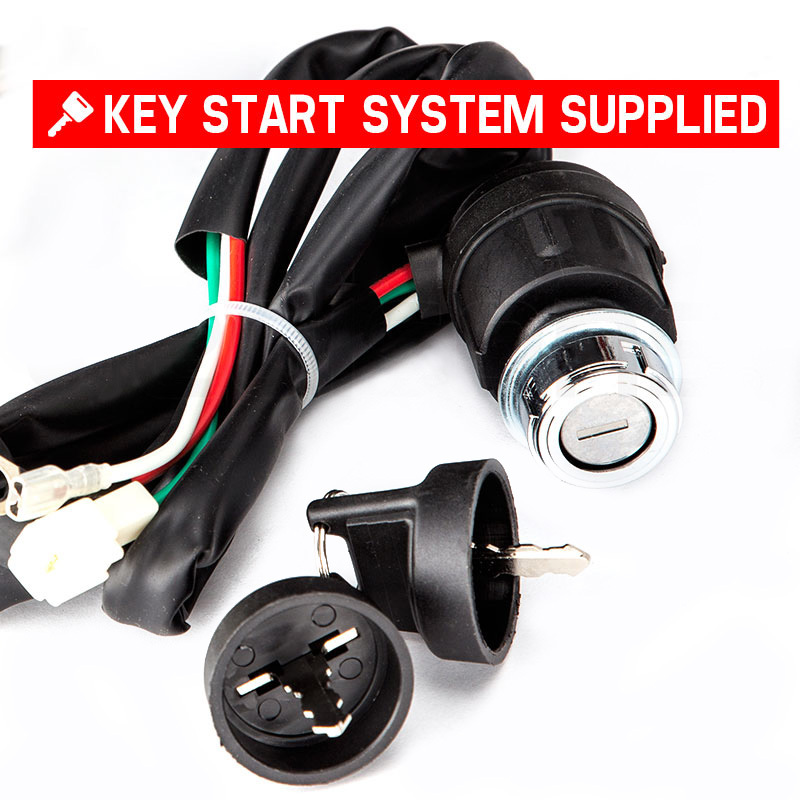

• Starting System: Electric
• Engine Oil Capacity: 1.65 liters

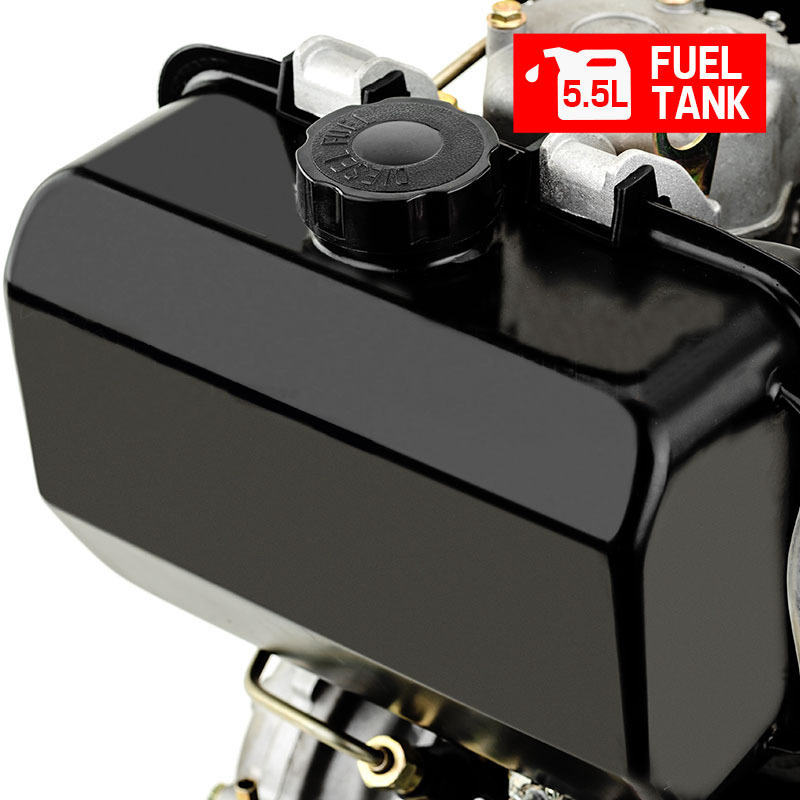

• Fuel Capacity: 5.5 liters
• Fuel Type: Diesel 0# – 10# – 20#
• Minimum Fuel Consumption: 265 g/kW/h
• Lube Oil Type: CD Grade or SAE 10W-30 / 15W-40
• Cooling System: Air-cooled
• Lubrication System: Pressure fly
• Combustion System: Direct injection

Package Content

• 1x stationary engine
