Car High to Low Frequency Converter Auto Stereo Line Speaker Level Adapter TD22

This high-to-low frequency converter is designed to transform high-level audio signals from car speakers into low-level audio signals, making it suitable for use with external power amplifiers and subwoofers. It offers both passive and active options and features an integrated delay system to eliminate startup “pop” sounds, providing a smoother audio experience.

• Efficient Signal Conversion: Converts high-level audio output from speakers to a low-level input, ideal for amplifiers and subwoofers.
• Delay Function: Built-in delay eliminates start-up noise, reducing “pop” sounds when turning on the system.
• Versatile Compatibility: Works seamlessly with various car audio systems lacking dedicated low-frequency output.
• Direct Control: When the stereo is turned on, this converter powers the amplifier, ensuring synchronized operation and minimizing current shock.
• Enhanced Audio Clarity: Minimizes audio loss common with standard converters, maintaining audio integrity.

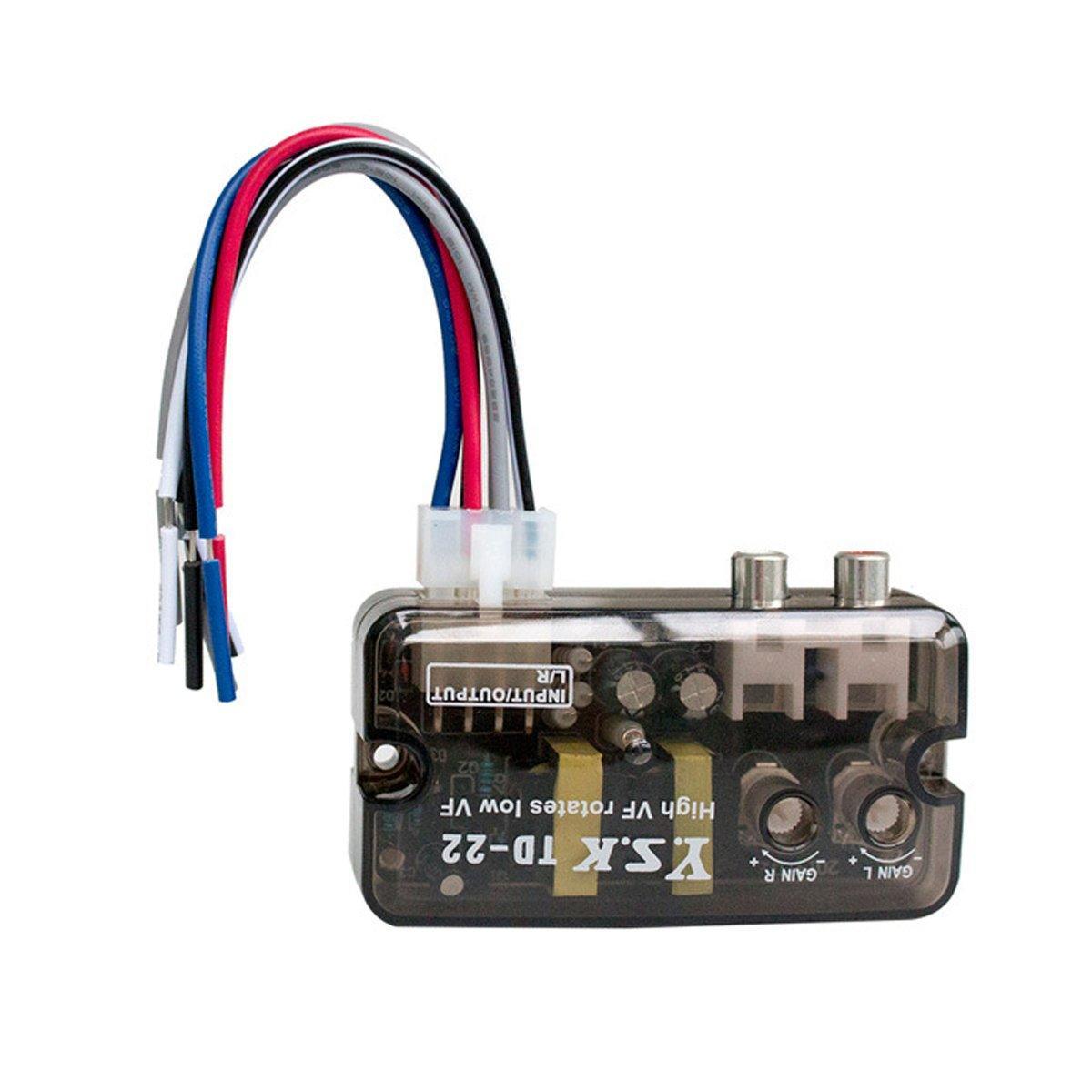

• Model: TD-22 High-to-Low Frequency Converter

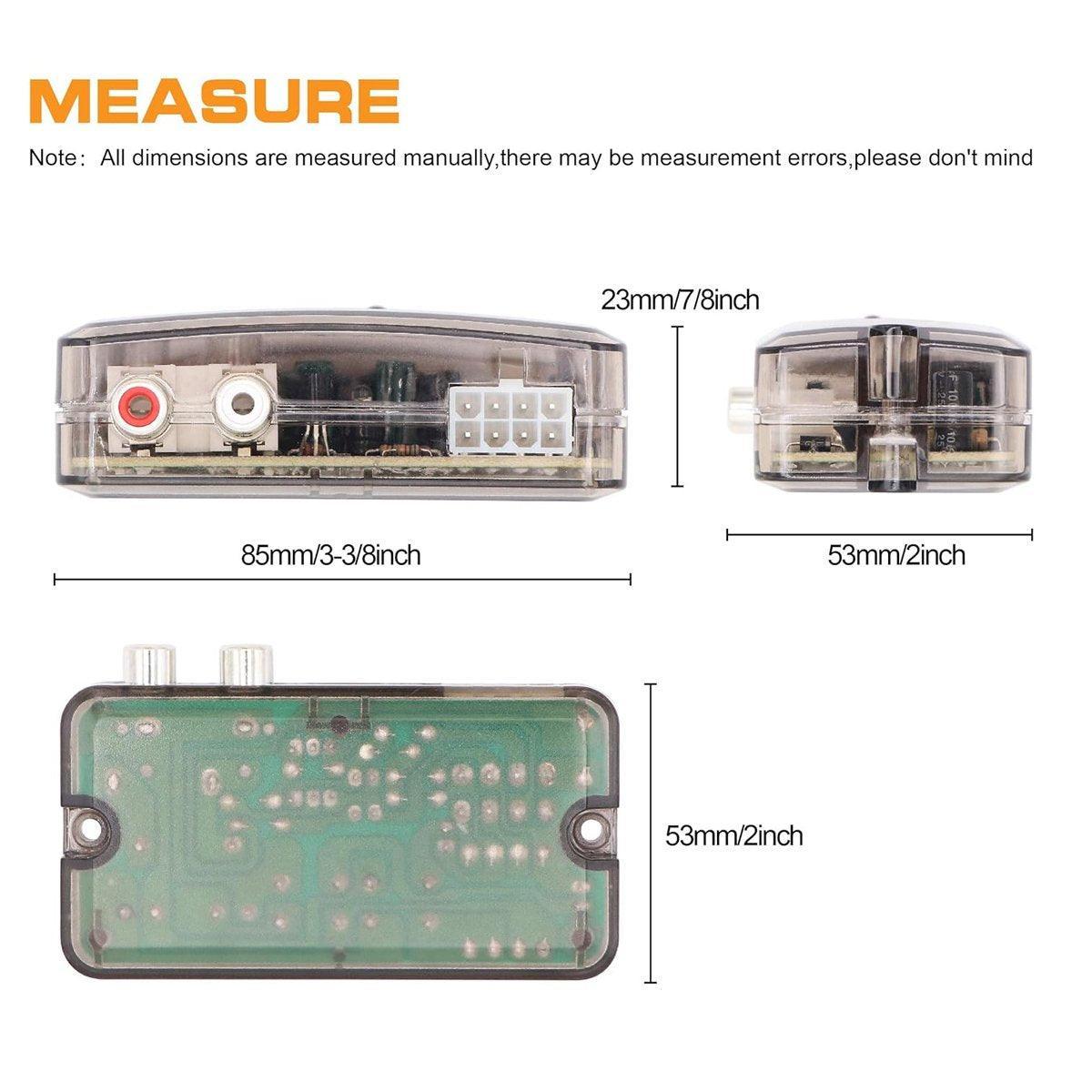

• Dimensions: 85mm x 53mm x 23mm

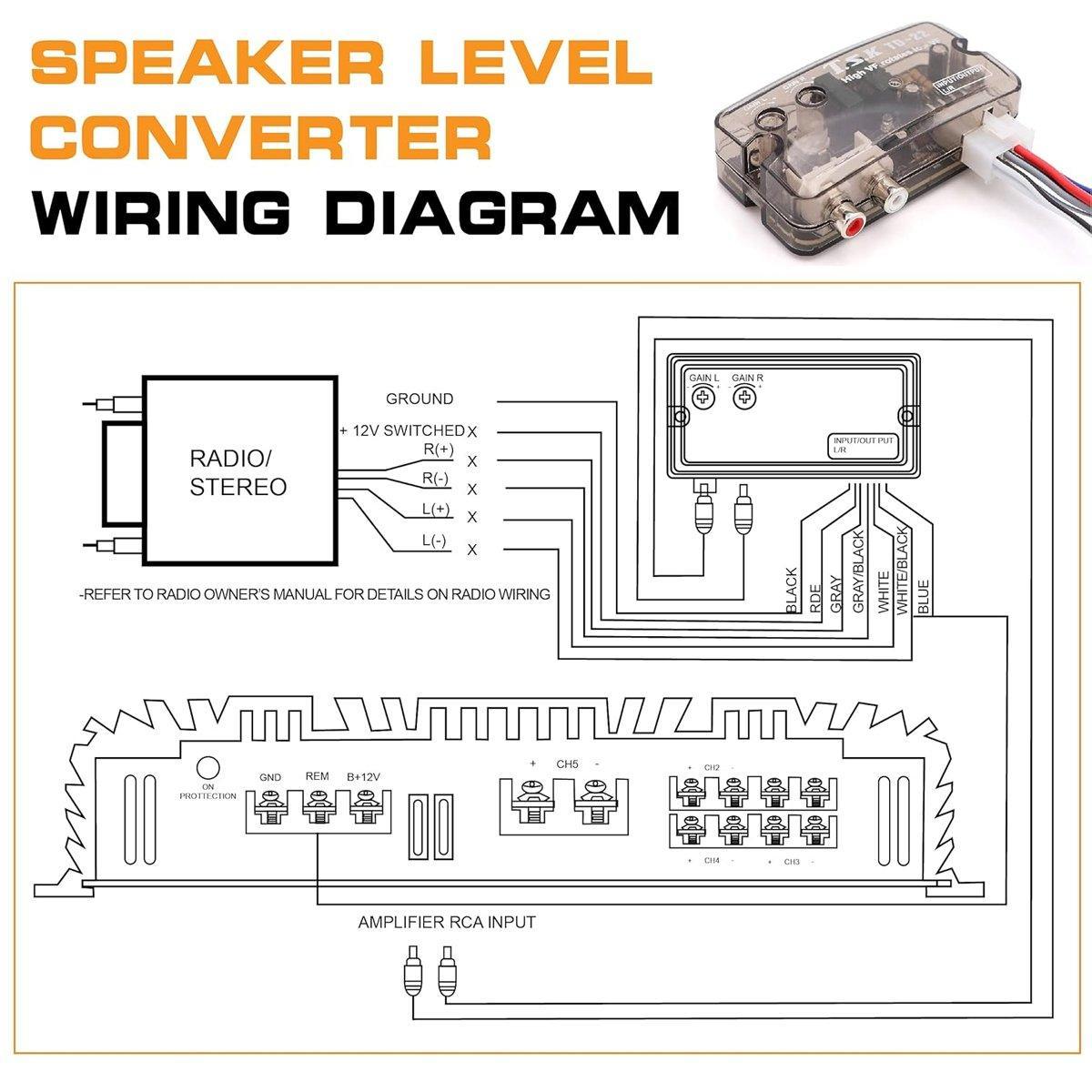

• Connections:
  • White: Left Speaker Positive
  • Black-White: Left Speaker Negative
  • Gray: Right Speaker Positive
  • Gray-Black: Right Speaker Negative
  • Black: Ground
  • Red: 12V Power (can be connected in parallel with the subwoofer??s 12V power line)
  • Blue: REM Control (connect to subwoofer??s REM terminal)
• Power Supply: 12V
• Material: High-quality plastic casing with transparent design

• Package Content:
  • 1 x TD-22 High-to-Low Frequency Converter
