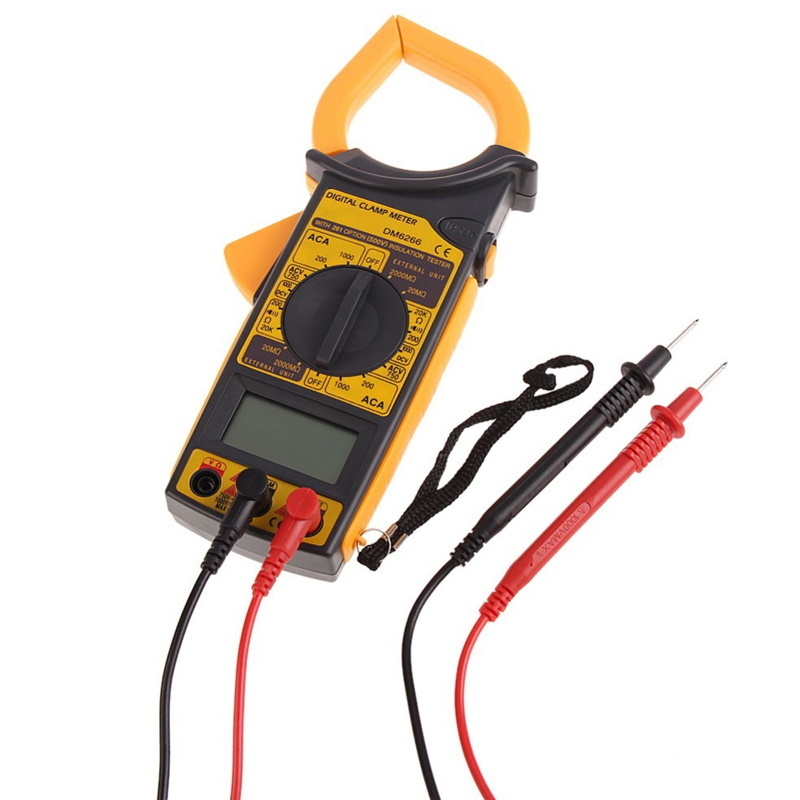

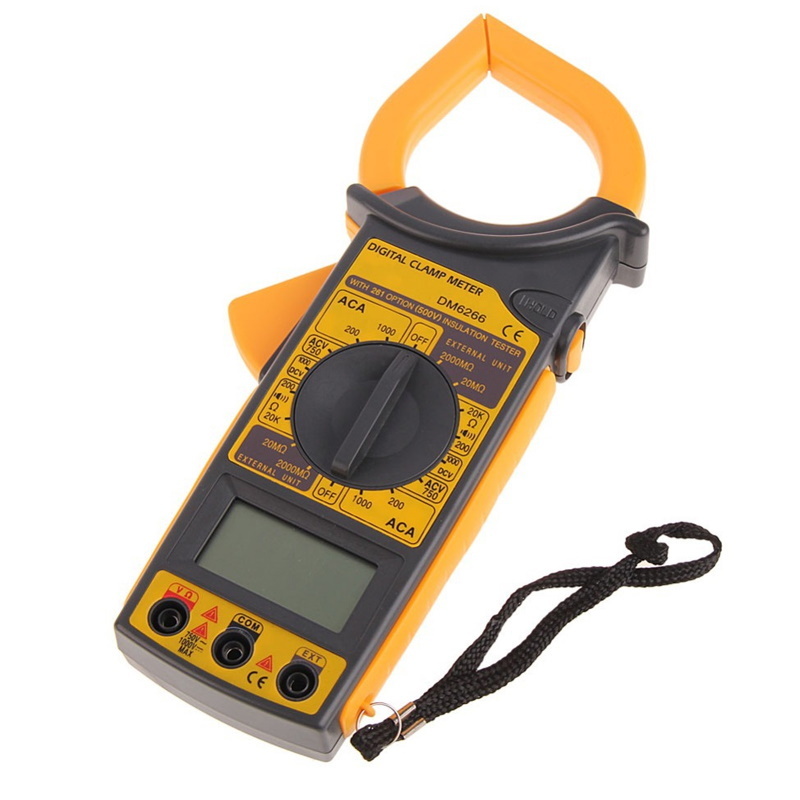

Digital Clamp Meter AC/DC Voltage Resistance Frequency DM6266 – Batteries Incl.

This digital clamp meter offers a comprehensive range of measurement functions including AC and DC voltage, resistance, frequency, and temperature. Its portable design allows for easy one-hand operation, making it suitable for various electrical testing tasks. The device features overload protection, a clamp with double insulation, and non-contact measurement for enhanced safety and reliability.

• Measures AC current, AC voltage, DC voltage, resistance, frequency, and temperature
• Overload protection for safe operation
• Portable and easy to operate with one hand
• Clamp with double insulation protection and anti-jamming features
• Non-contact measurement for improved safety

Specifications:

• DC voltage: 1000V with 0.8% accuracy plus 2 digits
• AC voltage: 750V with 1.2% accuracy plus 4 digits
• AC current: 200A / 1000A with 2.5% / 3.0% accuracy plus 5 digits
• Resistance: 200?? / 20k?? with 1.0% accuracy plus 1 digit
• Continuity alarm and low voltage display
• Data hold function
• Input impedance: 10M??
• Sampling frequency: 3 times per second
• AC frequency range: 40-400Hz
• Manual range selection
• Maximum display: 1999

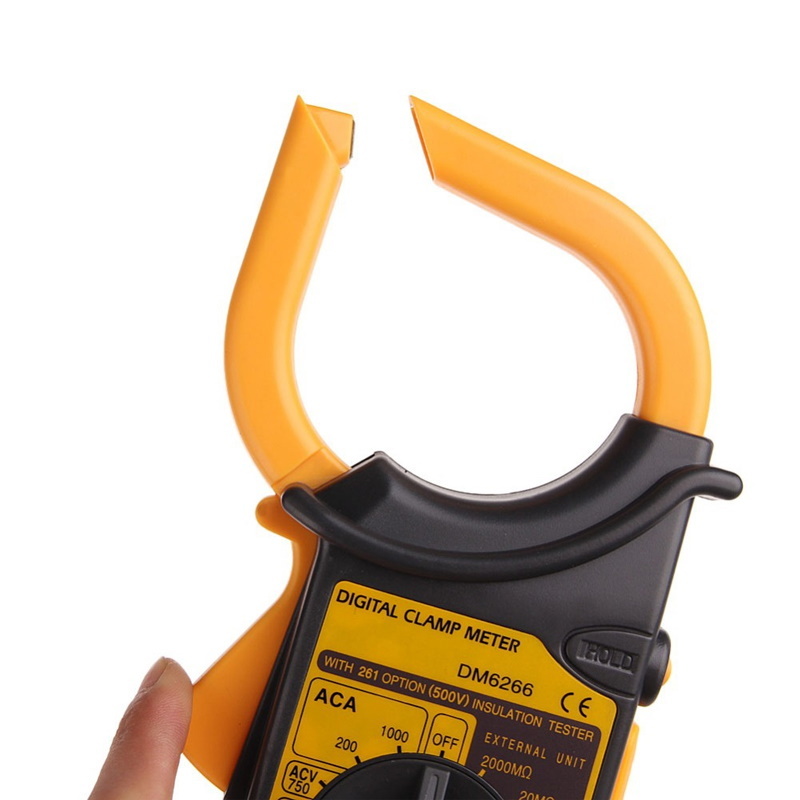

• Jaw opening: 50mm
• Power supply: 9V battery (6F22)
• Color: dark gray

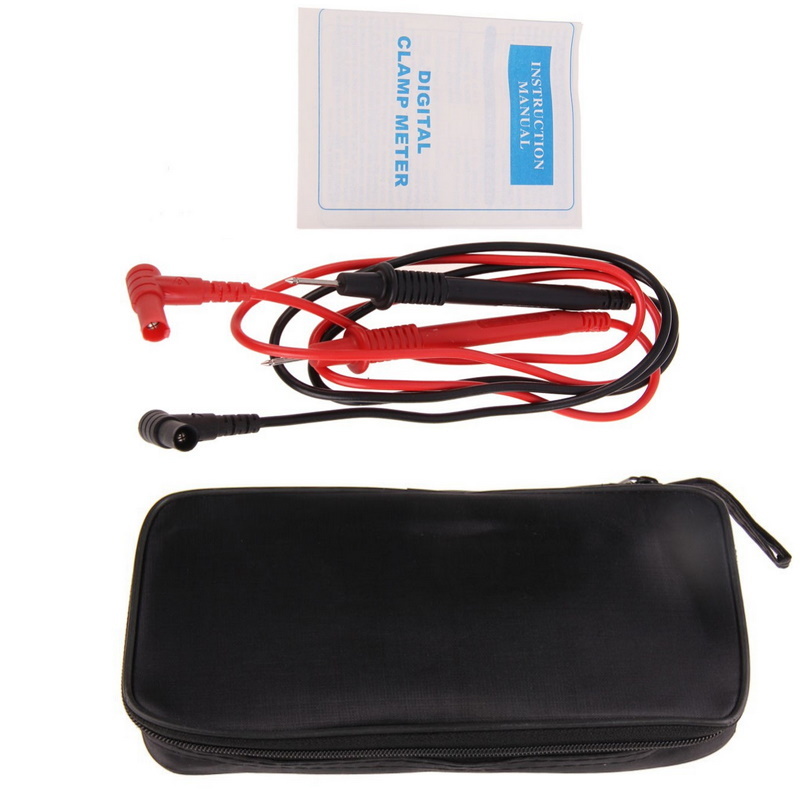

Package Content:

• Digital clamp meter
• 9V battery
