Electric Sliding Gate Opener 800KG Keypad 4M

This electric sliding gate opener is designed for easy and efficient gate control, supporting gates up to 800kg and 4 meters in length. It features smooth start and stop functions, automatic obstruction detection with reversing capability, and an emergency release for power outages. The system includes programmable auto-close settings and weather-resistant control components, providing reliable operation in various environments. Remote controls are included for convenient access.

• Electric gate opener suitable for gates weighing up to 800kg and 4 meters long
• Features gentle start and stop functions
• Automatically stops or reverses upon obstruction detection

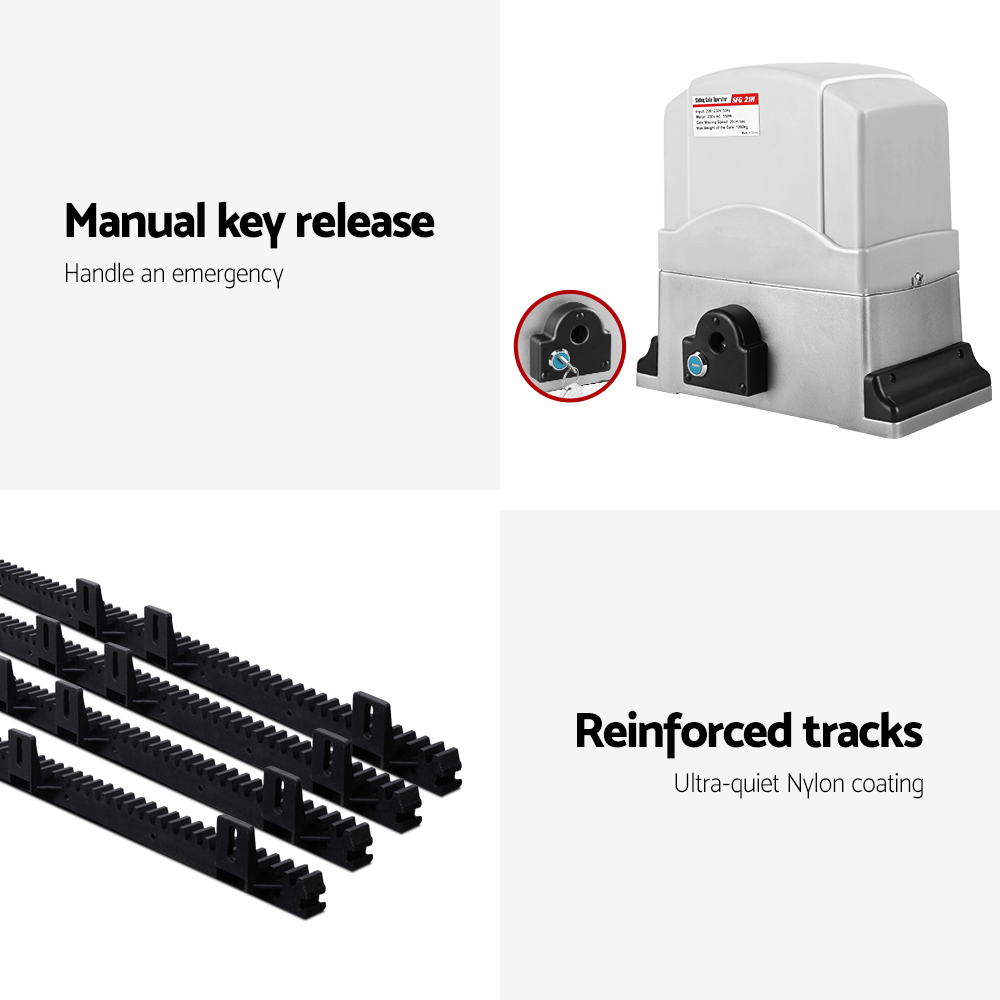

• Includes an emergency release key for power failure situations
• Programmable auto-close function with adjustable timing

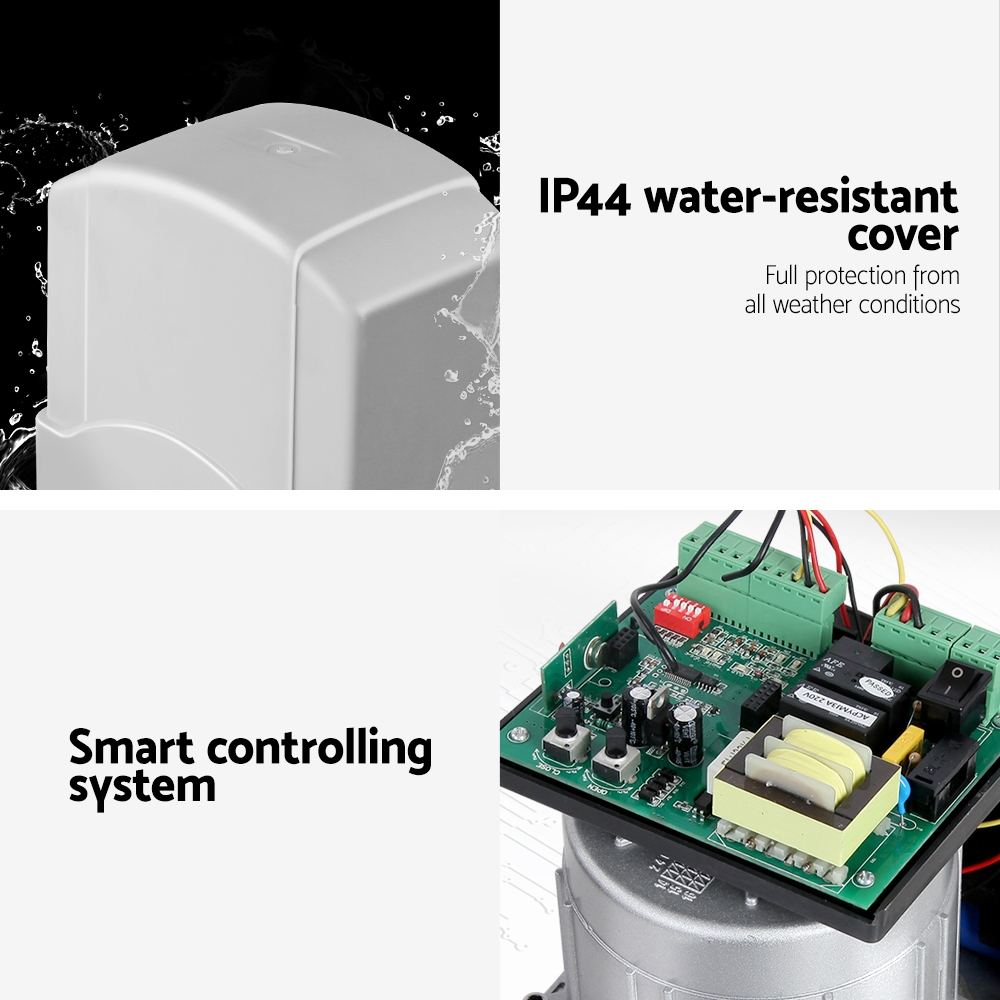

• Weather and dust resistant control box
• Comes with three programmable remote controls
• Compatible with steel, wood, vinyl gates in panel, tube, or chain-link styles

Specifications:

• Motor voltage: 230VAC

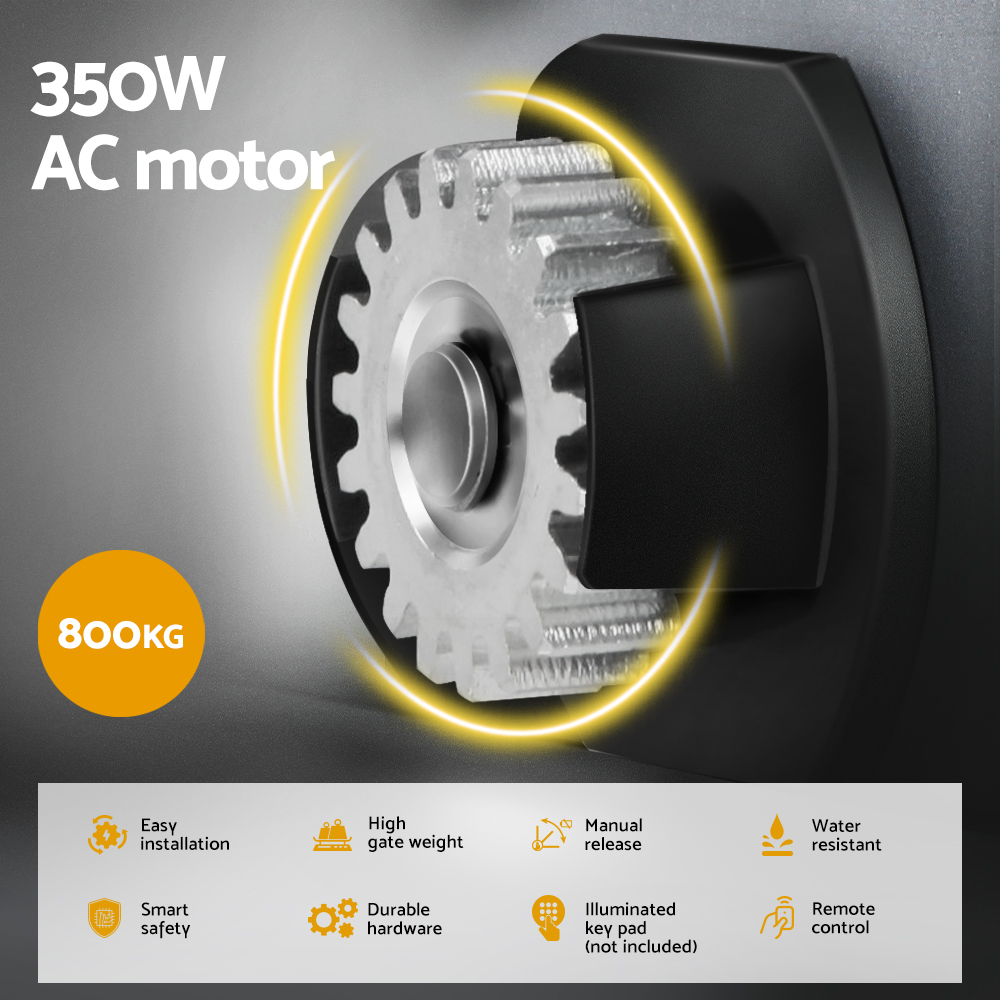

• Power: 350W
• Rail length: 4 meters
• Recommended gate weight: 800kg
• Gate moving speed: 20mm/s
• Operating temperature: -22??C to +55??C
• Maximum torque: 16Nm
• Protection class: IP44

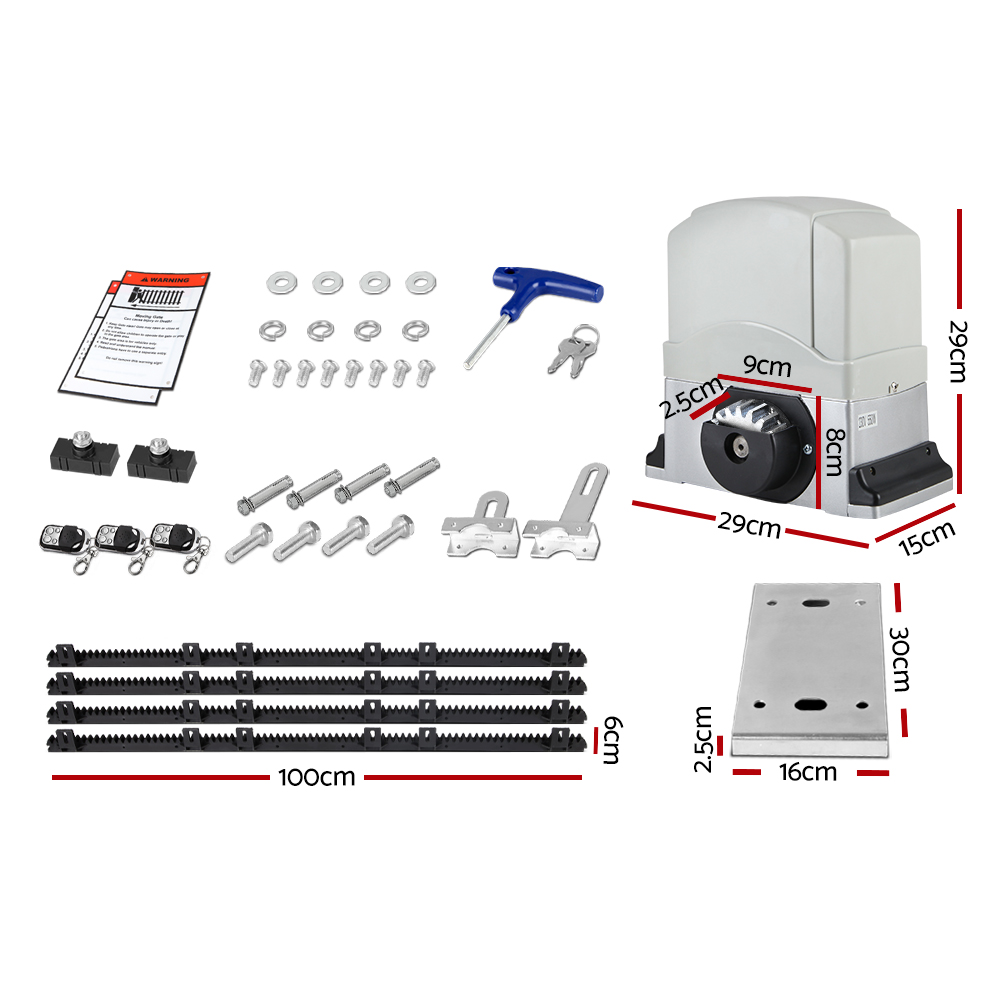

• Dimensions: 29 x 29 x 15 cm
• Assembly required: Yes

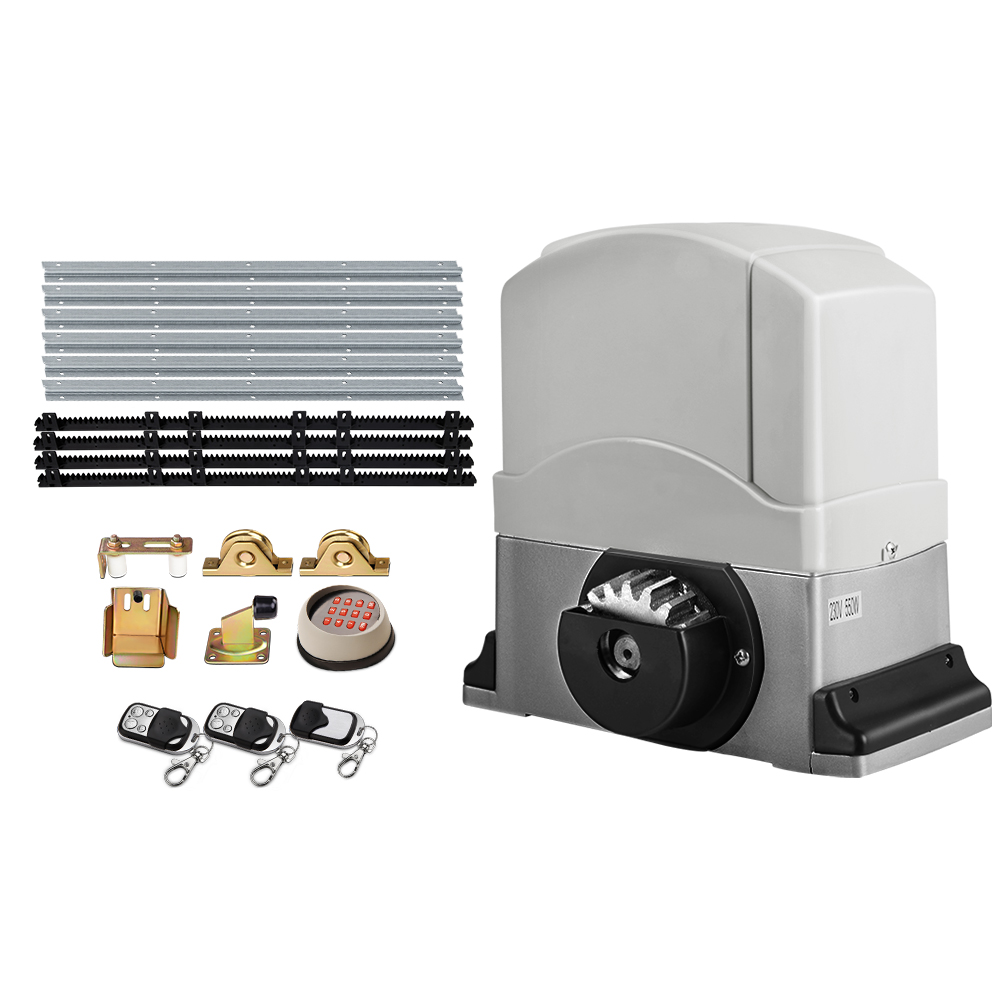

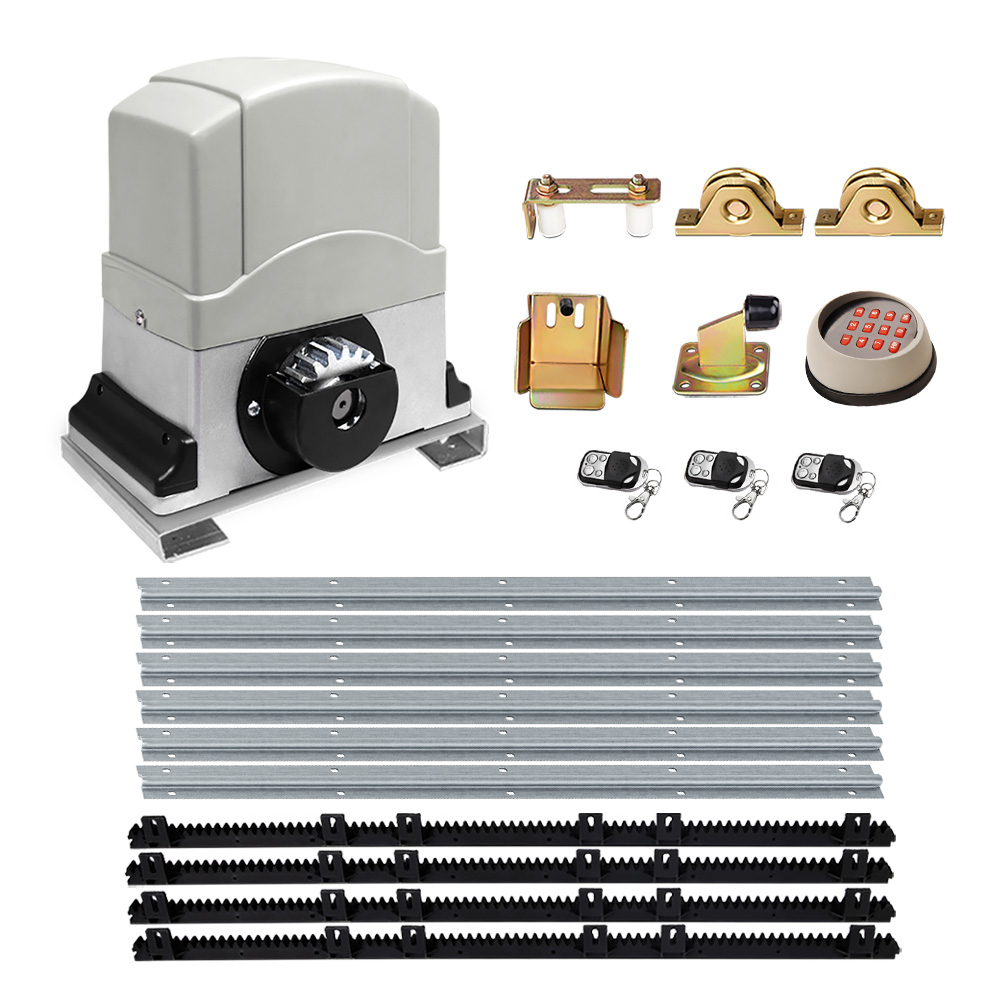

Package Content:

• Gate opener unit
• Remote controls (x3)
• Installation accessories
• 4 meters rail
• User manual
• 1 meter galvanized ground track (x6)
• 90mm U groove bearing wheels (x2)
• Upper guide bracket with two nylon rollers
• Gate end stop/catcher (93mm opening)
• Wireless keypad
• Gate stopper
