Giantz 60A MPPT Solar Charge Controller Auto 12V/24V/36V/48V Battery Regulator

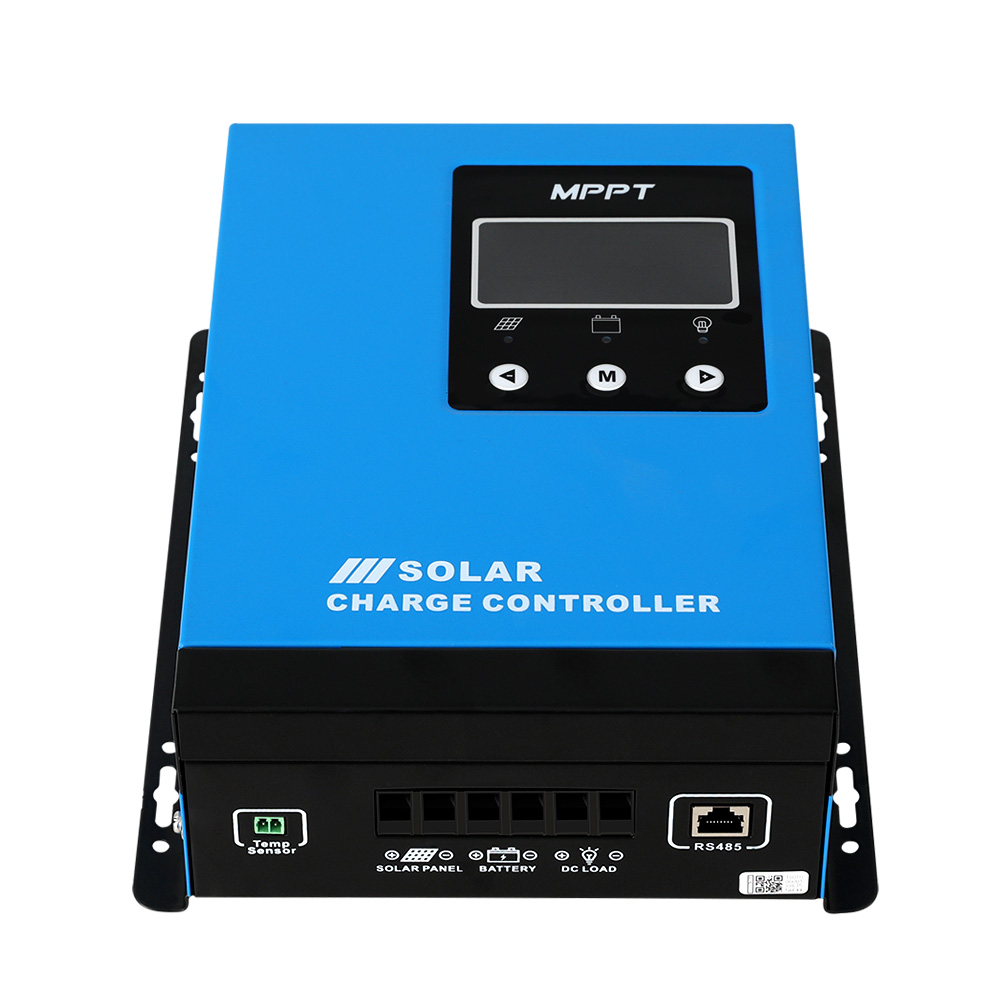

This solar charge controller is designed to protect batteries from overcharging and optimize charging efficiency. It features advanced MPPT technology with high tracking accuracy, multi-stage charging, and intelligent protection functions. The device is suitable for various battery types and includes a user-friendly backlit LCD display for easy operation. Its robust construction with an iron case heat sink and cooling fan ensures effective heat dissipation. Communication ports enable fast and accurate device interaction, and the controller automatically detects system voltages for seamless setup.

• Advanced MPPT technology with up to 99% tracking efficiency
• Supports 12V, 24V, 36V, and 48V systems automatically
• Multi-stage charging to maximize battery health and lifespan
• Backlit LCD display for easy monitoring and control
• Full protection against overcharge, reverse polarity, overload, and overheating
• Cooling fan and heat sink for effective thermal management

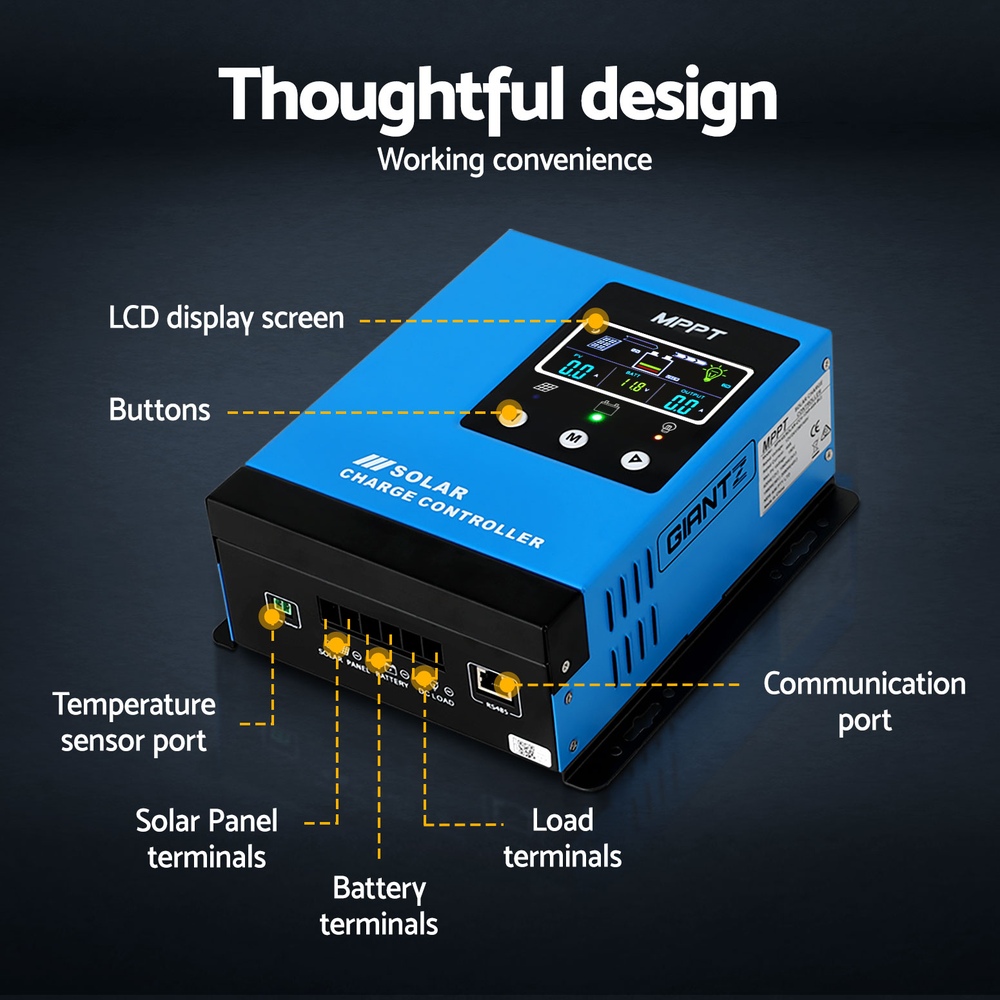

• Communication ports including RS485 and RJ45 for device integration
• Compatible with various battery types including GEL, SLA, FLD, USR, and lithium batteries

Specifications:

• Rated Charge Current: 60A
• System Voltage: 12V, 24V, 36V, 48V (automatic detection)
• Maximum PV Input Power: 780W at 12V, 1560W at 24V, 2340W at 36V, 3120W at 48V
• Maximum PV Input Voltage: 138V at 25??C
• Terminal Size: Up to 3 AWG
• Operating Temperature Range: -20??C to +55??C
• Storage Temperature Range: -20??C to +80??C
• Humidity: 10% to 90% (non-condensing)
• Weight: 3.05 kg

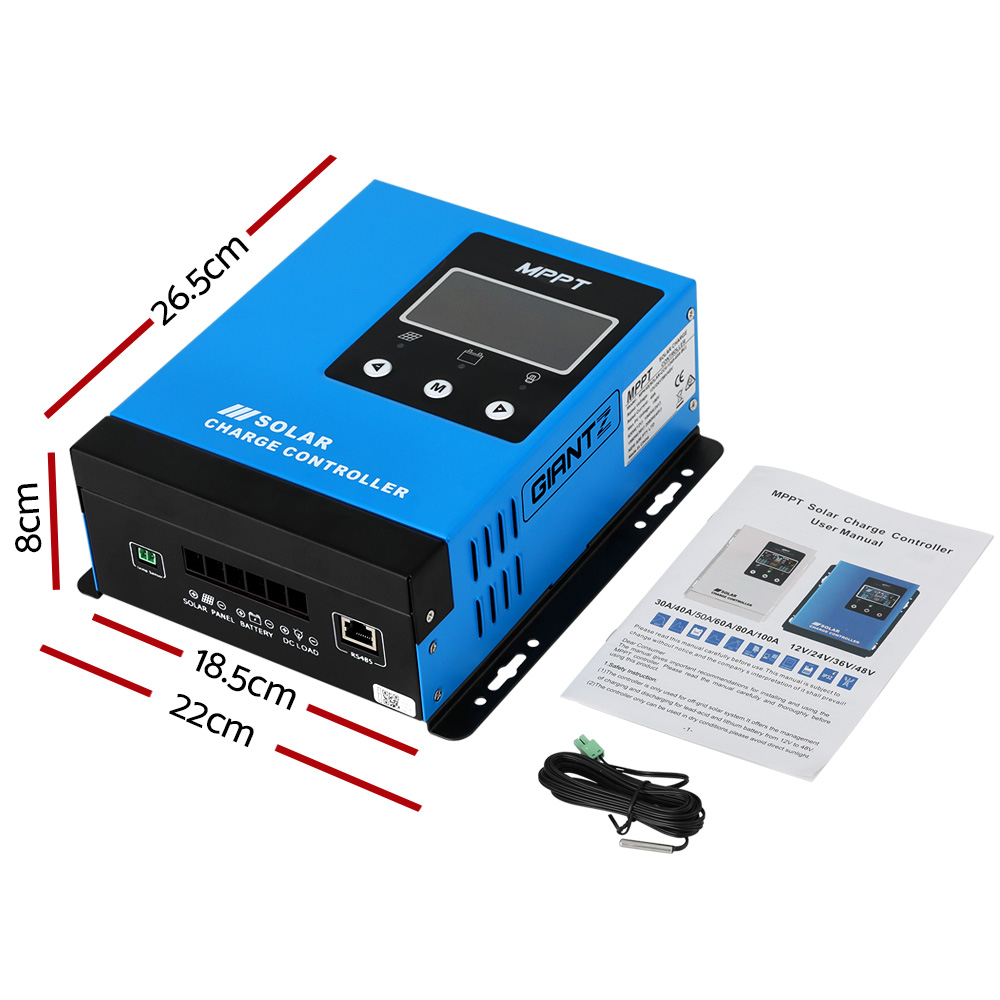

• Dimensions: 22cm x 8cm x 26.5cm

Package Content:

• Solar charge controller
• Temperature sensor
• User manual
