Seasonic Core GX-750 ATX3 80 Plus Gold Full Modular 750W PSU (SRP-CGX751-A5A32SF)

This power supply offers reliable performance with a fully modular design and high efficiency certification. It is suitable for a wide range of PC builds, providing stable power delivery and quiet operation through advanced fan control technology.

• 80 PLUS Gold certified for high energy efficiency

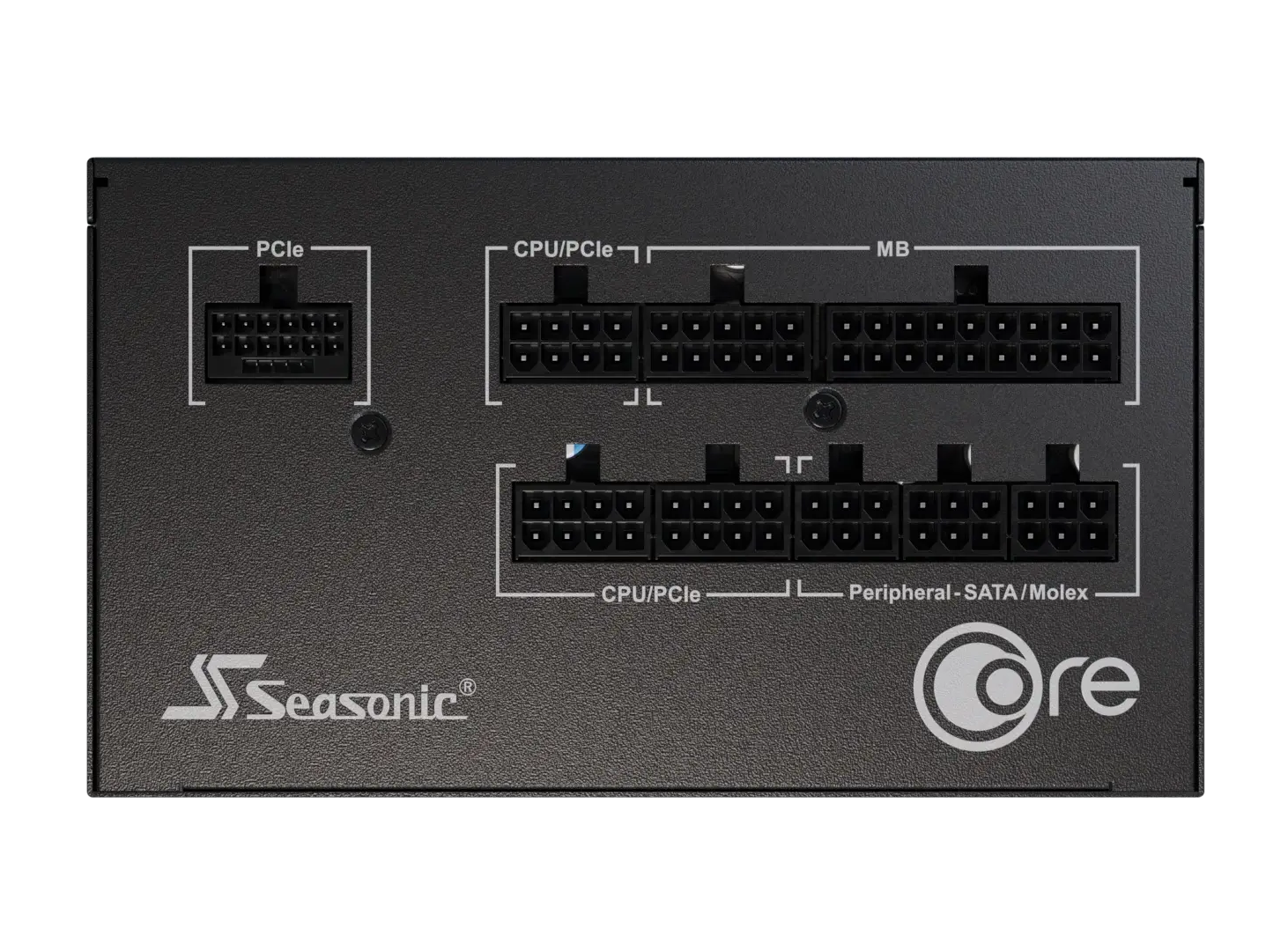

• Fully modular cables with braided pattern for neat installation
• 120 mm fluid dynamic bearing fan with smart and silent control
• Multiple safety protections including OPP, OCP, OTP, OVP, SCP, and UVP
• Supports a wide input voltage range and environmental standards
• Designed for durability with a lifespan of 25,000 hours at 40??C

Specifications include an ATX/EPS form factor, operating temperature range of 0 to 50??C, and an MTBF of 100,000 hours excluding the fan. The power supply provides a total continuous power output of 750W, with multiple rails for different voltage outputs, ensuring stable power delivery for demanding systems.

• Input voltage: 100 V – 240 V, 10 – 5 A, 50/60 Hz
• DC output rails: +3.3 V, +5 V, +12 V, -12 V, +5 VSB
• Maximum power per rail: +3.3 V and +5 V at 20 A, +12 V at 62 A
• Total power output: 750 W

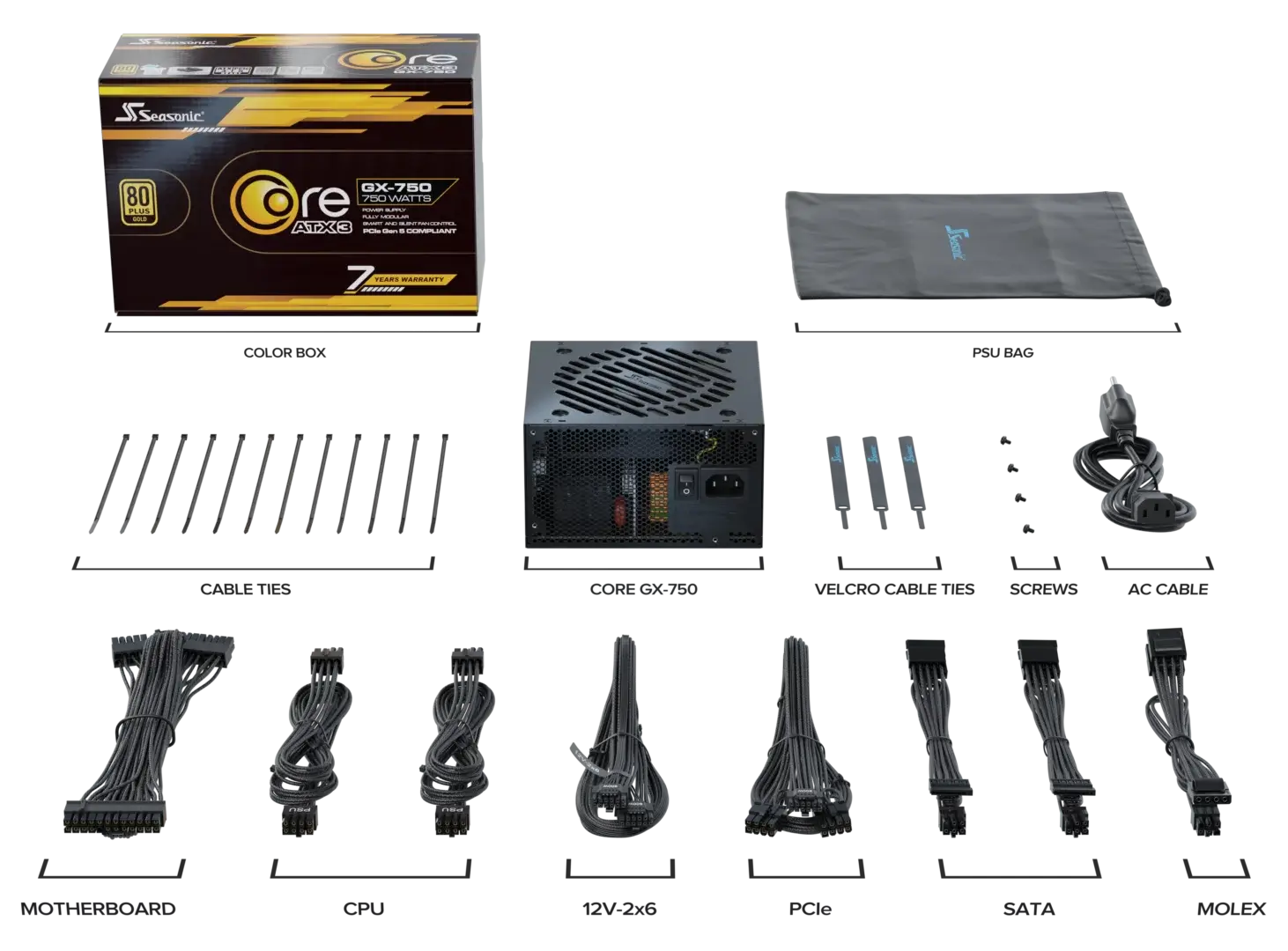

Package Content includes the power supply unit and all necessary modular cables with braided black design for easy installation and cable management.
