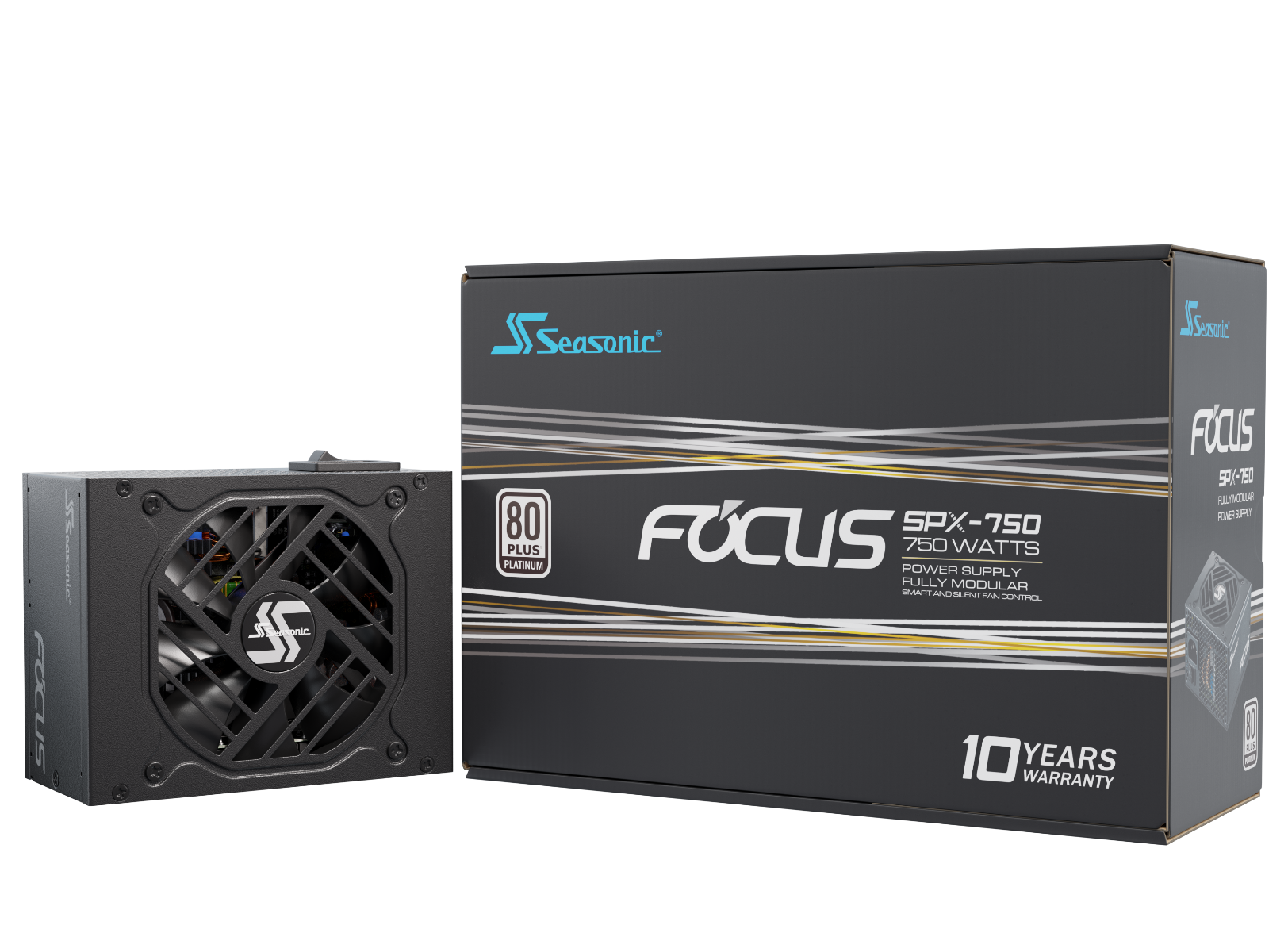

Seasonic FOCUS SPX-750 750W Fully Modular PSU

This power supply unit offers reliable and efficient power delivery with a compact design suitable for small form factor builds. It features full modular cabling for easy installation and cable management, along with high-quality components to ensure stability and durability. The unit is designed to operate quietly and efficiently, making it ideal for high-performance computing setups.

• 80 PLUS Platinum certified for high efficiency
• Compact SFX size with dimensions of 125mm x 100mm x 63.5mm
• Tight voltage regulation for stable power output
• Cable-free connection design for simplified setup
• Fanless operation until 30% load for silent performance
• SFX to ATX expandability for versatile compatibility
• Gold-plated connectors for enhanced durability and conductivity

• Form factor: Intel SFX 12 V / ATX 12 V
• Dimensions: 100 mm (L) x 125 mm (W) x 63.5 mm (H)
• Fan size: 92 mm with hybrid control and fluid dynamic bearing
• Life expectancy: 50,000 hours at 40??C
• Fully modular flat black cables
• Operating temperature: 0 – 50??C with derating above 40??C
• MTBF: 100,000 hours at 25??C
• Input voltage: 100 V – 240 V, 10 – 5 A, 50/60 Hz
• Protection features: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and environmental certifications including CE, CB, RoHS, WEEE, and others
• Warranty: 10 years

• Maximum power output: 750 W
• DC output rails: +3.3 V, +5 V, +12 V, -12 V, +5 VSB
• Maximum current: 20 A on +3.3 V and +5 V rails, 62 A on +12 V rail
• Power on +3.3 V and +5 V rails: 100 W each, +12 V rail: 744 W
• Total continuous power: 750 W
