Seasonic VERTEX 1000W (GX-1000) 80 PLUS Gold Modular PSU

This power supply unit offers high efficiency and reliable performance with fully modular design, making cable management easier. It features advanced power regulation and a high-quality cooling fan, suitable for demanding computing environments.

• Super-High Efficiency, 80 PLUS Platinum Certified
• Fully Modular
• Supports ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)
• Top-Quality 135 mm Fluid Dynamic Bearing Fan
• Premium Hybrid Fan Control
• Tight Voltage Regulation (12 V, 5 V, and 3.3 V) with ??3% tolerance
• Gold Plated High Current Terminals for motherboard, CPU, and PCIe connections

Technical specifications include an 80 PLUS Gold efficiency level, a compact form factor of 160 mm by 150 mm by 86 mm, and a fluid dynamic bearing fan designed for a lifespan of 50,000 hours at 40??C. The power supply supports full range AC input, with protections including OPP, OVP, UVP, OCP, OTP, and SCP. It complies with safety and environmental standards such as cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, and REACH. The warranty period is 10 years.

• AC Input Voltage: 100 V – 240 V
• Current: 13 – 6.5 A
• Frequency: 50 Hz – 60 Hz
• DC Output Rails: +3.3 V, +5 V, +12 V, -12 V, +5 VSB
• Maximum Power per Rail: 3.3 V (125 W), 5 V (125 W), 12 V (996 W), -12 V (3.6 W), 5 VSB (15 W)
• Total Continuous Power Output: 1000 W

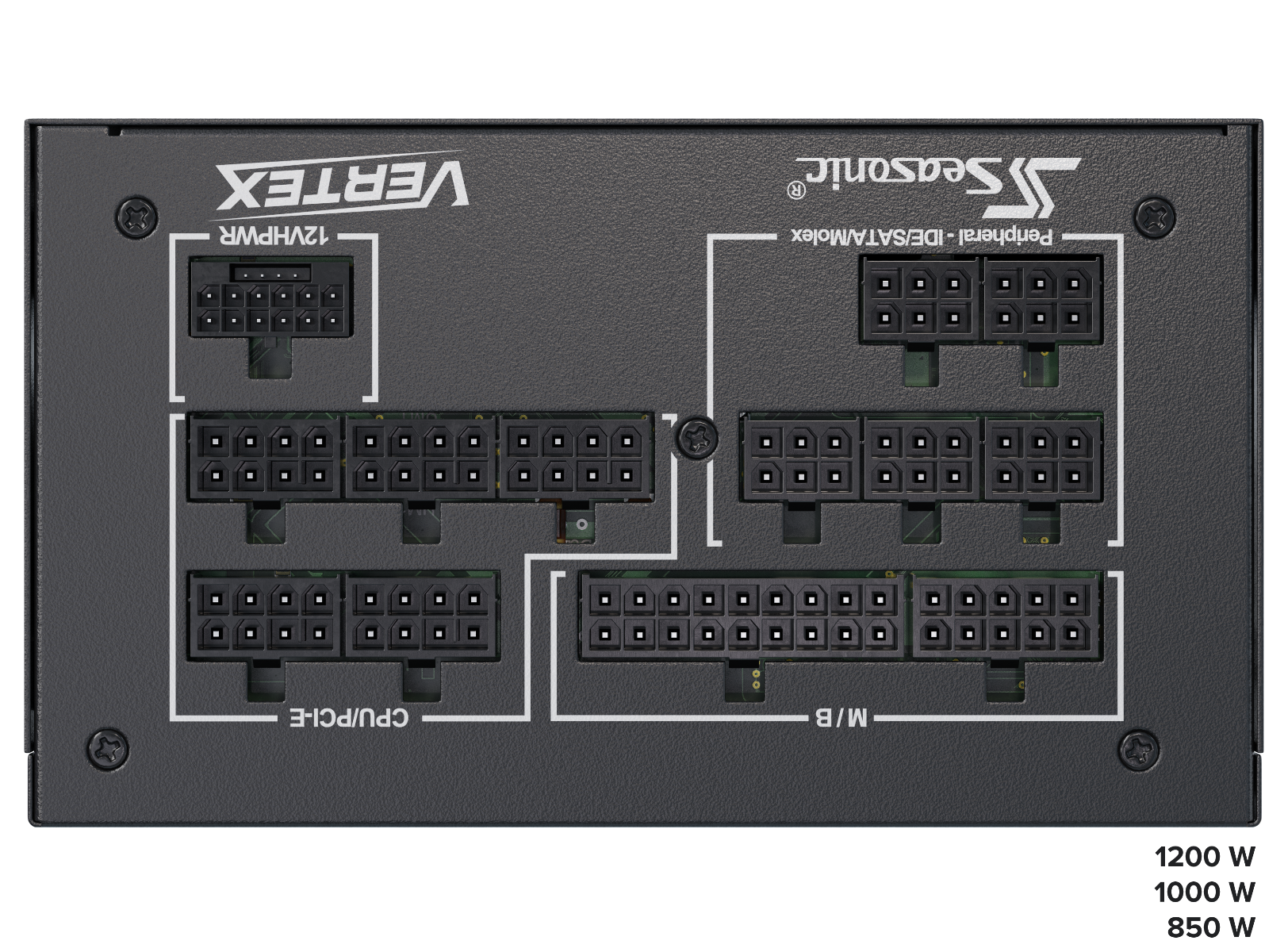

The power supply includes all necessary cables in flat black design, fully modular for flexible installation and cable management.
