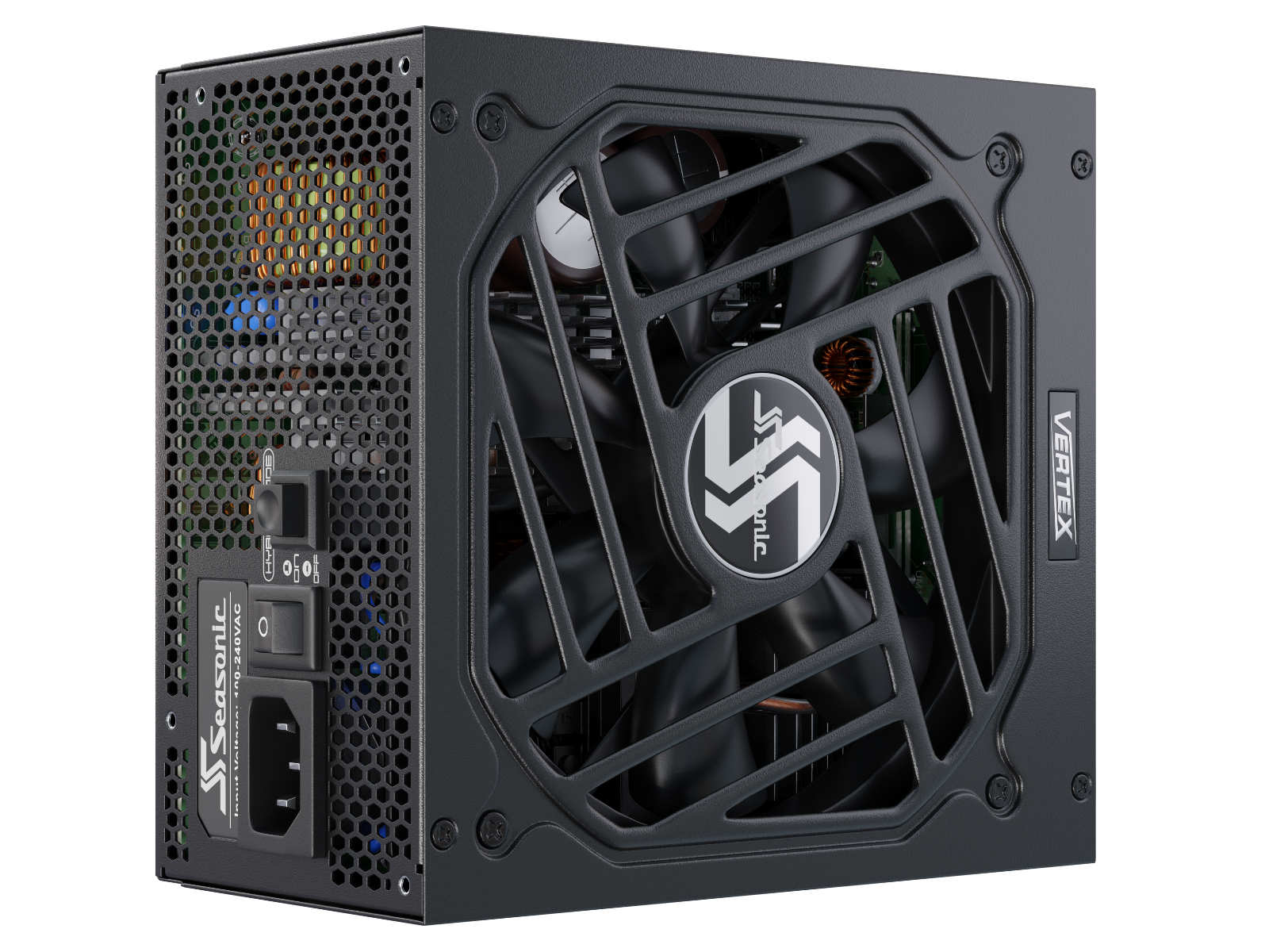

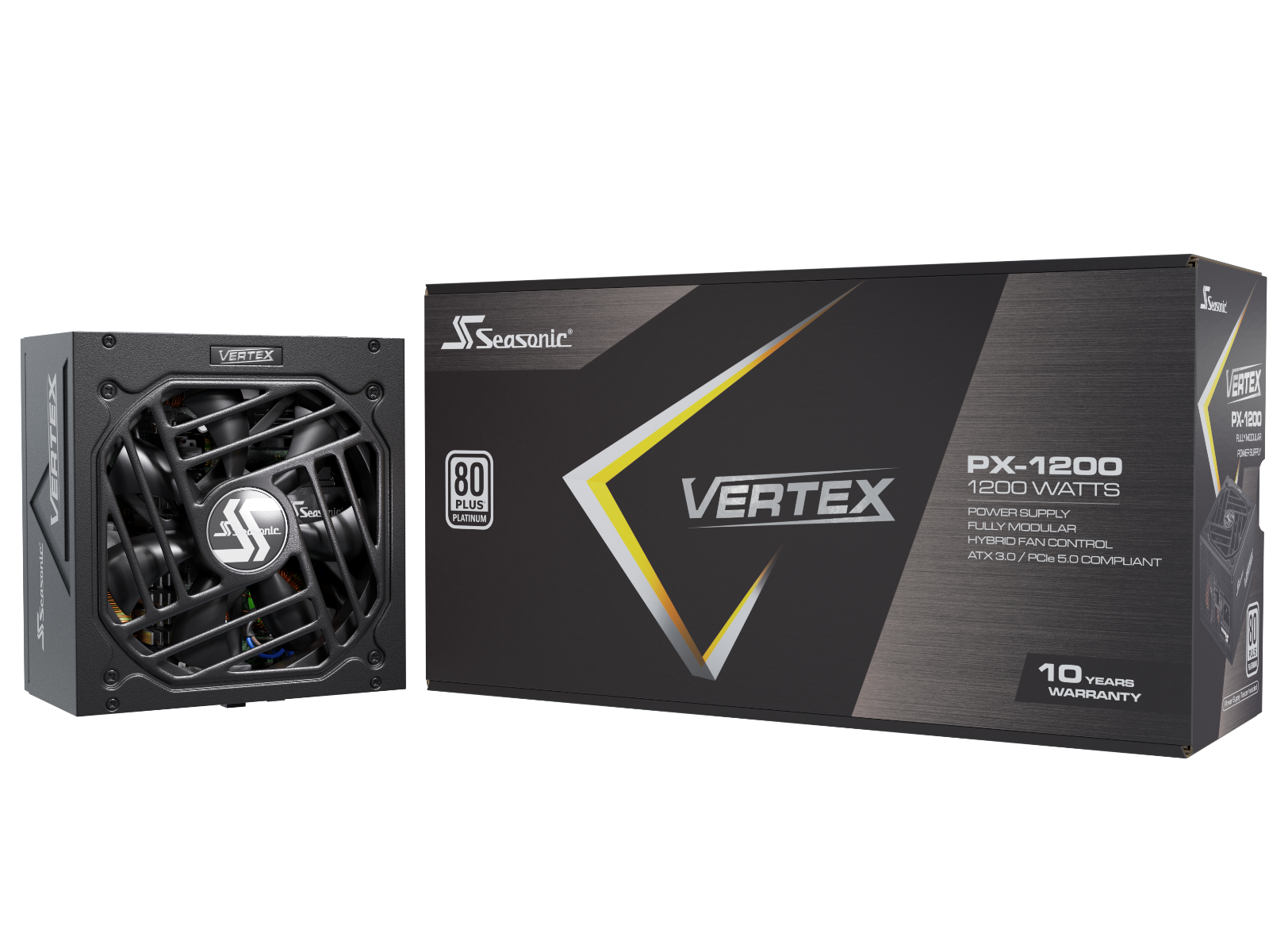

Seasonic VERTEX 1200W (PX-1200) Platinum Fully Modular PSU ATX 3.0

This power supply unit offers high efficiency with an 80 PLUS Platinum certification, ensuring reliable and energy-saving performance. It features full modularity for easy cable management and supports the latest ATX 3.0 standard with a 16-pin PCIe Gen 5 cable (12VHPWR). Equipped with a high-quality 135 mm fluid dynamic bearing fan and hybrid fan control, it maintains optimal cooling and noise levels. The power supply provides tight voltage regulation across multiple rails and uses gold-plated high current terminals for enhanced durability and performance.

• Super-high efficiency with 80 PLUS Platinum certification
• Fully modular cable design
• Supports ATX 3.0 and PCIe Gen 5 (12VHPWR) cables
• 135 mm fluid dynamic bearing fan with hybrid control
• Precise voltage regulation with multiple rails

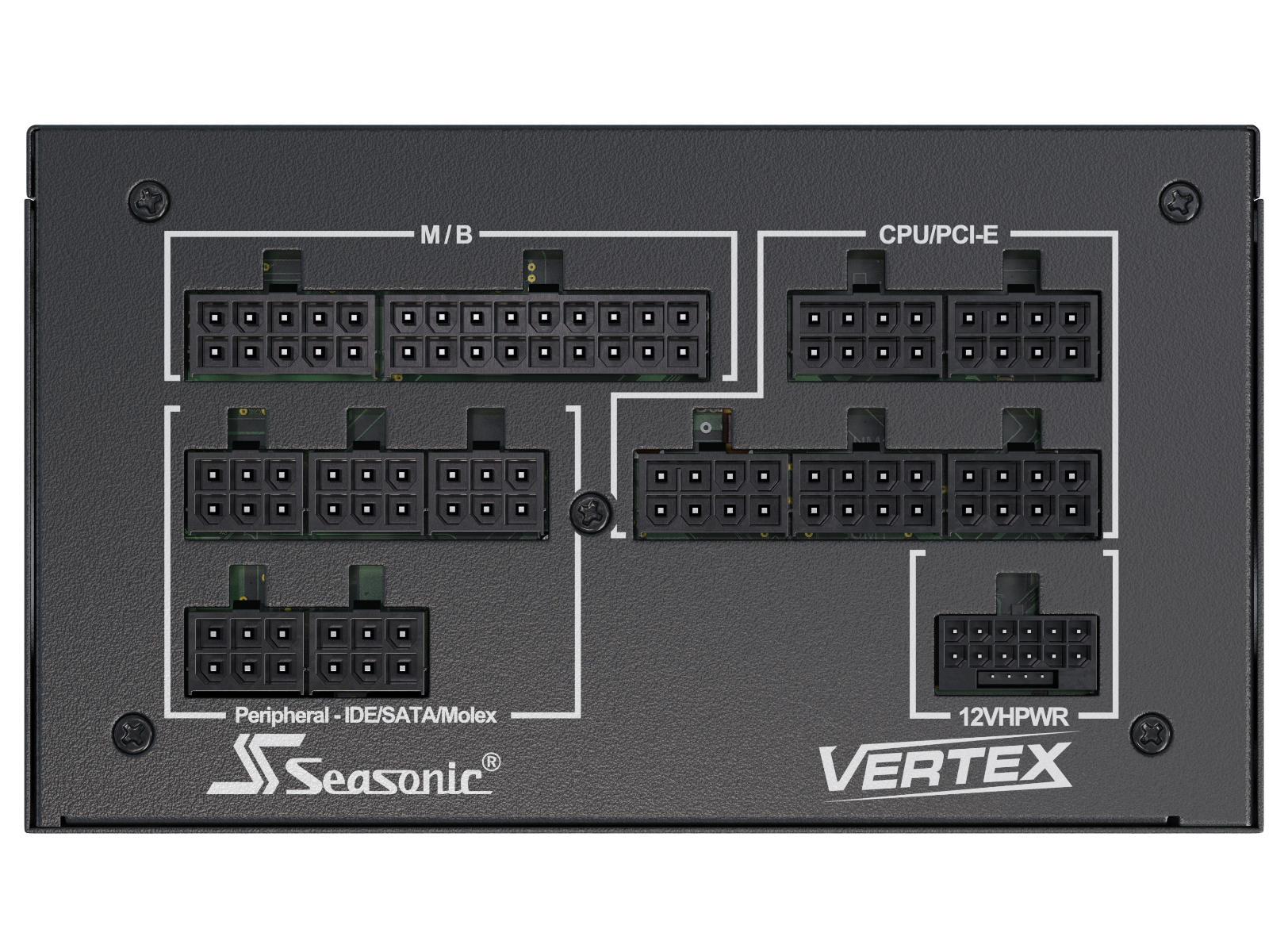

• Gold-plated high current terminals for motherboard, CPU, and PCIe connections

Technical specifications include an 80 PLUS Platinum efficiency level, a compact form factor of 160 mm by 150 mm by 86 mm, and a fan life expectancy of 50,000 hours at 40??C. It features comprehensive protection mechanisms such as OPP, OVP, UVP, OCP, OTP, and SCP. The power supply is compliant with various safety and environmental standards, including Energy Star, RoHS, WEEE, and ErP Lot 6. It is designed for operation within temperatures of 0 to 50??C, with an MTBF of 150,000 hours excluding the fan. The unit supports a full range of AC input voltages from 100 V to 240 V, 50-60 Hz frequency, and provides a continuous power output of 1200 W.

• Input Voltage: 100 V – 240 V
• Input Current: 15 – 7.5 A
• Input Frequency: 50 Hz – 60 Hz
• DC Output Rails: +3.3 V, +5 V, +12 V, -12 V, +5 VSB
• Maximum Power per Rail: 125 W on +3.3 V, 125 W on +5 V, 1200 W on +12 V, 3.6 W on -12 V, 15 W on +5 VSB
• Total Continuous Power: 1200 W

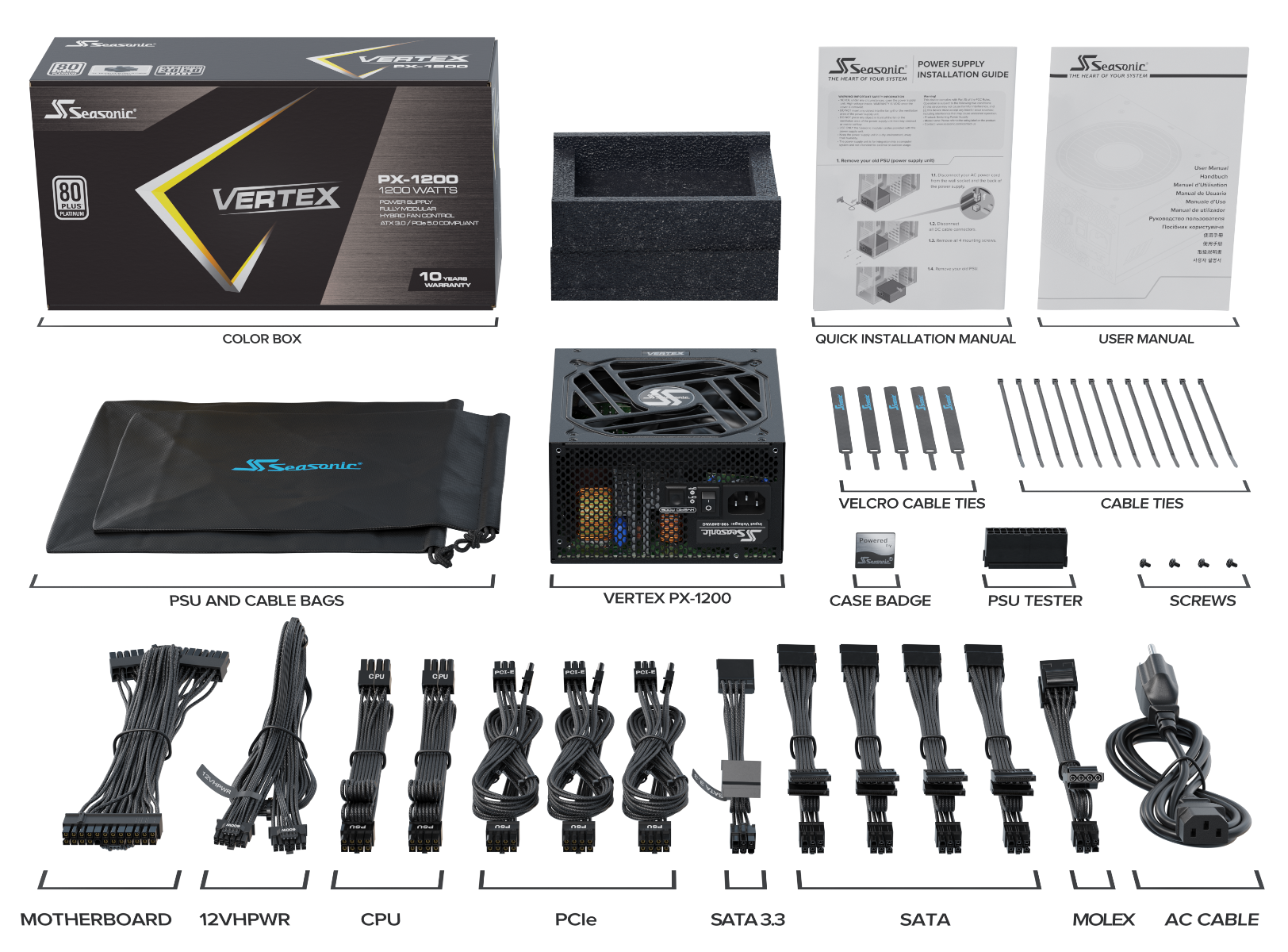

The package includes the power supply unit with all necessary cables for installation and operation.
