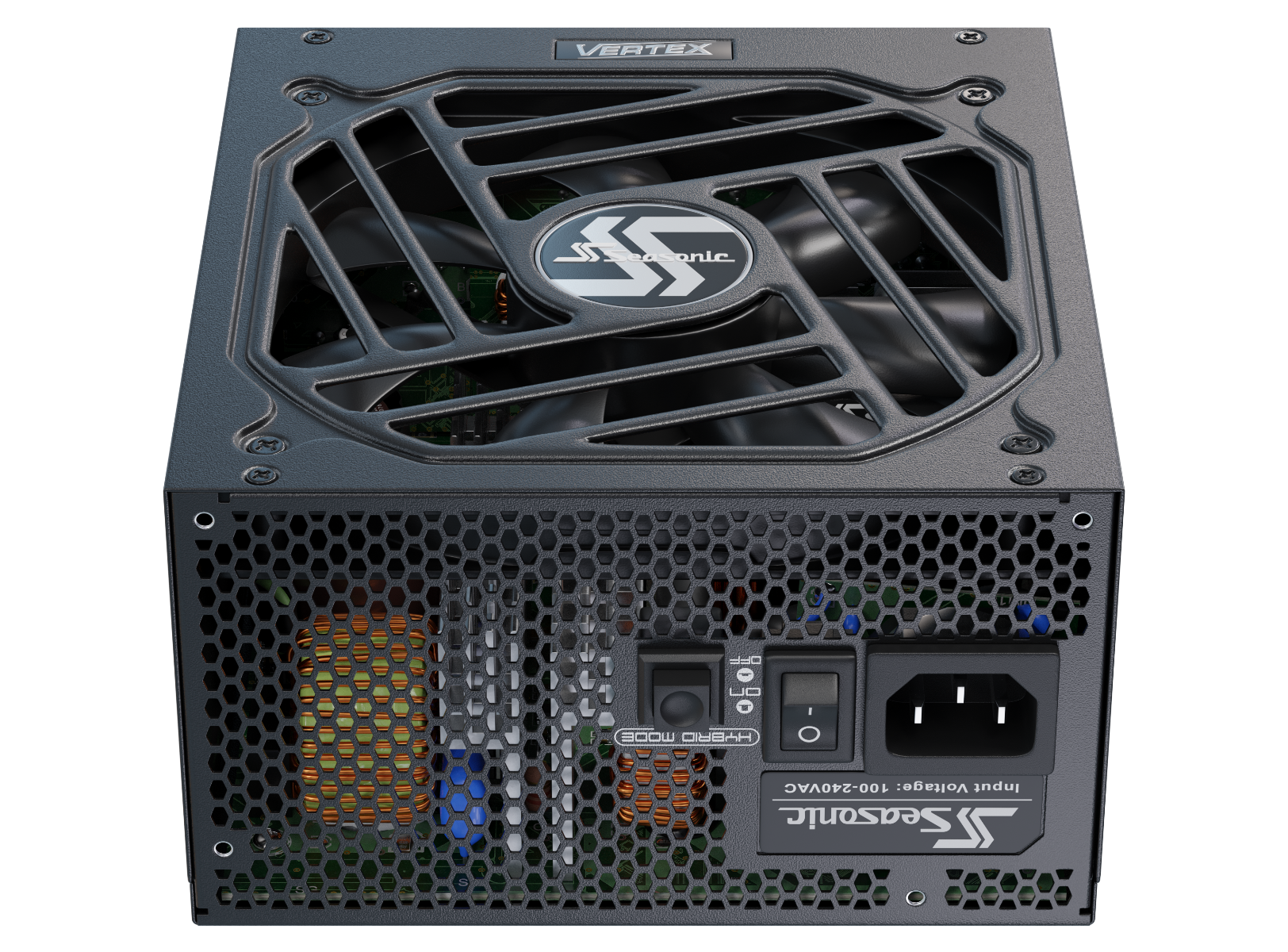

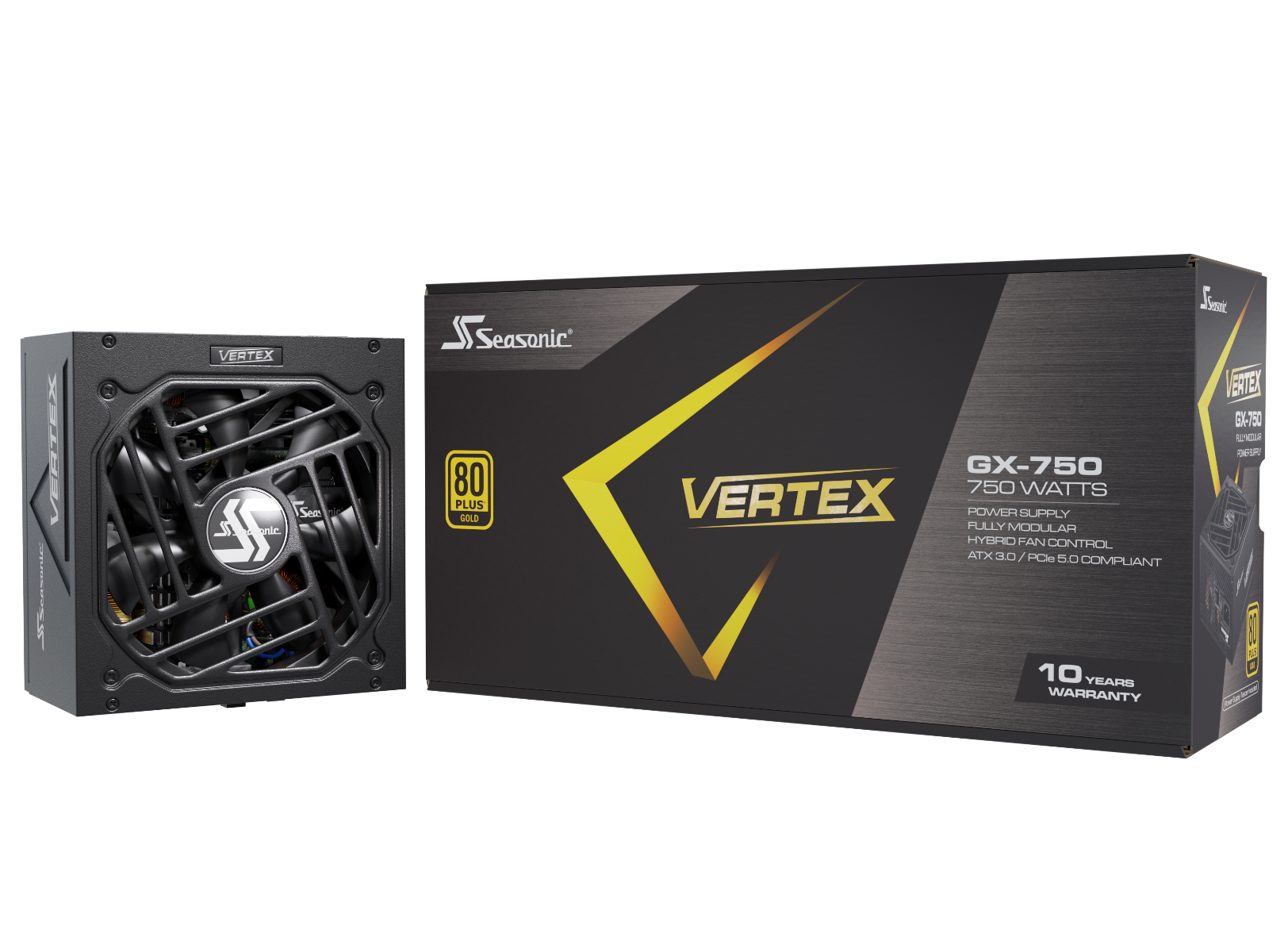

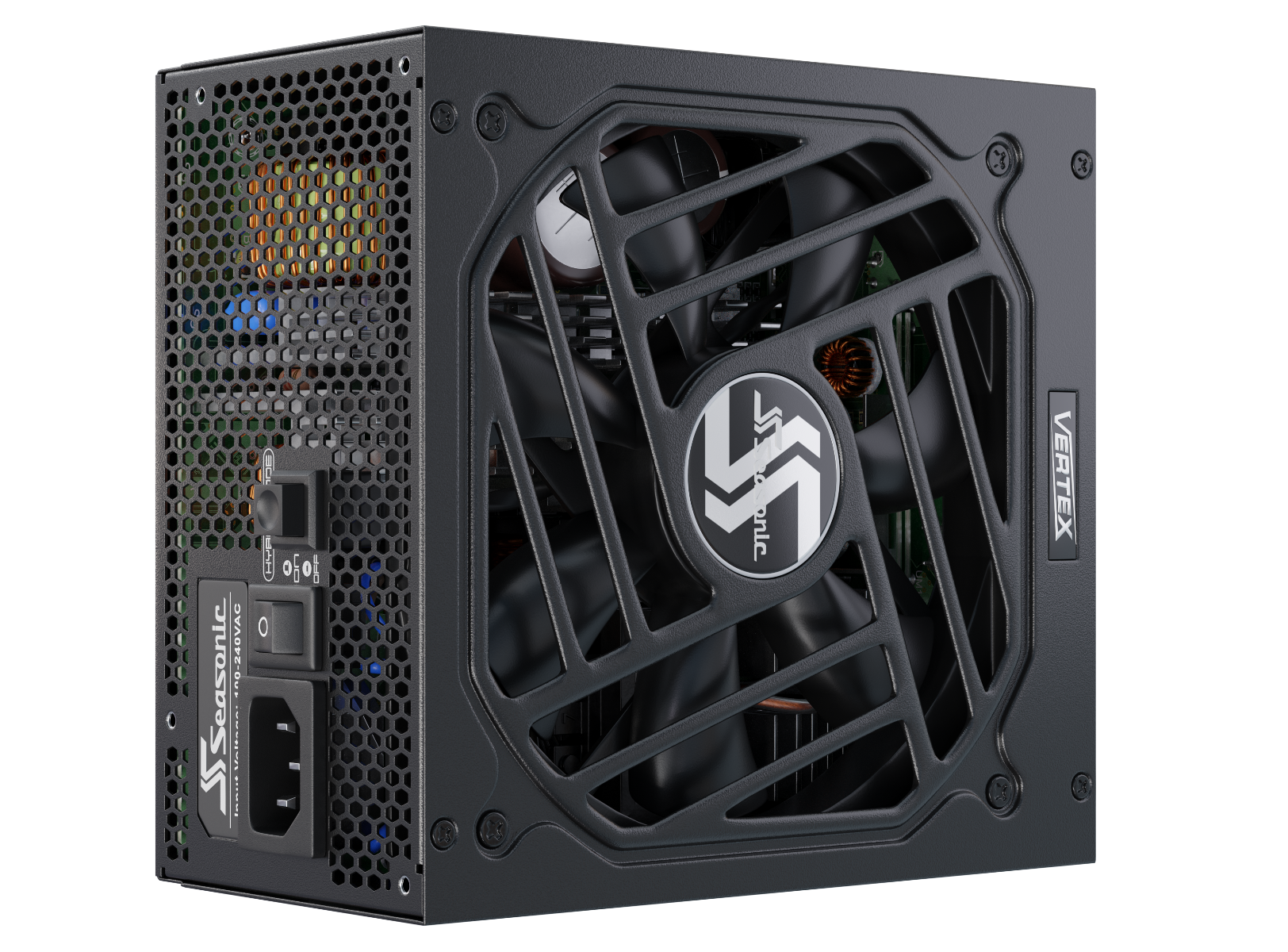

Seasonic VERTEX 750W (GX-750) 80 PLUS Gold Modular PSU ATX 3.0

This power supply unit offers high efficiency and reliable performance with fully modular design, making cable management easier. It supports the latest ATX 3.0 standard and PCIe Gen 5 connections, suitable for high-performance systems. Equipped with a high-quality fan and advanced control features, it ensures quiet operation and stable power delivery.

Features

• Super-High Efficiency, 80 PLUS Gold Certified

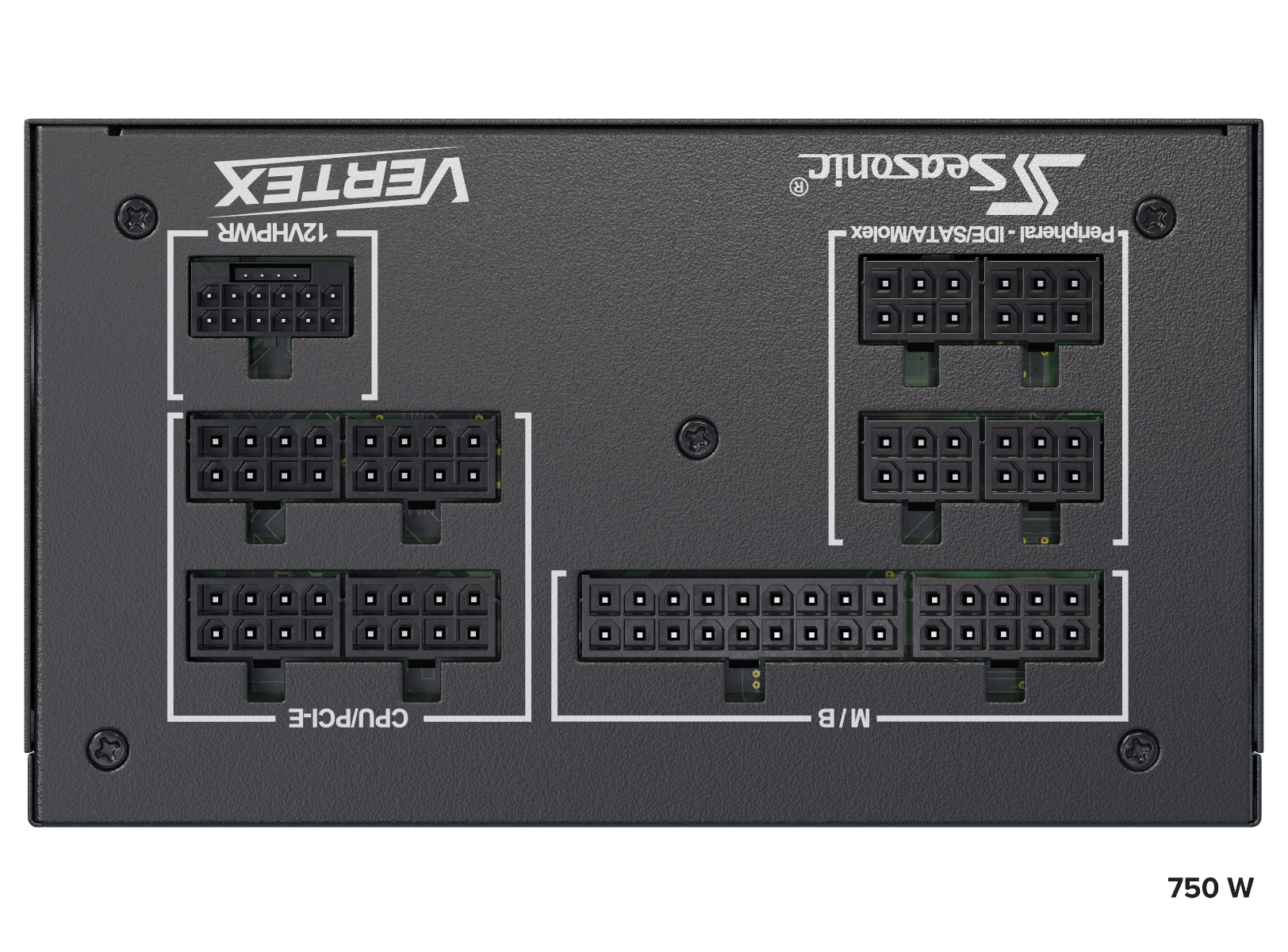

• Fully Modular
• Supports ATX 3.0 and 16-Pin PCIe Gen 5 Cable (12VHPWR)

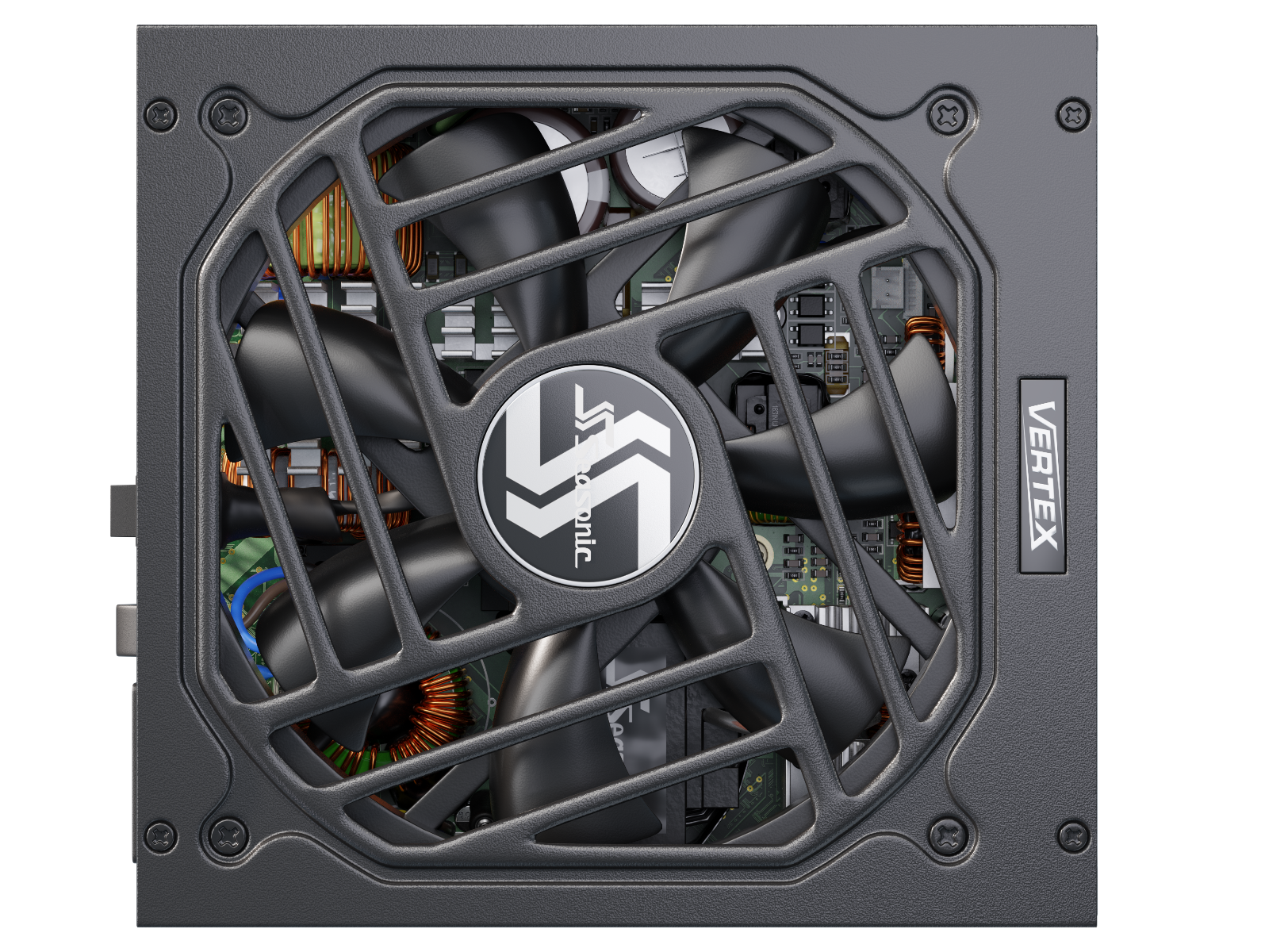

• Top-Quality 135 mm Fluid Dynamic Bearing Fan
• Premium Hybrid Fan Control
• Tight Voltage Regulation (12 V, 5 V, and 3.3 V) with ??3% tolerance
• Gold Plated High Current Terminals for motherboard, CPU, and PCIe connections

Specifications

• Efficiency Level: 80 PLUS Gold, Cybenetics Platinum
• Noise Level: Lambda A
• Form Factor: ATX 12 V
• Dimensions: 160 mm x 150 mm x 86 mm
• Fan Size: 135 mm, Fluid Dynamic Bearing, Digital Fan Control
• Life Expectancy: 50,000 hours at 40??C
• Cable Type: Flat black cables, Fully Modular
• Operating Temperature: 0??C to 50??C
• MTBF: 100,000 hours at 25??C
• Input Voltage Range: 100 V – 240 V, Full Range
• Protection Features: OPP, OVP, UVP, OCP, OTP, SCP
• Safety Certifications: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Warranty: 10 Years

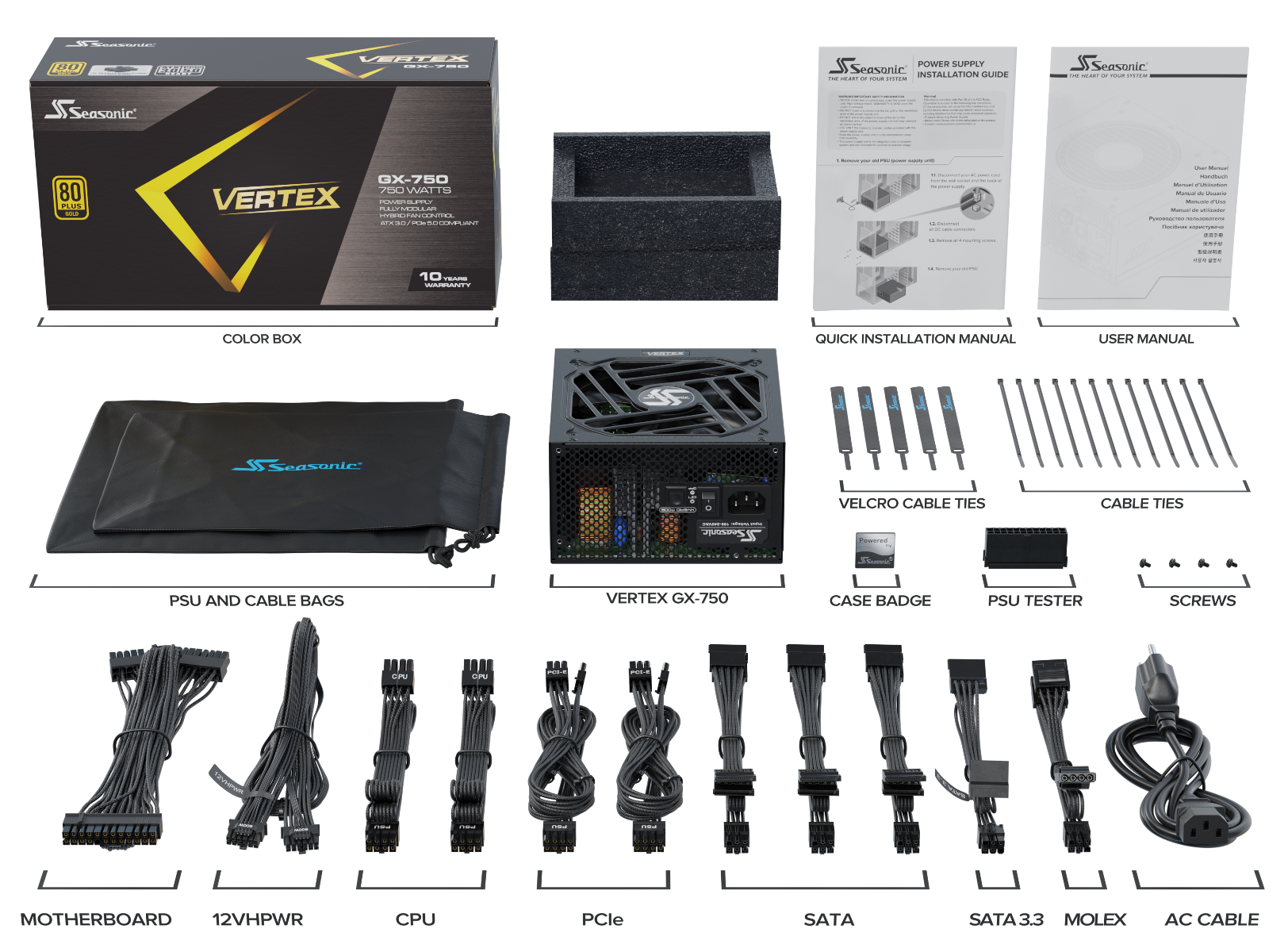

Package Content

• Power supply unit
• Power cables
• Modular cables
• User manual
