Seasonic VERTEX 750W (PX-750) Platinum Fully Modular PSU ATX 3.0

This power supply unit offers high efficiency and reliable performance with its platinum certification. It features a fully modular design for easy cable management and compatibility with the latest hardware standards. Equipped with a high-quality fan and hybrid control system, it ensures quiet operation and effective cooling. The unit provides tight voltage regulation and high-current terminals for critical components, making it suitable for demanding computing environments.

• Super-high efficiency with 80 PLUS Platinum certification

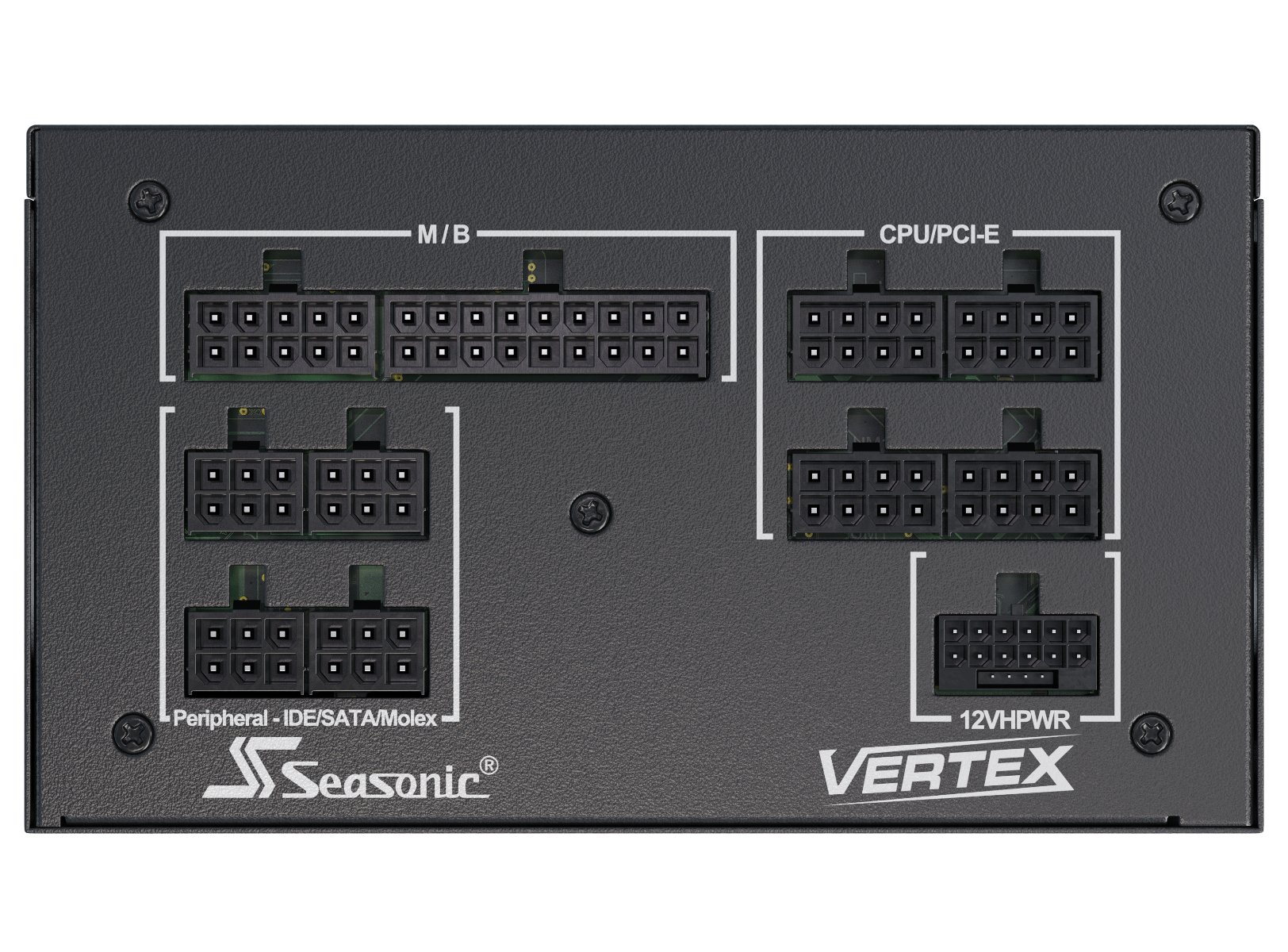

• Fully modular cable design
• Supports ATX 3.0 and PCIe Gen 5 with 16-pin (12VHPWR) cable

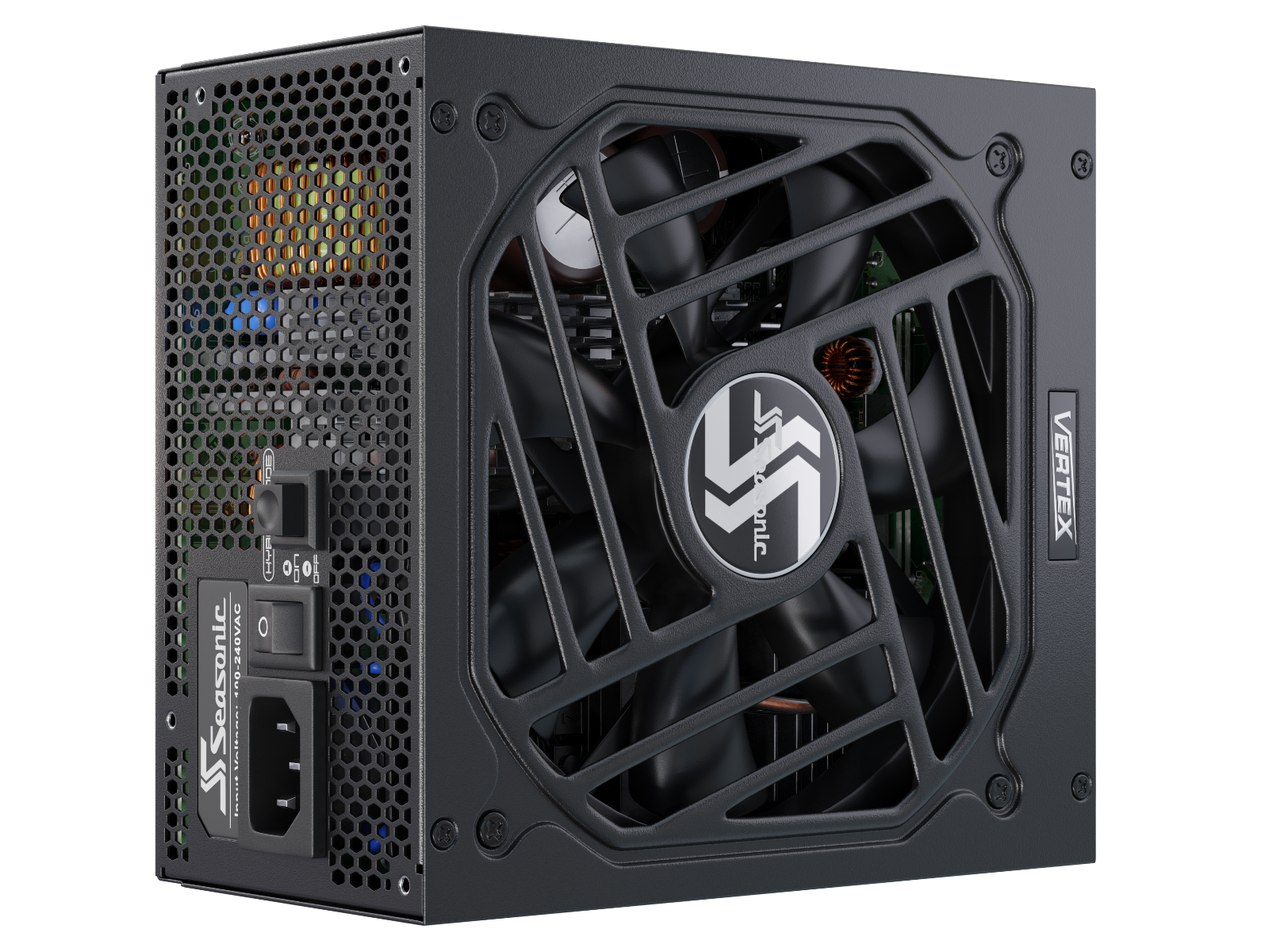

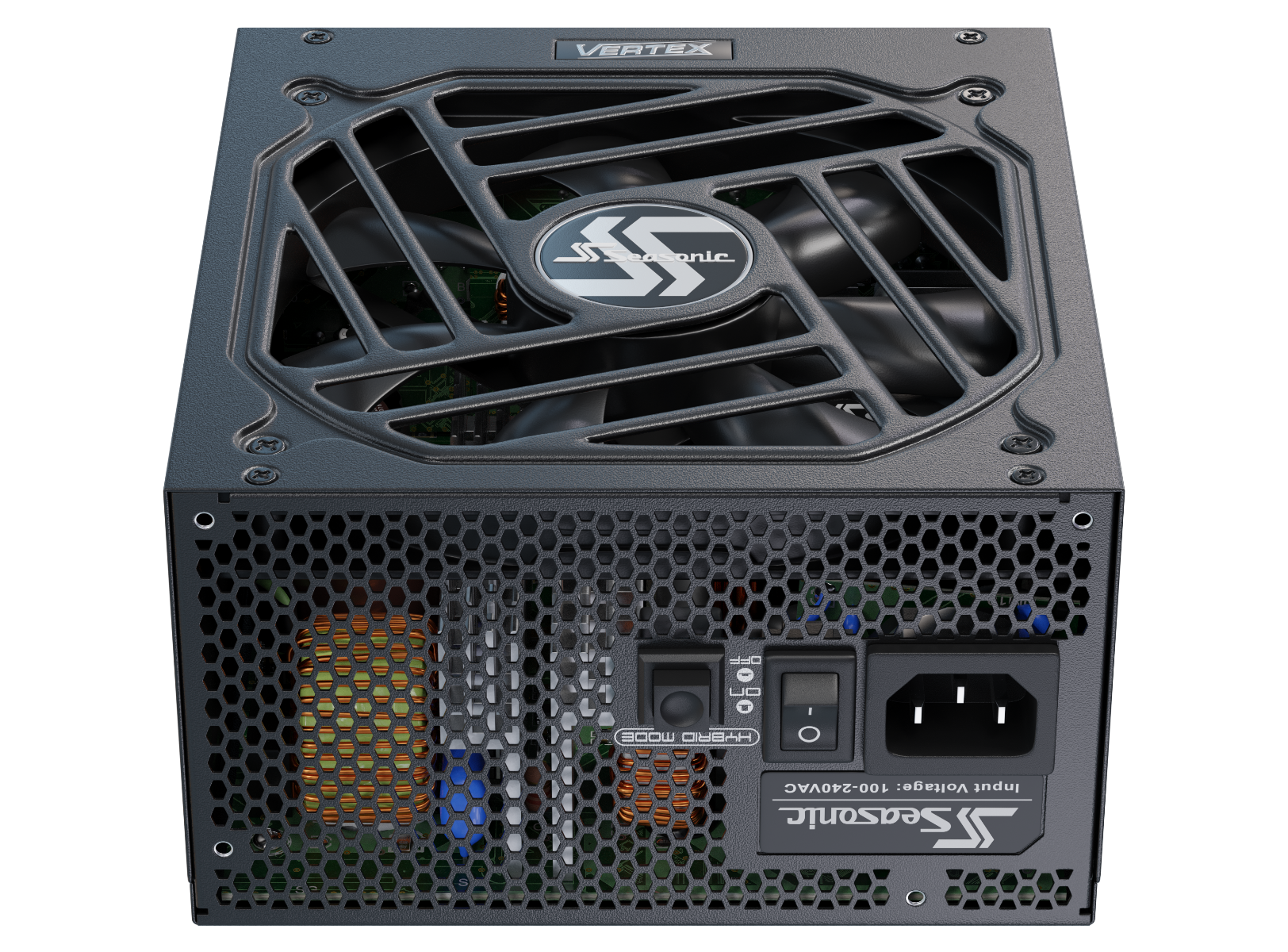

• 135 mm fluid dynamic bearing fan with hybrid control
• Precise voltage regulation with multiple protections
• Gold-plated high current terminals for motherboard, CPU, and PCIe connections

• Form factor: ATX 12V
• Dimensions: 160 mm x 150 mm x 86 mm
• Fan size: 135 mm
• Fan bearing: Fluid dynamic bearing
• Life expectancy: 50,000 hours at 40??C
• Operating temperature: 0??C to 50??C
• MTBF: 150,000 hours at 25??C
• Electrical input: 100 V – 240 V, 10 A – 5 A, 50 Hz – 60 Hz
• Protection features: OPP, OVP, UVP, OCP, OTP, SCP
• Environmental compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Safety certifications: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Warranty: 10 years

• Maximum power output: 750 W
• DC rail voltages: +3.3 V, +5 V, +12 V, -12 V, +5 VSB
• Maximum current: 20 A on +3.3 V and +5 V rails, 62 A on +12 V rail
• Power on +3.3 V: 125 W, +5 V: 125 W, +12 V: 744 W, -12 V: 3.6 W, +5 VSB: 15 W

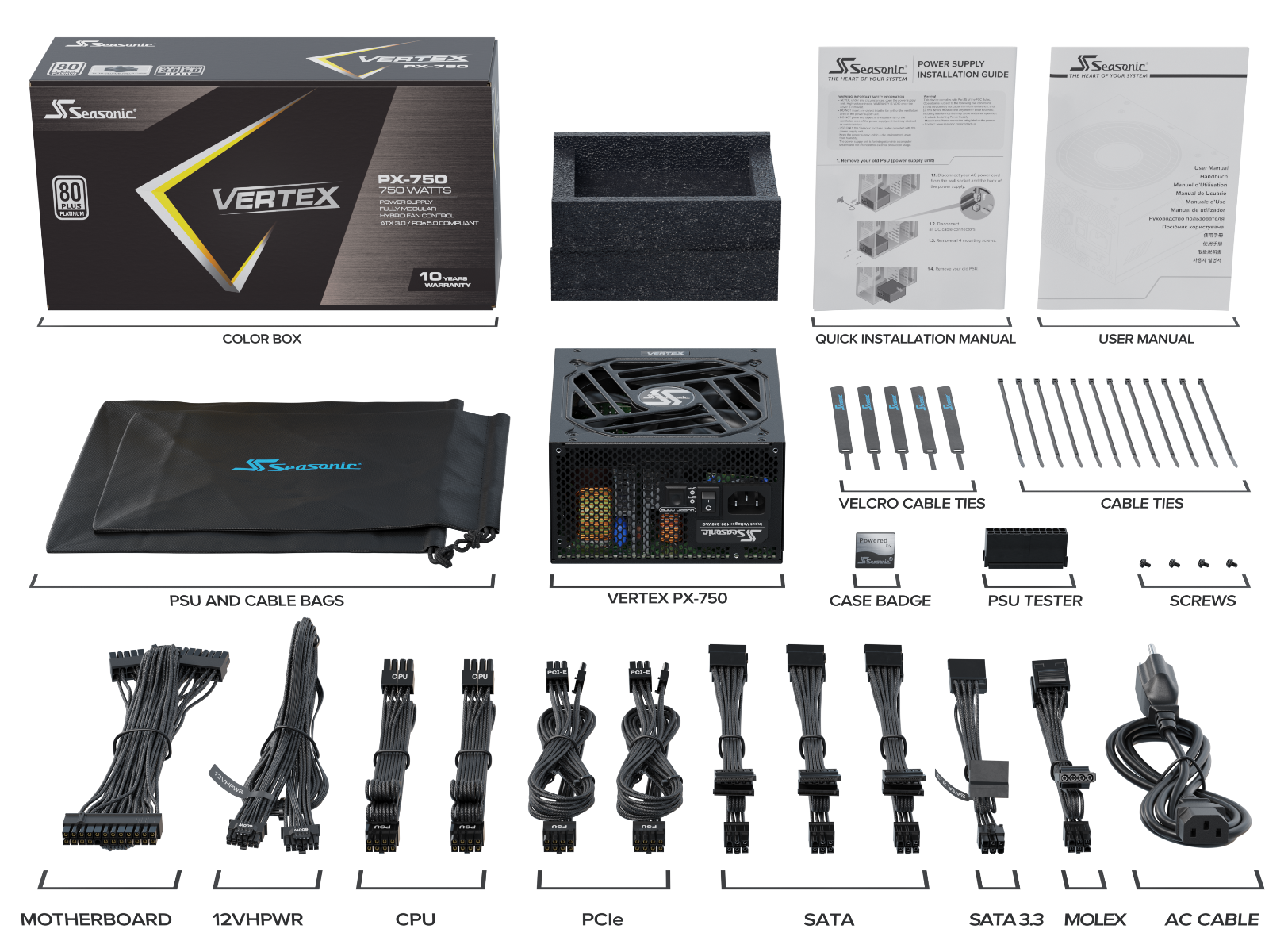

Package includes the power supply unit and necessary cables for installation and operation.
