Seasonic VERTEX 850W (GX-850) 80 PLUS Gold Modular PSU

This power supply unit offers high efficiency and reliable performance with fully modular design and advanced features. It is equipped with a high-quality fan and hybrid control system to ensure quiet operation and durability. The unit supports the latest connectivity standards and provides stable power delivery for demanding systems.

• Super-high efficiency with 80 PLUS Gold certification

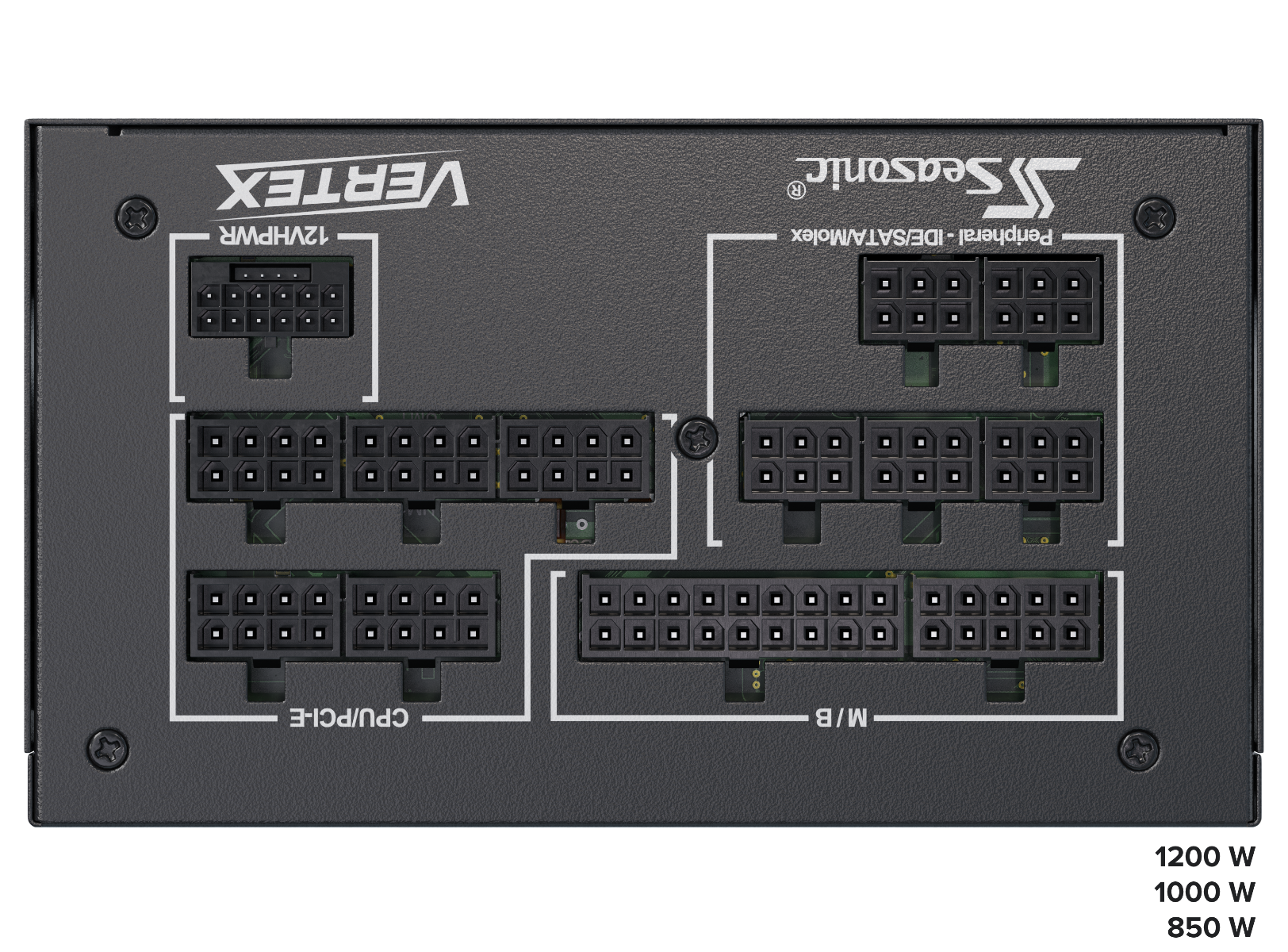

• Fully modular cable design for easy installation and cable management
• Supports ATX 3.0 and 16-pin PCIe Gen 5 (12VHPWR) cables

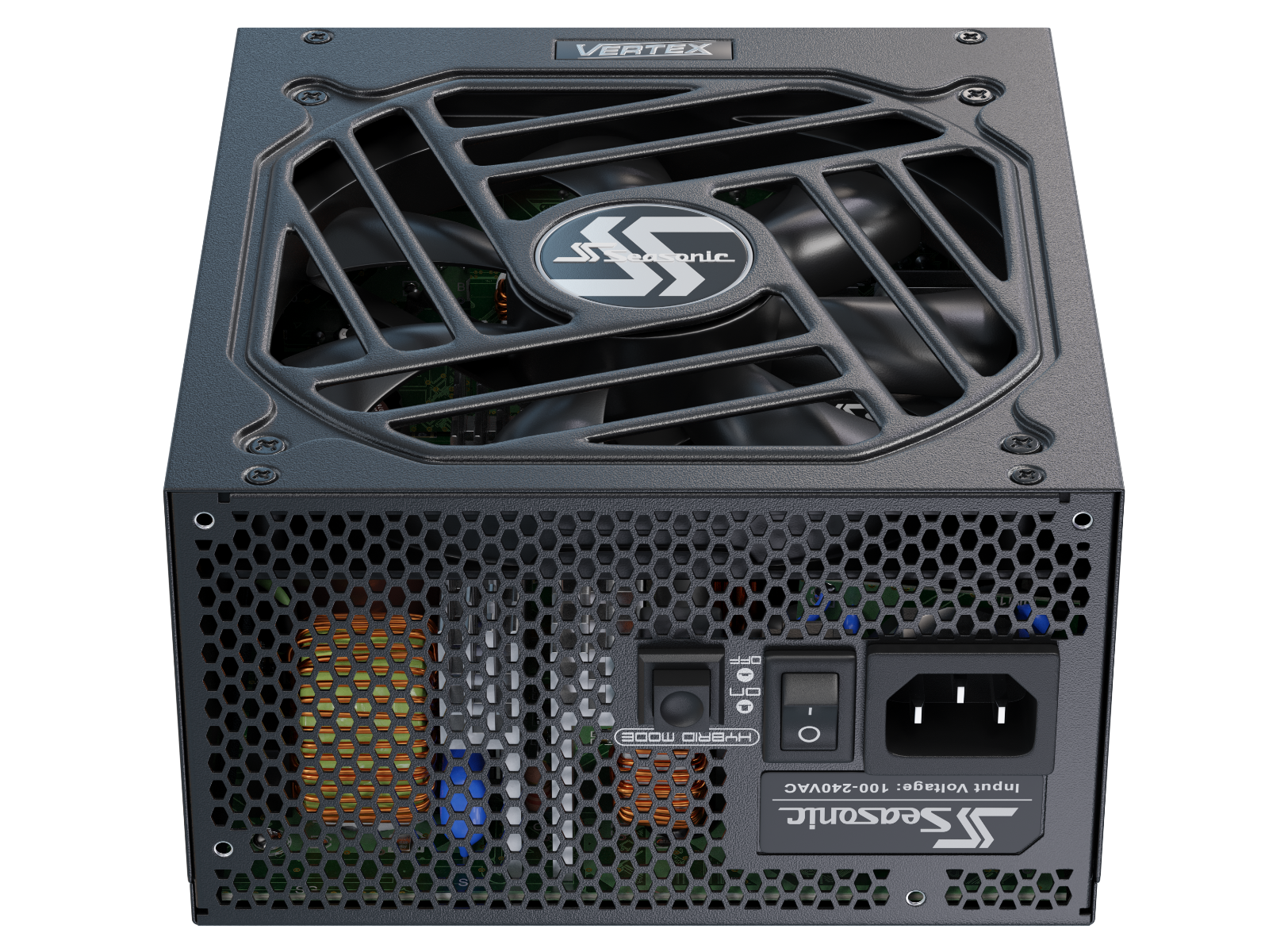

• 135 mm fluid dynamic bearing fan with hybrid control for quiet operation
• Precise voltage regulation across multiple rails
• Gold-plated high current terminals for CPU, motherboard, and PCIe connections

• Form factor: ATX 12 V
• Dimensions: 160 mm x 150 mm x 86 mm
• Fan size: 135 mm
• Fan bearing: Fluid dynamic bearing
• Life expectancy: 50,000 hours at 40??C
• Operating temperature: 0??C to 50??C
• Electrical protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety certifications: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Warranty: 10 years

• AC input voltage: 100 V – 240 V
• AC input current: 11 A – 5.5 A
• Frequency: 50 Hz – 60 Hz
• DC output rails: +3.3 V, +5 V, +12 V, -12 V, +5 VSB
• Maximum current: 20 A on +3.3 V and +5 V rails, 70 A on +12 V rail
• Maximum power: 850 W total
• Power output: 840 W continuous power

Package Content: Power supply unit with attached cables, user manual, and mounting hardware.
