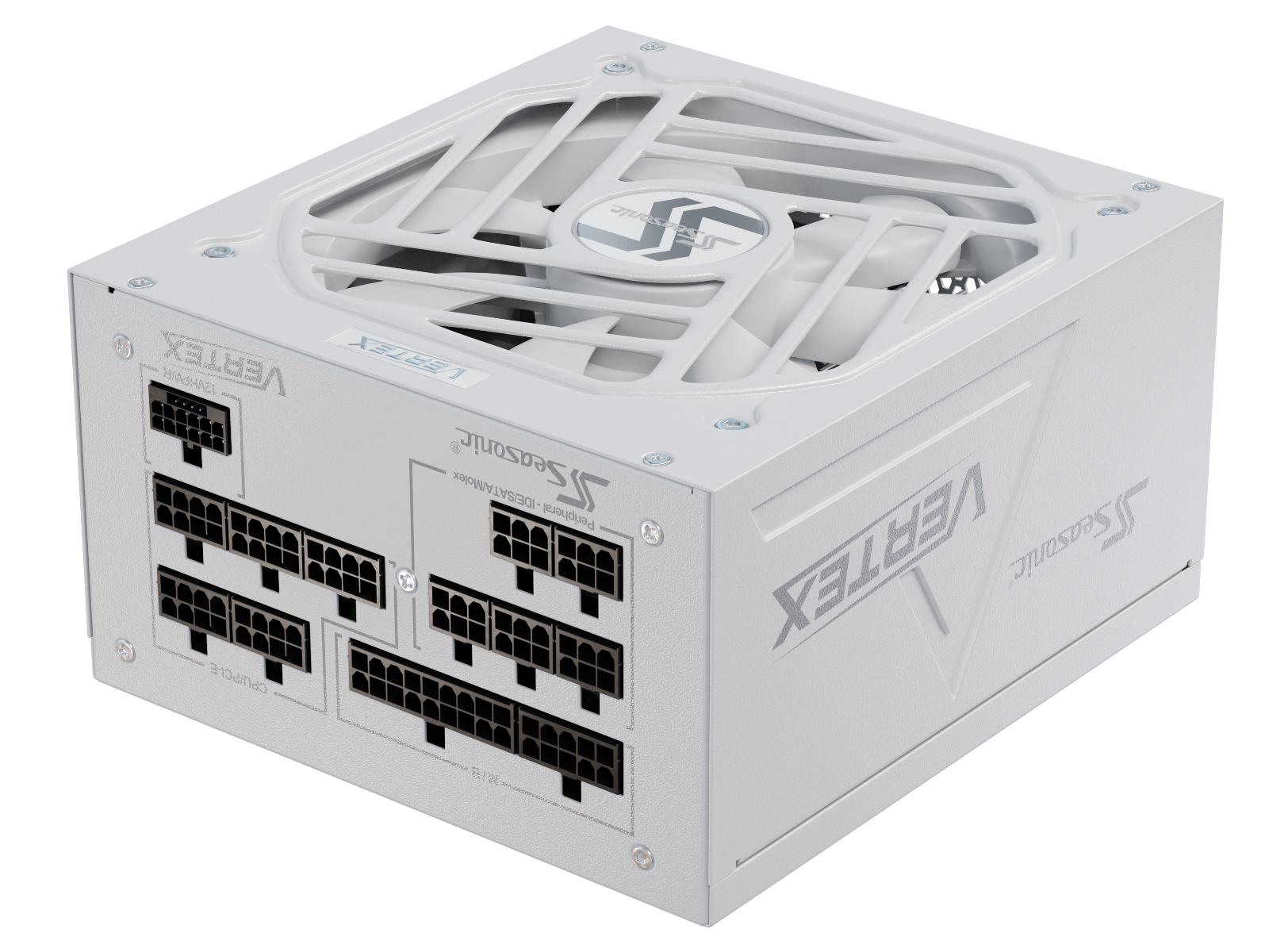

Seasonic VERTEX GX-1000 White 1000W ATX 3.0 Gold Modular PSU

This power supply unit offers high efficiency and reliable performance with its 80 PLUS Gold certification. It features a fully modular design, supporting ATX 3.0 and PCIe Gen 5 cables, including the 16-pin 12VHPWR connector. Equipped with a high-quality 135 mm fluid dynamic bearing fan and hybrid fan control, it ensures quiet operation and effective cooling. The power supply provides tight voltage regulation and high-current terminals for critical components, making it suitable for demanding systems.

Features

• Super-high efficiency with 80 PLUS Gold certification

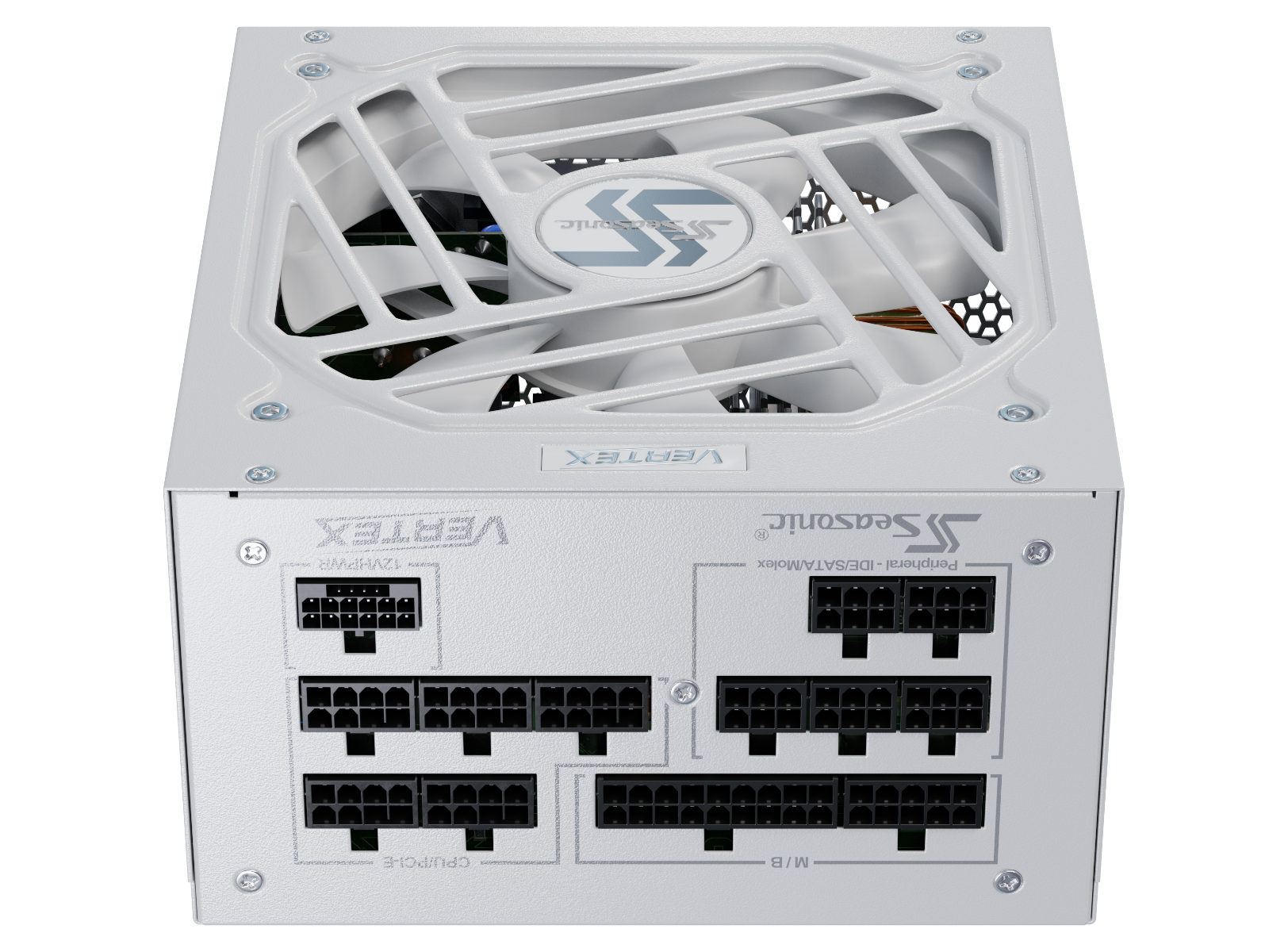

• Fully modular cable design

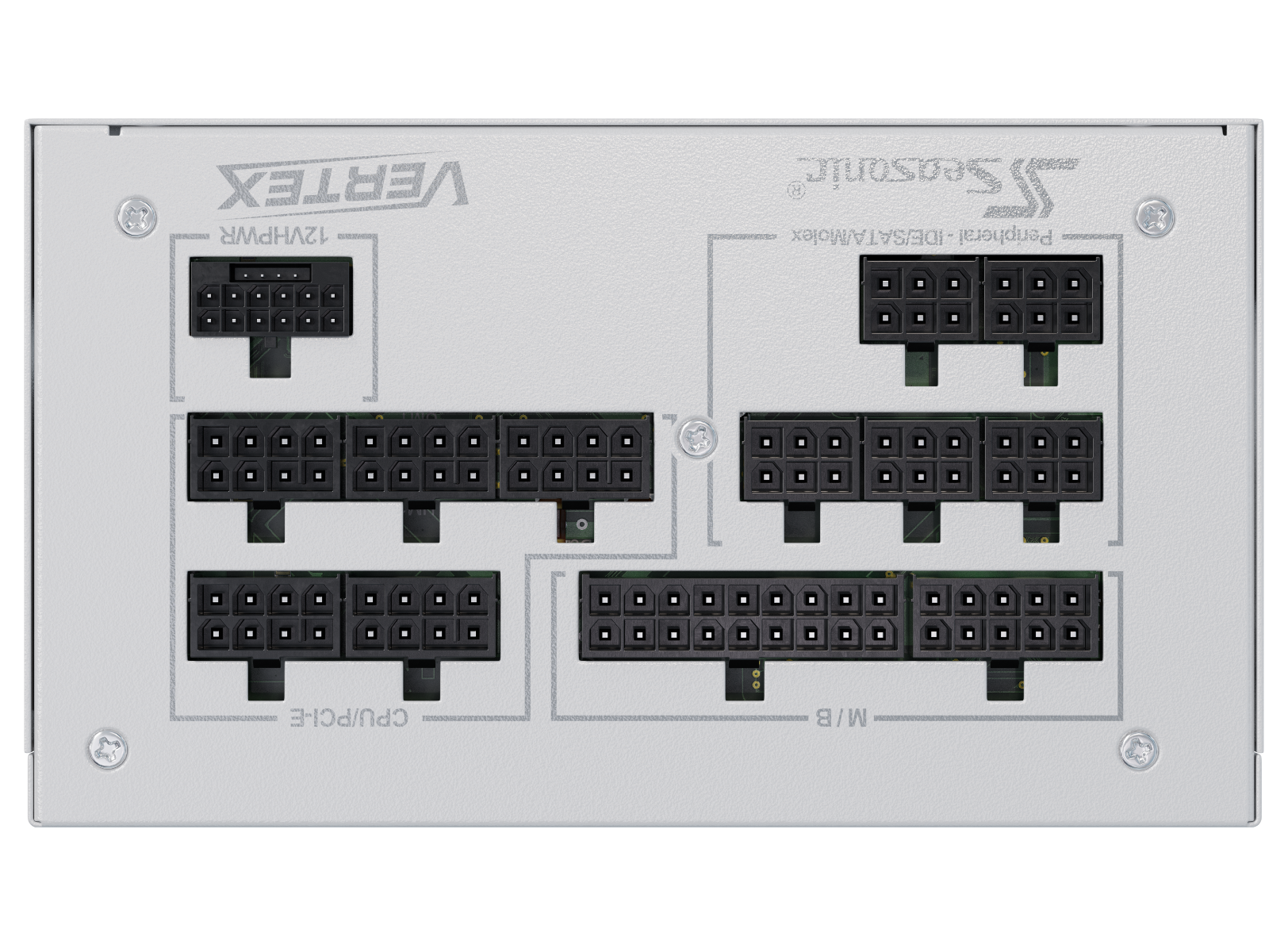

• Supports ATX 3.0 and PCIe Gen 5 (12VHPWR) cables

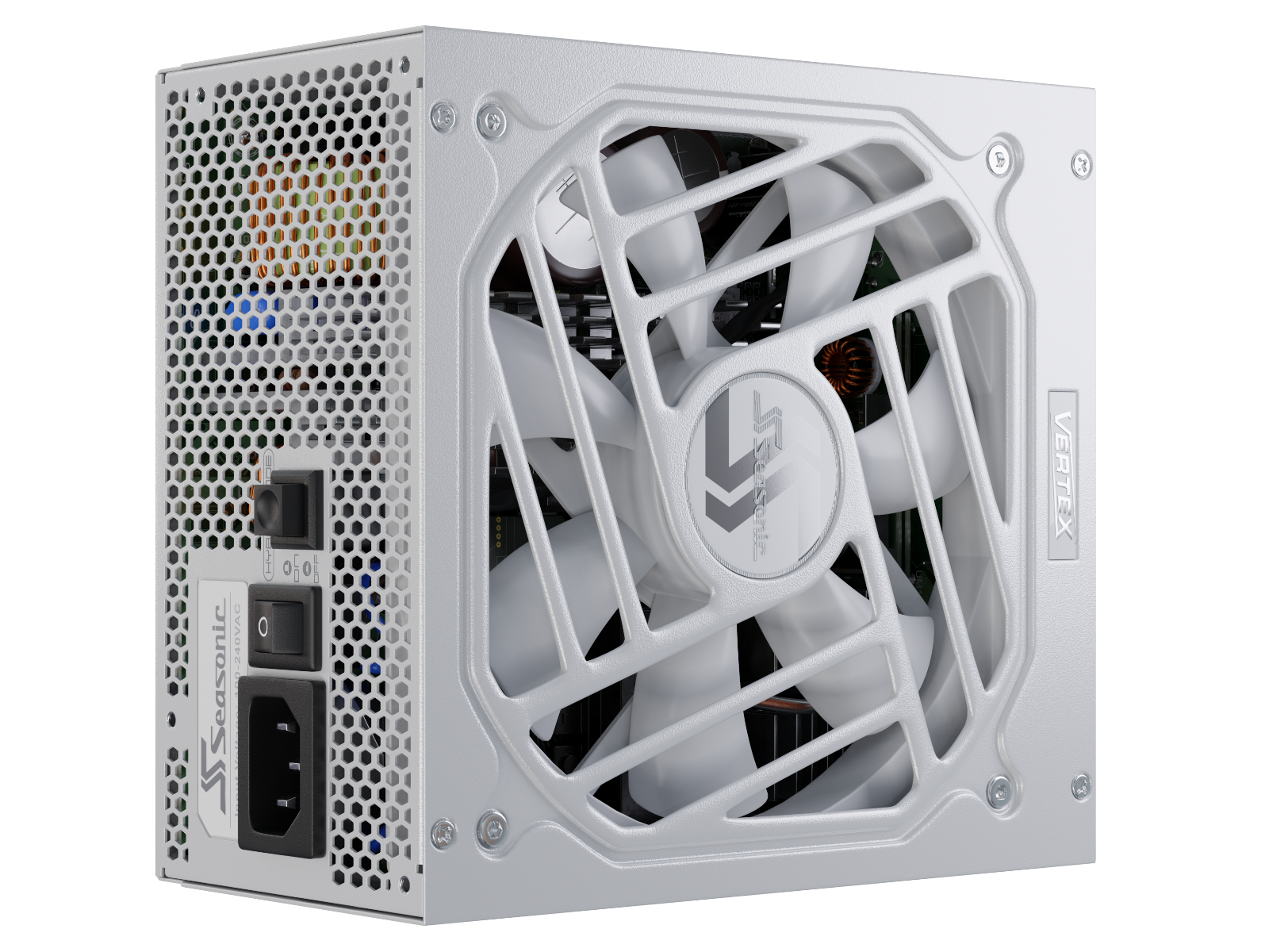

• 135 mm fluid dynamic bearing fan with hybrid control
• Premium high-current terminals for motherboard, CPU, and PCIe
• Stable voltage regulation across multiple rails

Specifications

• Form factor: ATX 12 V
• Dimensions: 160 mm x 150 mm x 86 mm
• Fan size: 135 mm
• Fan control: Digital
• Fan bearing: Fluid dynamic bearing
• Life expectancy: 50,000 hours at 40??C
• Operating temperature: 0??C to 50??C
• MTBF: 100,000 hours
• Input voltage: 100 V – 240 V
• Input current: 13 A – 6.5 A
• Frequency: 50 Hz – 60 Hz
• Protection features: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and environmental certifications: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Warranty: 10 years

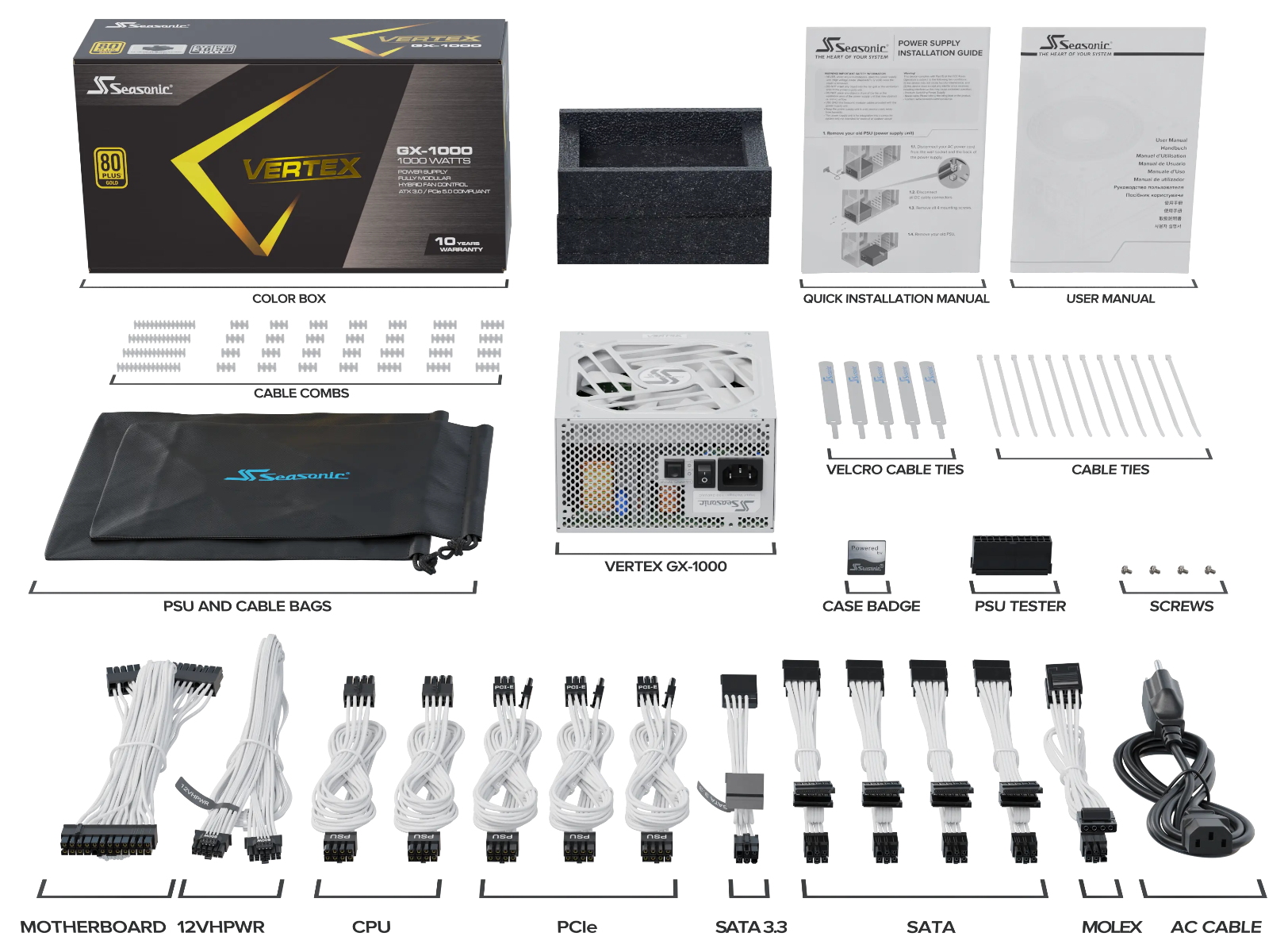

Package Content

• Power supply unit
• Power cables
• Modular cables
• User manual
