Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz - Image 1
Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz - Image 2
Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz - Image 3
Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz - Image 4

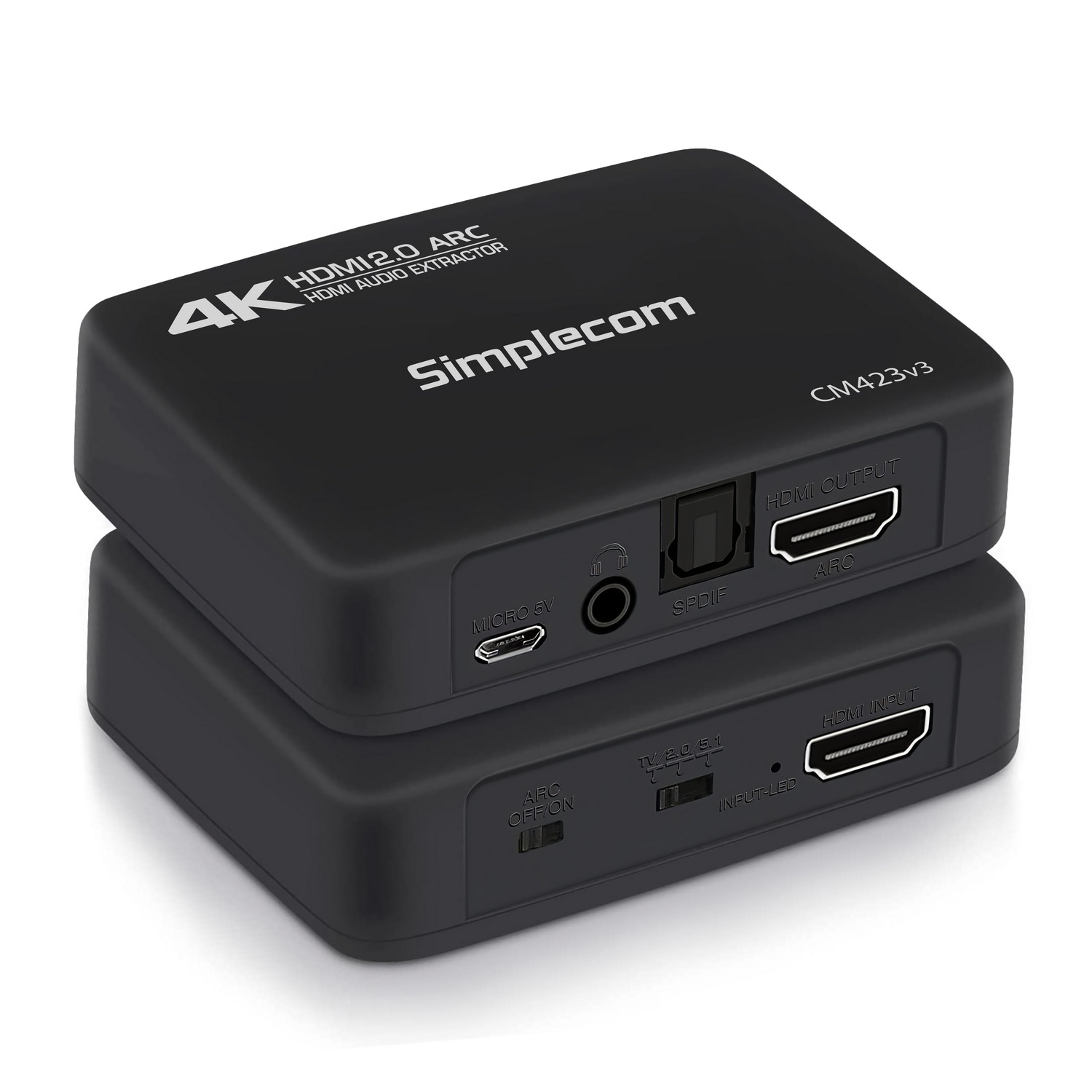

Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz
Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz - Image 2
Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz - Image 3
Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz - Image 4

Simplecom CM423v3 HDMI 2.0 Audio Extractor Optical SPDIF + 3.5mm Stereo with ARC 4K@60Hz

Original price was: $66.99.Current price is: $36.99.

9 Items sold in last 24 hours
14 People watching this product now!

In stock

  • Fast worldwide shipping on every order.
  • Your order arrives in 7–15 business days with tracking provided.
  • Shop risk-free with our 14-day hassle-free returns.
  • Your transactions are SSL-encrypted and 100% safe.
  • We offer fast, friendly customer support whenever you need help.

Description

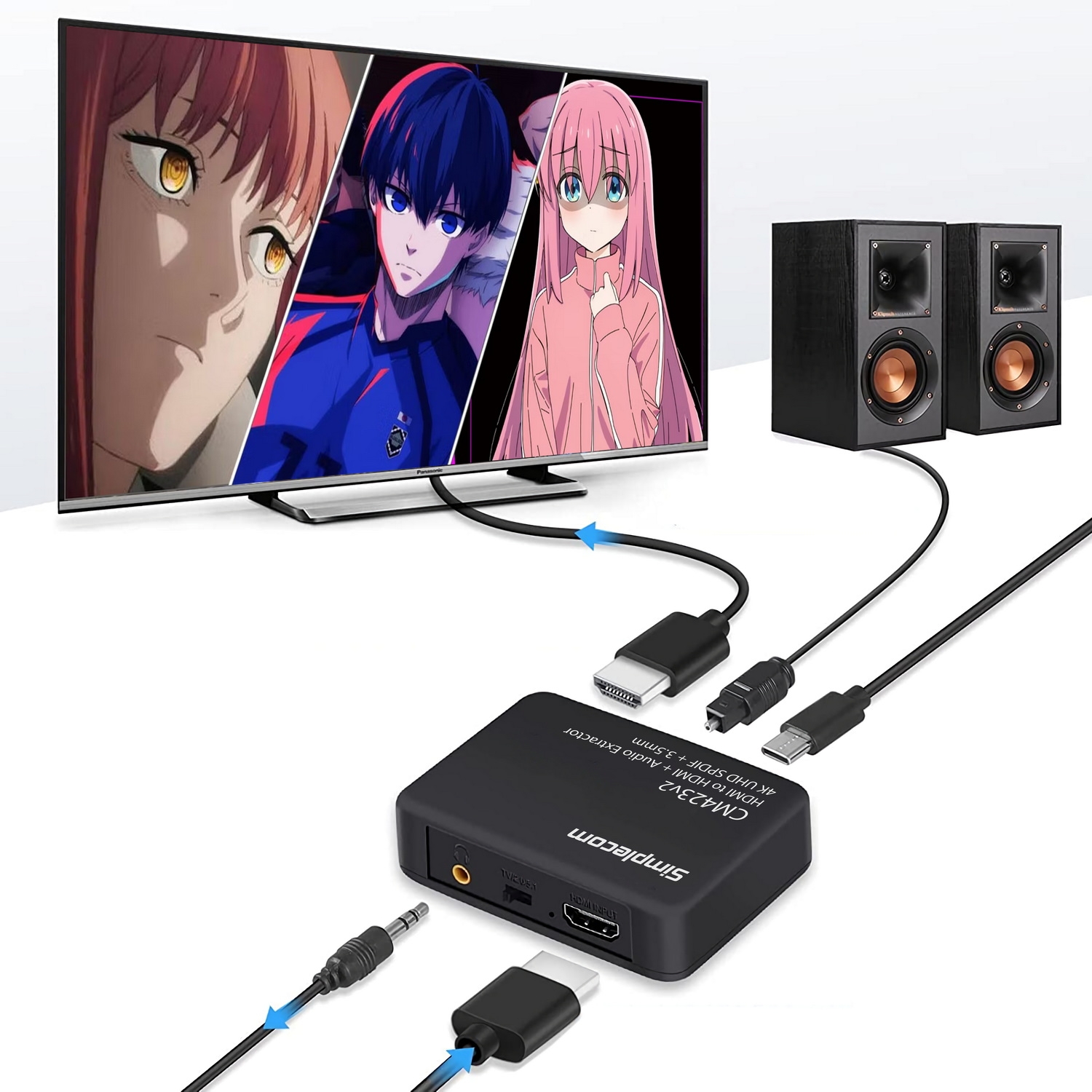

This HDMI 2.0 audio extractor supports video resolutions up to 4K at 60Hz and provides multiple audio output options including optical SPDIF and 3.5mm stereo. It features ARC compatibility for direct connection to ARC-enabled TVs, making it suitable for outputting audio to external speakers with analog or optical inputs. The device is designed for home theater setups, gaming, and streaming on 4K displays, with a compact form factor and USB power supply.

Features

  • Supports HDMI 2.0b standard for broad compatibility
  • Enables audio extraction from HDMI input or ARC-enabled HDMI source
  • Supports bandwidth up to 18Gbps and resolutions up to 4K@60Hz
  • Allows HDMI pass-through while extracting audio for external systems
  • Supports ARC for direct audio extraction from compatible TVs

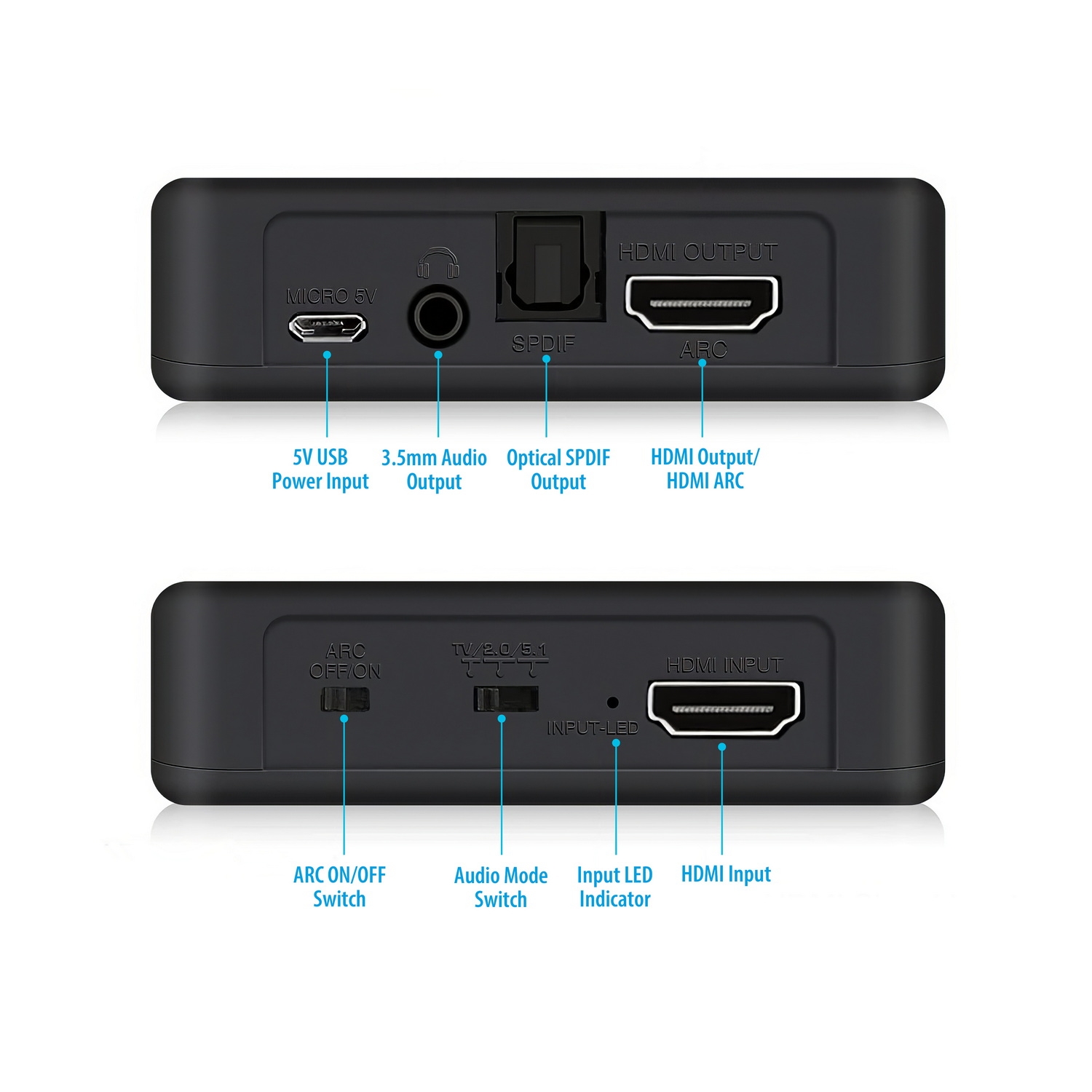

  • Provides optical SPDIF and 3.5mm stereo audio outputs
  • Complies with HDCP 2.2 for encrypted media compatibility
  • Powered via USB micro port
  • Supports compressed and uncompressed digital audio formats including Dolby Digital, Dolby TrueHD, DTS-HD, DTS, PCM, and LPCM

Specifications

  • HDMI Version: HDMI 2.0b (backward compatible)
  • Supported resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K@60Hz
  • Input: HDMI
  • Audio outputs: SPDIF (Optical), 3.5mm stereo
  • Video output: HDMI pass-through
  • ARC support: Yes
  • HDMI 3D support: Yes
  • HDCP version: HDCP 2.2
  • Maximum bandwidth: 600MHz
  • Maximum baud rate: 18Gbps
  • Color formats supported: 24bit, 30bit, 36bit deep color
  • Maximum input cable length: 10 meters with AWG26 HDMI cable
  • Power input: Micro USB (5V/1A)
  • Dimensions: 75 x 55 x 25mm
  • Weight: 43g

Package Content

  • HDMI audio extractor device
  • 0.5 meter HDMI cable
  • USB power cable
  • Optical audio cable
  • User manual

Specification

Weight 0.5000 kg
Dimensions 21.0000 × 14.0000 × 7.0000 cm
