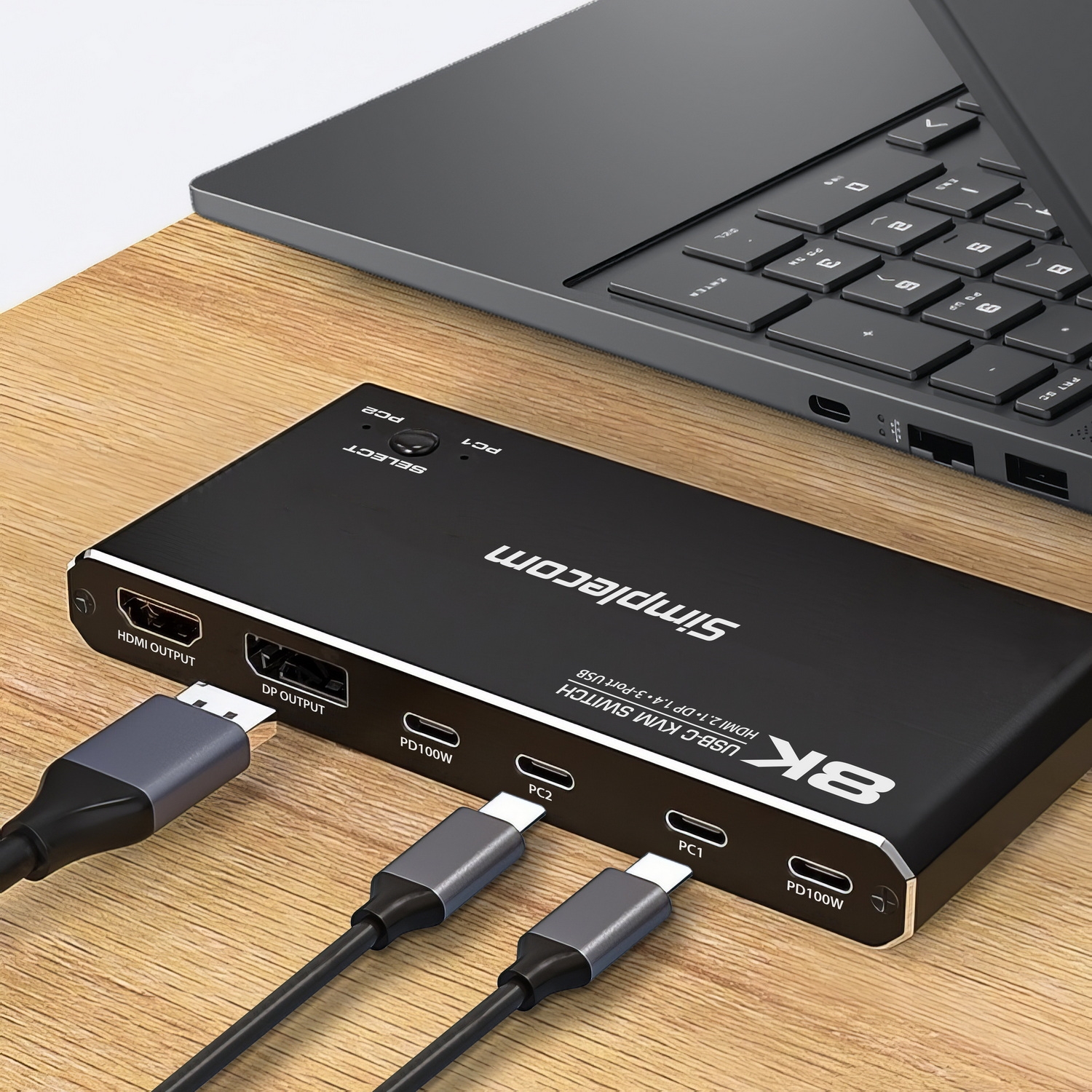

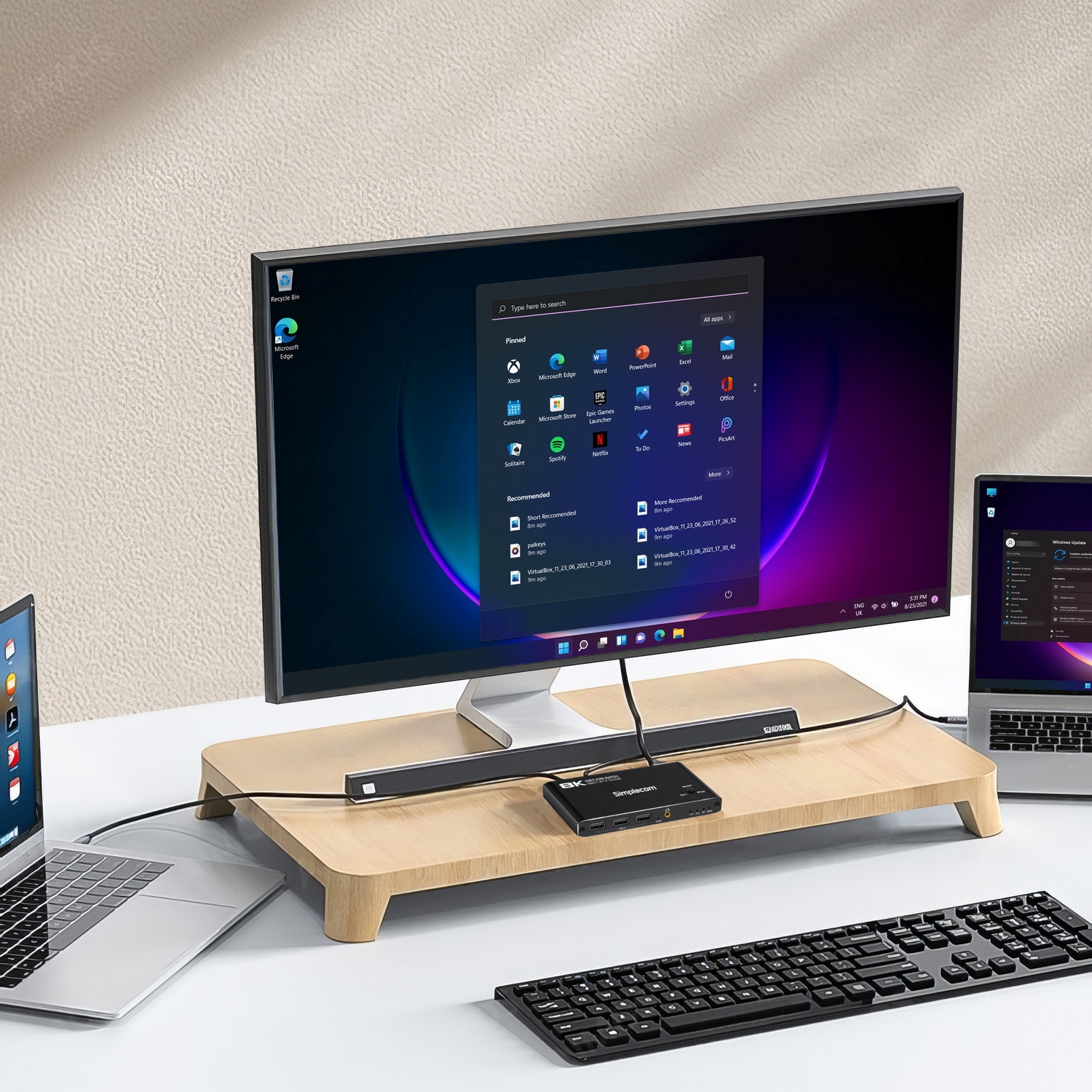

Simplecom KM470 2-Port USB-C KVM Switch 8K Docking Station HDMI 2.1 DP for Laptop Tablet

This device is a 2-port USB-C KVM switch that allows you to control two laptops using a single set of USB peripherals and one external display. It functions as a docking station, enabling easy toggling between two systems with a single button. The switch supports high-resolution video output and simultaneous charging, making it ideal for managing multiple devices efficiently.

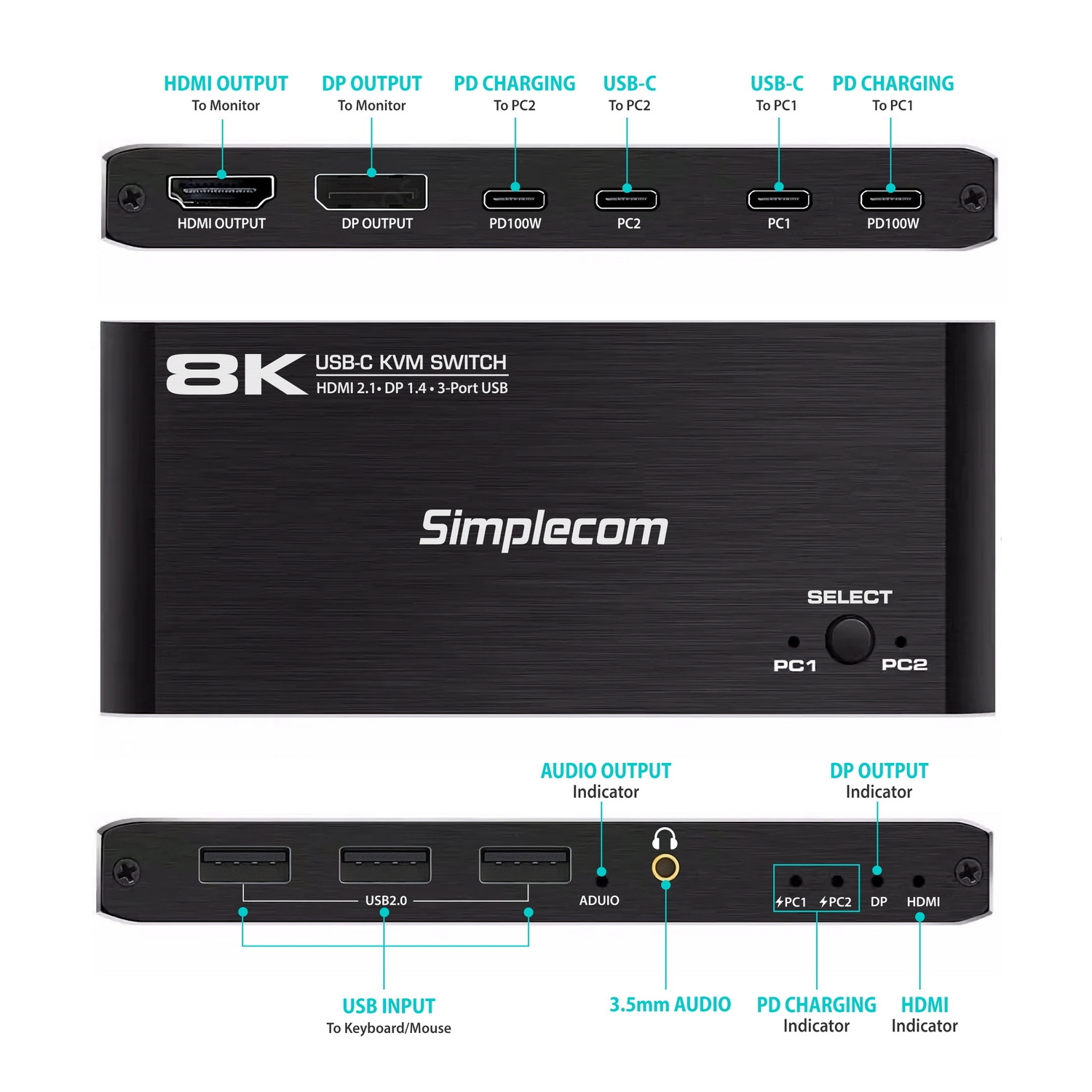

Features

• Allows two laptops to share an external display and USB peripherals
• Integrated docking station with a single USB-C connection for video, data, and power delivery
• Supports HDMI and DisplayPort output for connecting to monitors or TVs
• Includes a USB 2.0 hub for connecting peripherals such as mouse, keyboard, and printer
• Provides a 3.5mm audio jack for headphones or speakers
• Two USB-C Power Delivery ports for charging both laptops simultaneously
• Supports video resolutions up to 8K at 30/60Hz with HDMI 2.1 and DisplayPort 1.4
• Plug-and-play operation with hot-swappable functionality
• Durable aluminum alloy casing with heat dissipation
• LED indicators for active device and charging status

Specifications

• Model: KM470
• USB Upstream Ports: USB-C x2 (for connecting to laptops)
• USB Downstream Ports: USB 2.0 x3 (for peripherals)
• PD Charging Ports: USB-C x2 (up to 100W each)
• Video Output: HDMI 2.1 x1, DisplayPort 1.4 x1
• USB Max Bandwidth: 480Mbps
• HDMI Max Bandwidth: 48Gbps
• DisplayPort Max Bandwidth: 32.4Gbps
• Video Resolution: up to 8K@30/60Hz, 4K@60/120/144Hz, 1080p@60/120/165Hz
• Audio Output: 3.5mm audio jack
• Operating Temperature: 0 to 50??C
• Dimensions: 13 x 6.3 x 1.6 cm
• Weight: 109g
• Supported Operating Systems: Windows, MacOS, Chrome OS

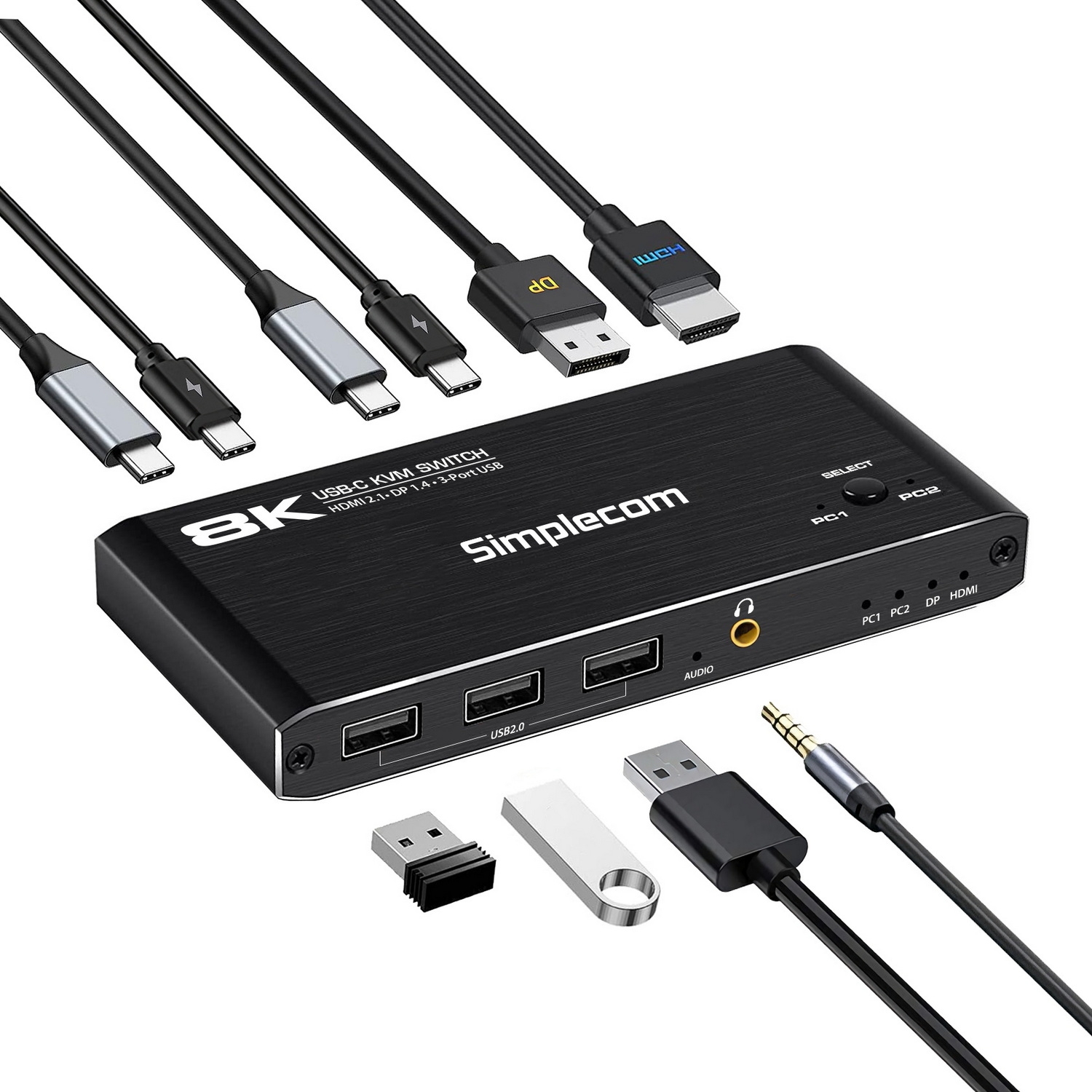

Package Content

• 1x USB-C KVM Switch
• 2x USB-C to USB-C cables
