Simplecom SD511 M.2 SSD Docking Station NVMe and SATA Dual Protocol USB 3.2 Gen 2 10Gbps

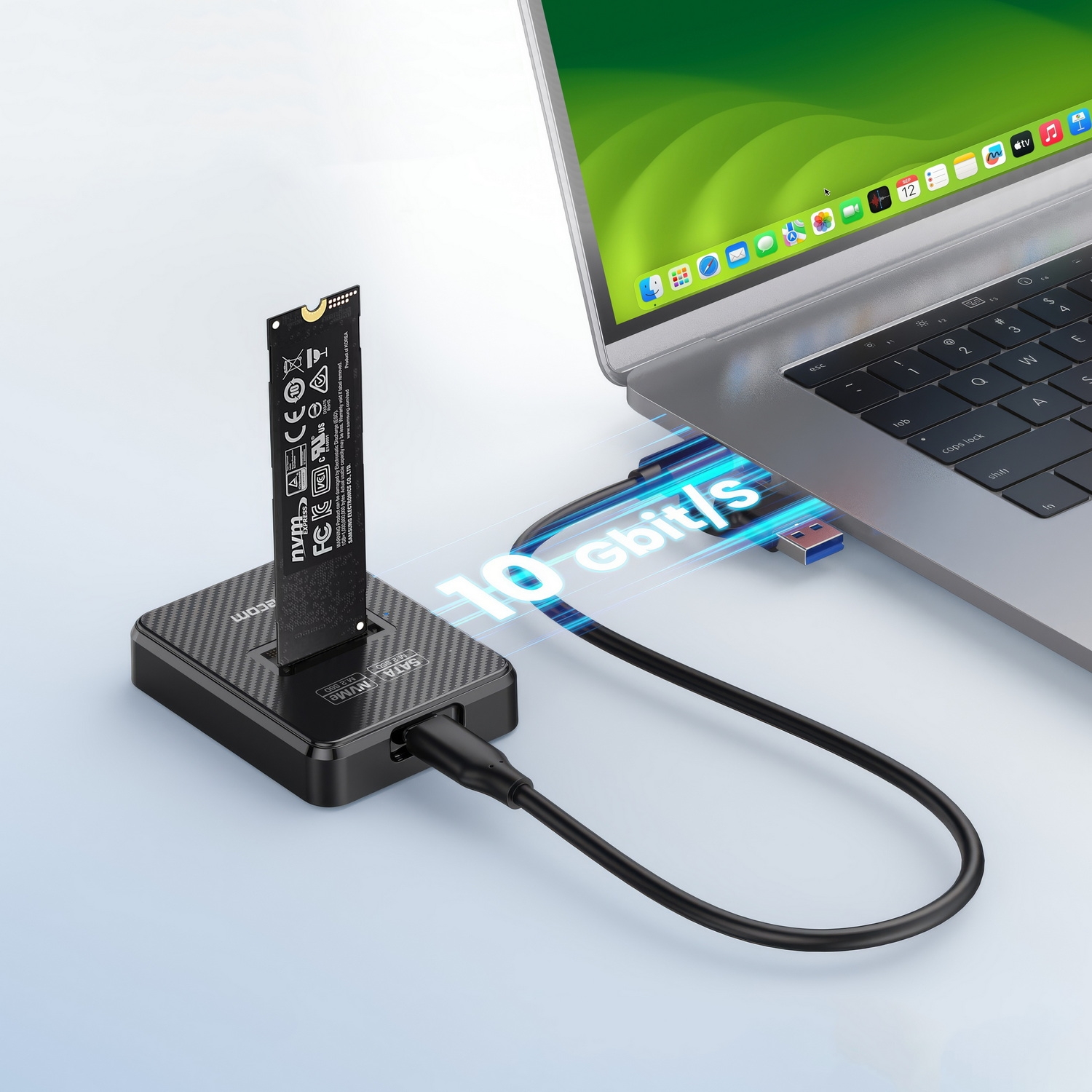

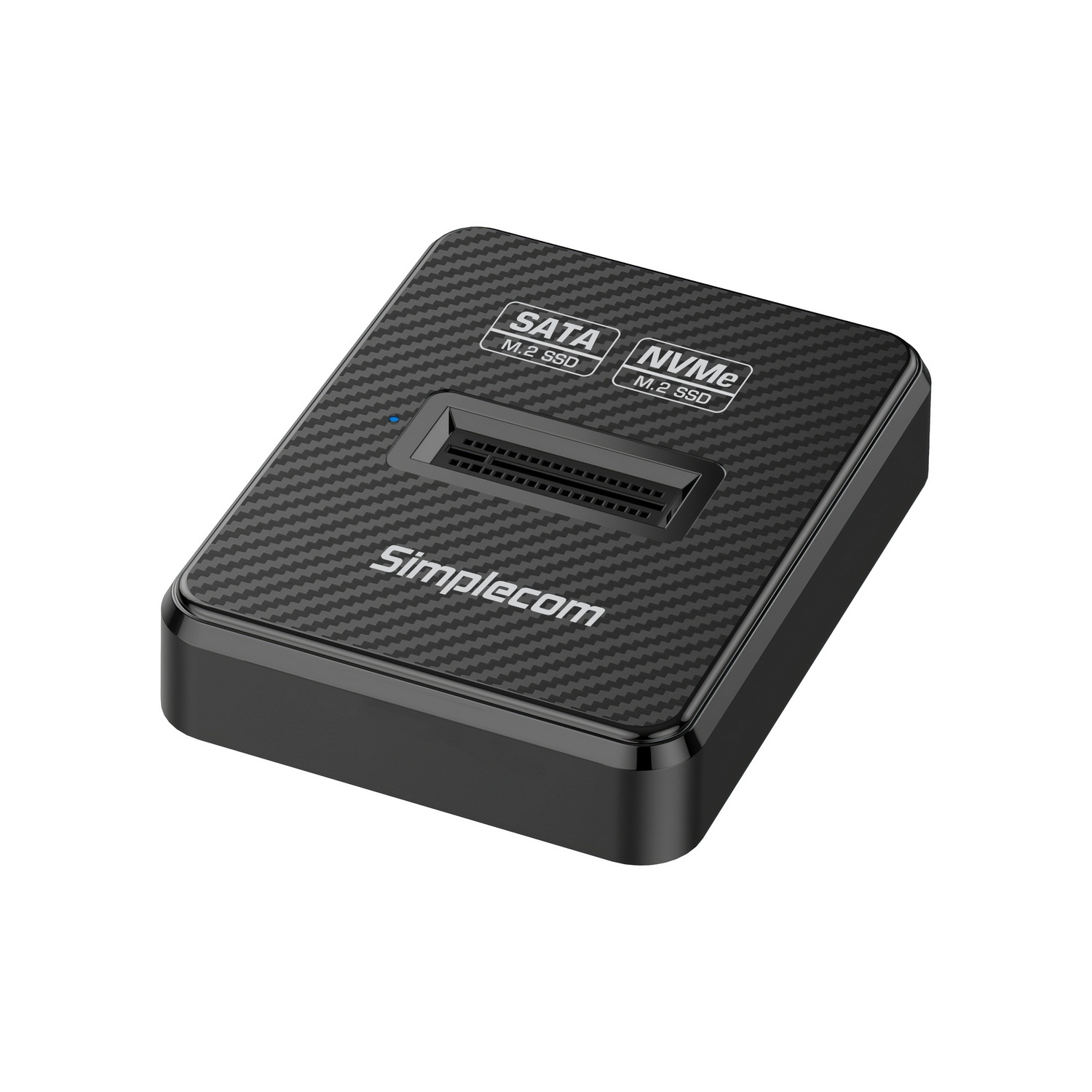

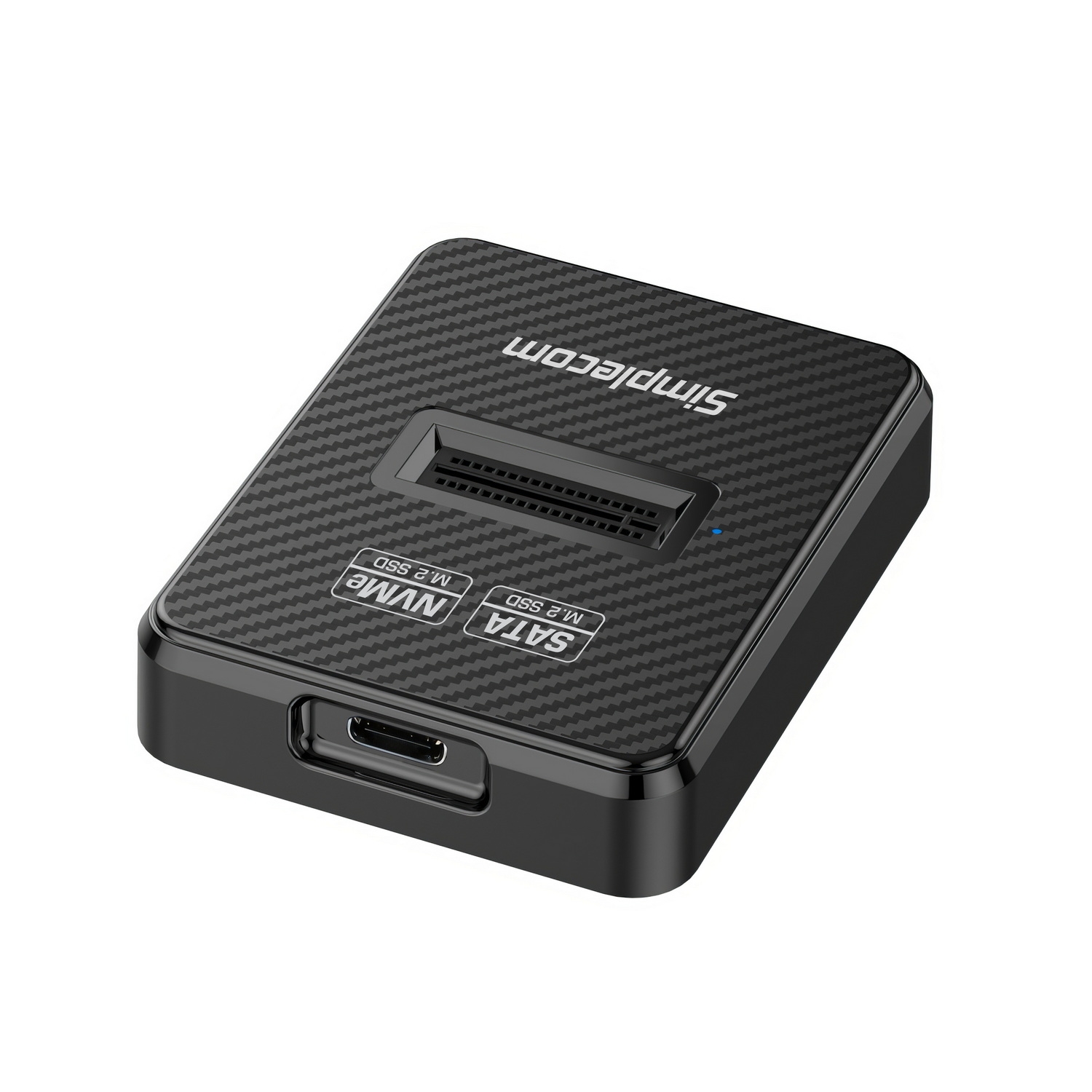

This M.2 SSD Docking Station offers a high-speed, versatile solution for accessing NVMe and SATA M.2 SSDs. It supports multiple M.2 sizes and provides quick, reliable connectivity through a USB 3.2 Gen 2 interface, making data transfer efficient and straightforward.

Features

• Supports both NVMe and SATA M.2 SSDs with dual protocol compatibility
• Compatible with M Key and B+M Key M.2 SSDs
• USB-C interface compliant with USB 3.2 Gen 2 standard
• Supports data transfer speeds up to 10Gbps
• Includes USB-C and USB-A combo cable for flexible device connection
• Supports UASP for faster data transfer and TRIM for SSD longevity
• Plug-and-play design requiring no driver installation
• LED indicator for power and activity status
• Powered via USB, no external power needed

Specifications

• Model: SD511
• Material: ABS Plastic
• Interface: USB-C (USB 3.2 Gen 2)
• Transfer Rate: NVMe up to 10Gbps, SATA up to 6Gbps
• Supported M.2 Types: NVMe and SATA

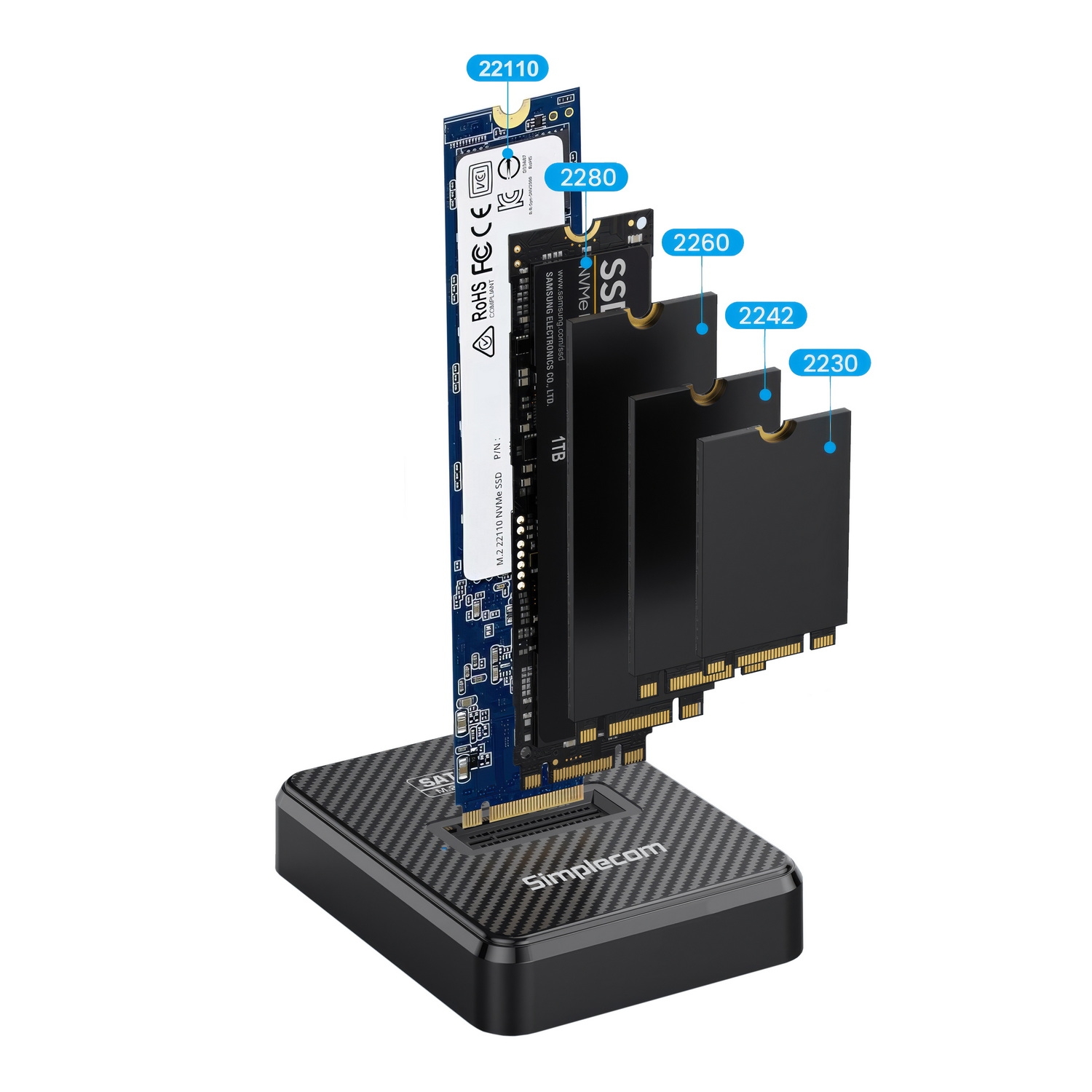

• Supported M.2 Sizes: 2230, 2242, 2260, 2280, 22100
• Dimensions: 66 x 51 x 13mm
• Weight: 40g
• Operating System Support: Windows 7 and later, macOS 10.8 and later, Linux

Package Content

• 1x M.2 SSD Docking Station
• 1x USB-C + USB-A combo cable
• 1x User Manual
