Simplecom SD560 Dual Bay NVMe M.2 SSD Enclosure Offline Clone Docking Station USB 3.2 Gen2 10Gbps

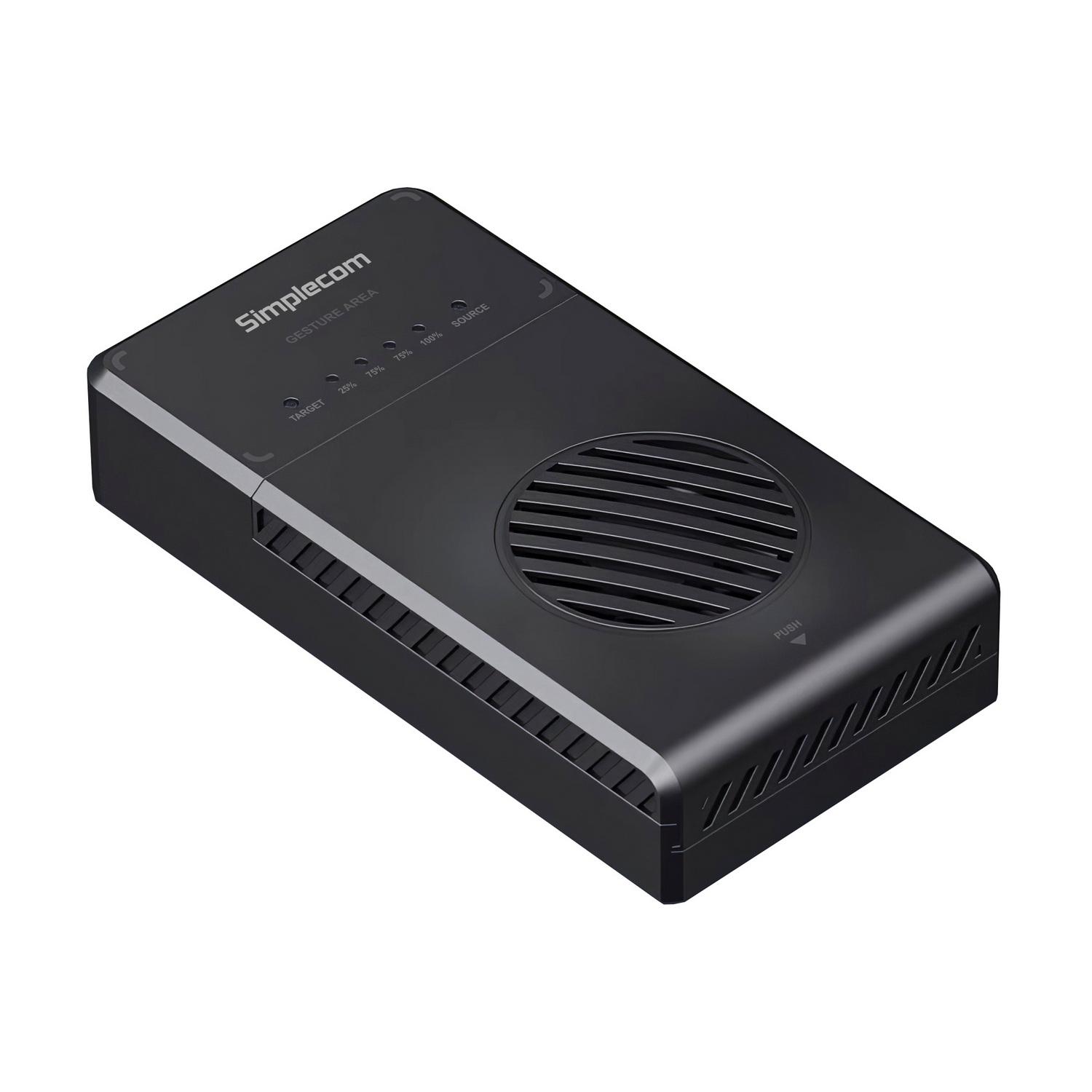

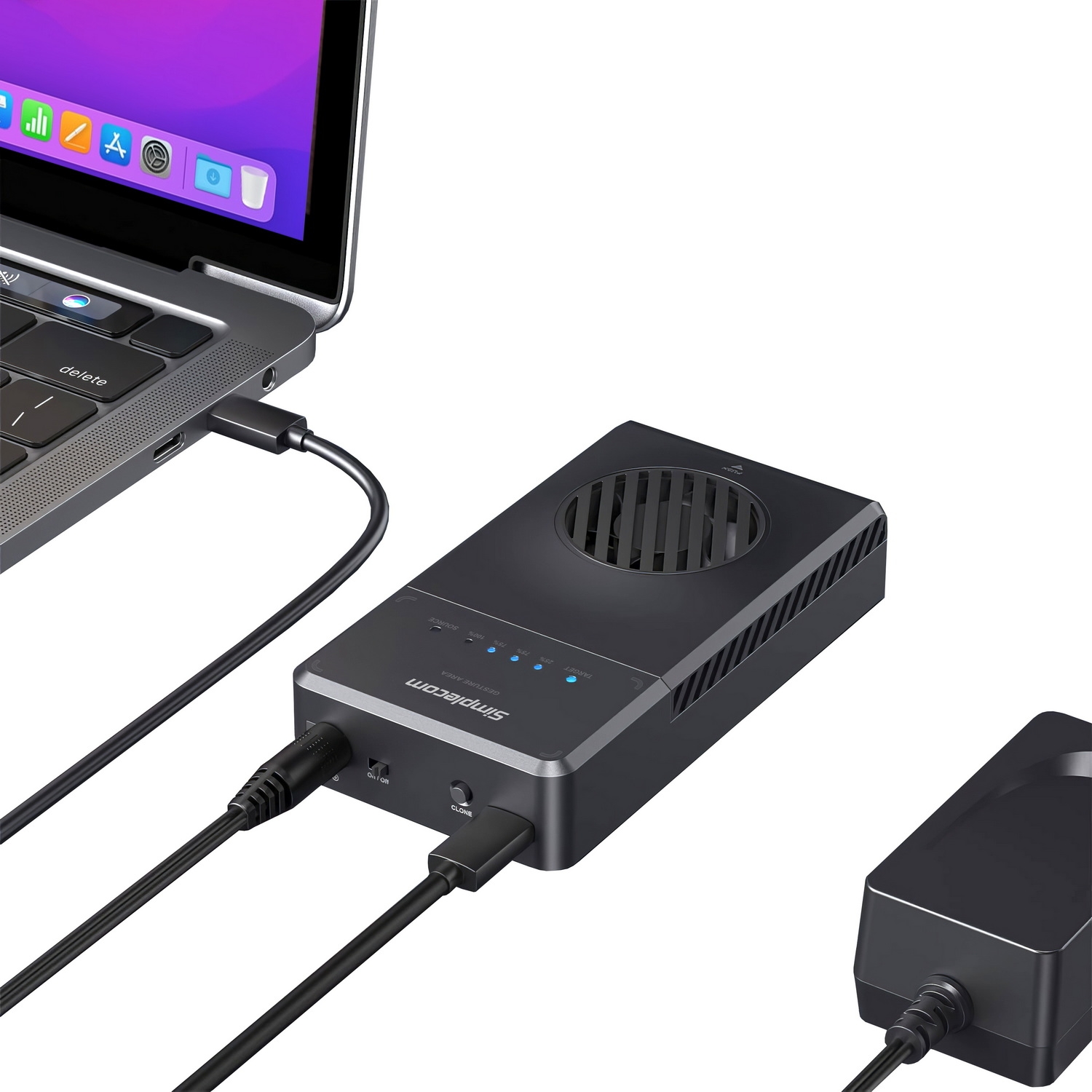

This dual bay NVMe M.2 SSD docking station allows for simultaneous access to two NVMe M.2 SSDs from a computer. It can also function independently as a standalone duplicator, enabling easy cloning of NVMe M.2 SSDs without a host PC. The device features a cooling fan to maintain optimal operating temperatures, ensuring stable performance during data transfer. It supports multi-LUN for efficient file transfer and backup between drives, with each drive recognized separately. The docking station offers a compact, portable design with a sliding lid for quick installation and removal of SSDs, making it suitable for data backup, batch processing, formatting, and recovery tasks.

Features

• Supports dual NVMe M.2 SSDs for simultaneous access
• Supports multi-LUN with separate drive letters for each slot
• USB 3.2 Gen2 interface with data transfer rates up to 10Gbps

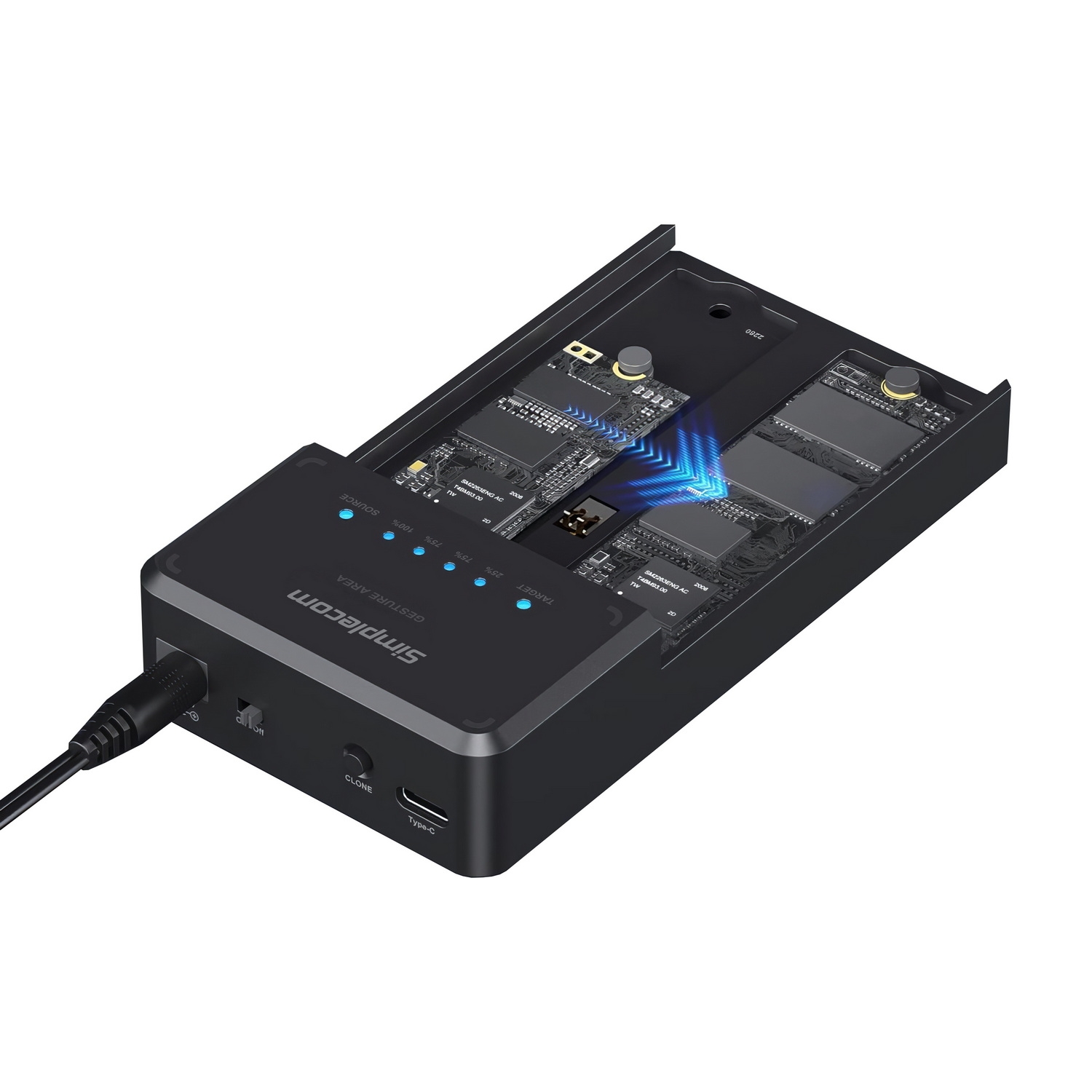

• Enables offline cloning without a host computer
• Built-in cooling fan for effective heat dissipation
• Automatic fan control, turning off when SSDs are idle

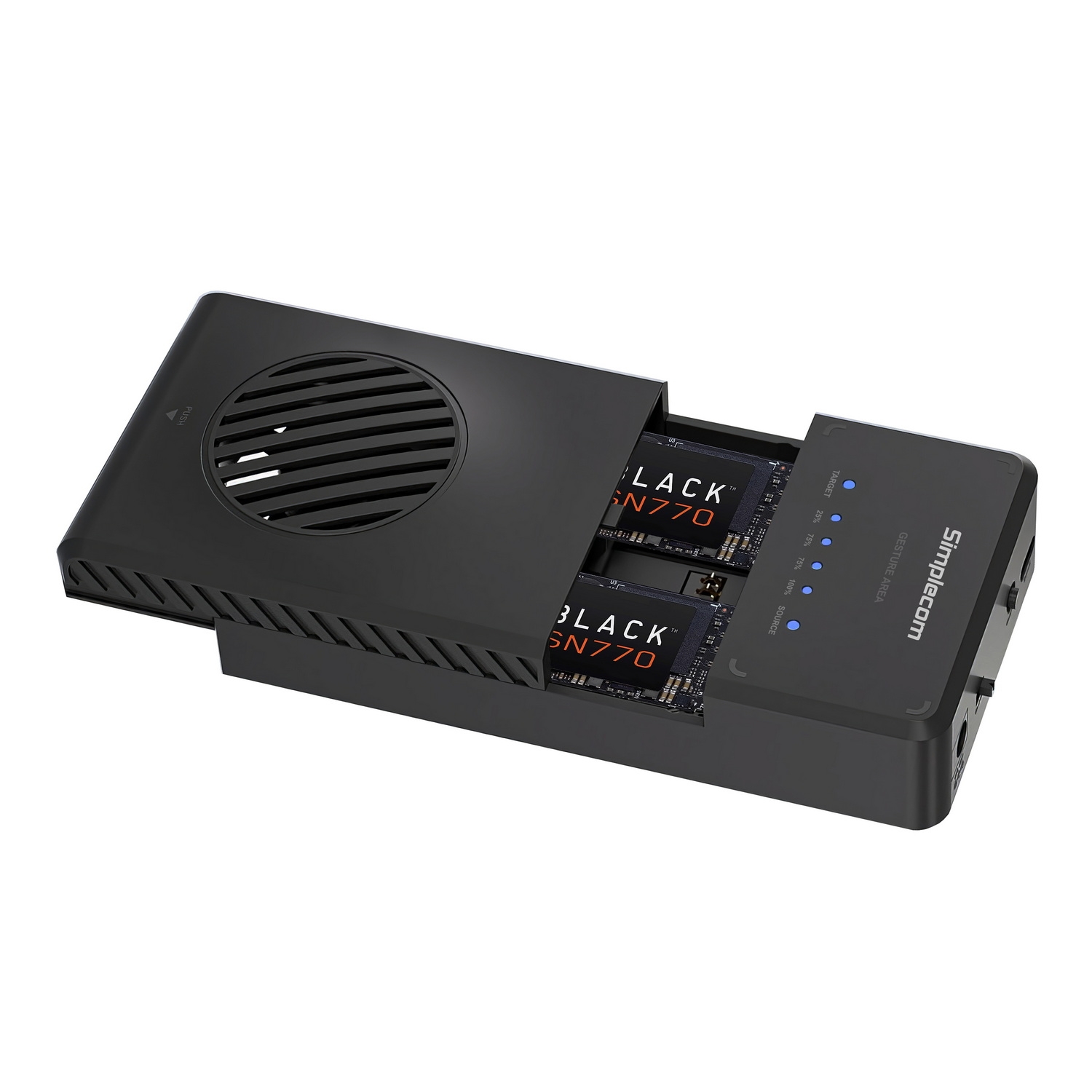

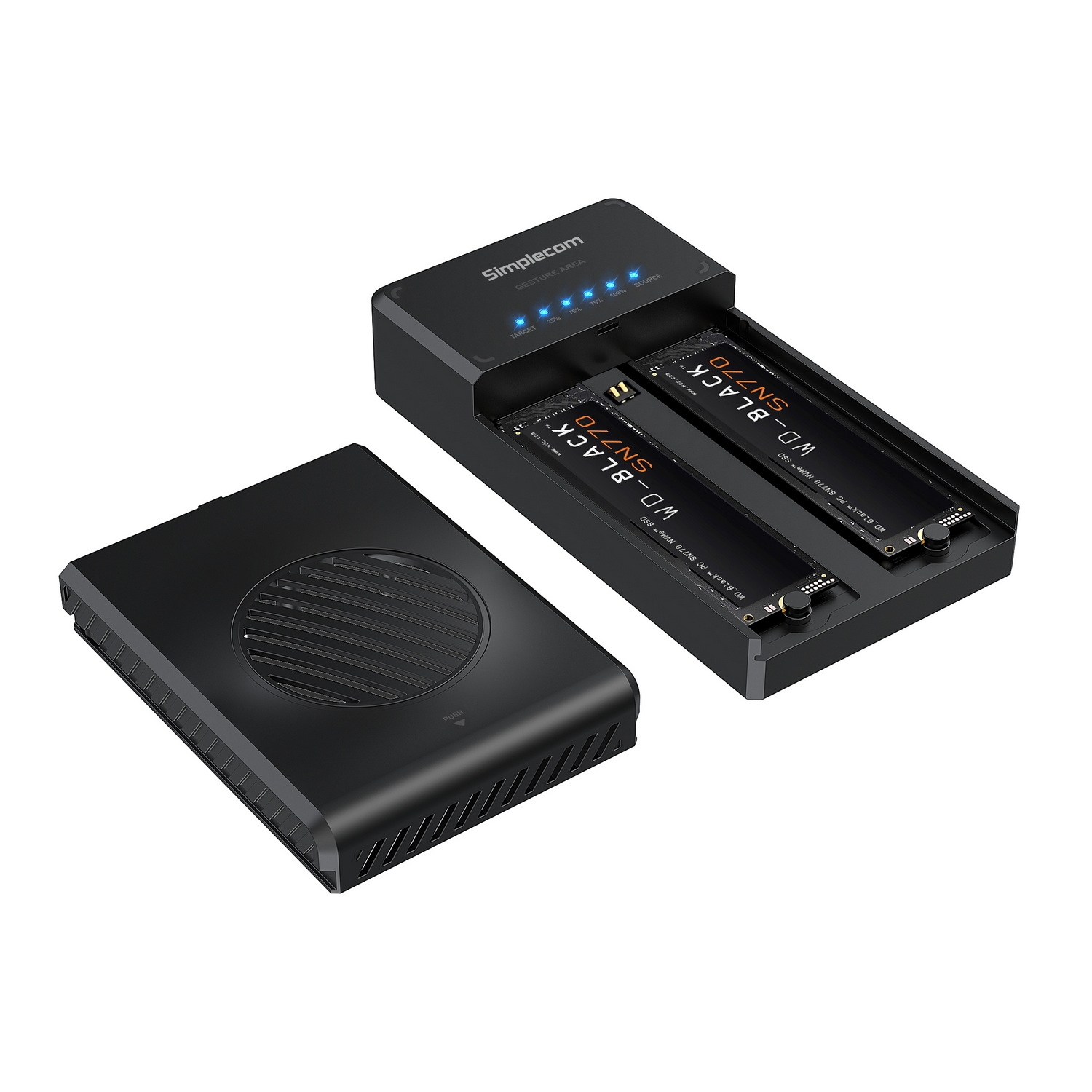

• Compact and portable with a tool-free sliding lid design
• LED indicators for power and activity status

Specifications

• Model: SD560
• Interface: USB-C (USB 3.2 Gen 2)
• Maximum Data Transfer Rate: 10Gbps
• Supported SSD Type: NVMe M.2 only
• Supported SSD Sizes: 2230, 2242, 2260, 2280
• Multi-LUN Support: Yes
• Power Input: 12V 2A
• Materials: ABS and Aluminum
• Net Weight: 115g
• Dimensions: 125 x 65 x 25mm
• Cooling Fan: 4410 5V fan with auto-on/auto-off feature
• Supported Operating Systems: Windows 7 and above, Mac OS 10.8 and above

Package Content

• 1x SD560 Docking Station
• 1x USB-C and USB-A Combo Cable
• 1x Power Adapter (12V 2A)
• 1x User Manual
