UL-tech 4CH DVR 1080P 5in1 CCTV Video Recorder

This 4-channel DVR is designed to enhance your CCTV surveillance system with versatile connectivity and advanced features. It supports multiple camera technologies, remote access, motion detection, and data protection, making surveillance efficient and reliable. The device allows live viewing, recording, and playback through various outputs and network options, ensuring comprehensive security management.

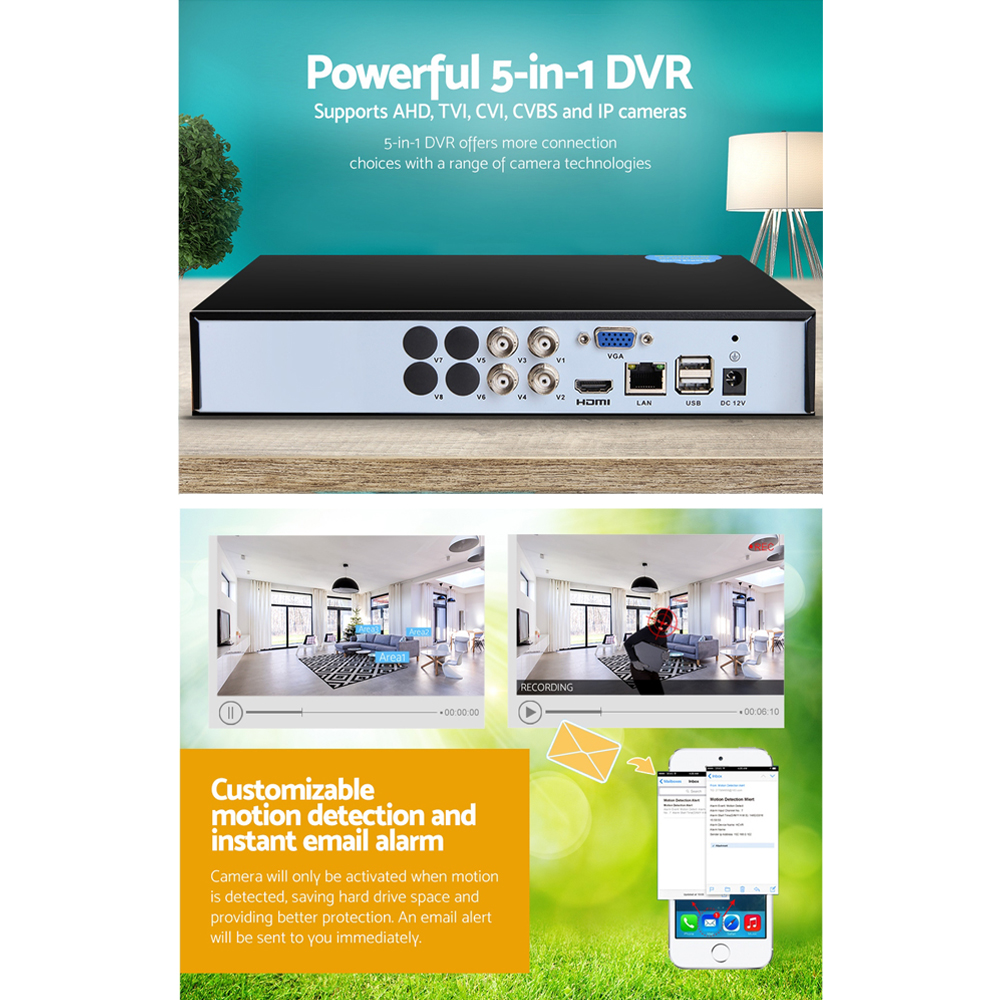

• Supports AHD, TVI, CVI, CVBS, and IP cameras
• Supports P2P technology for remote access
• Allows live viewing on smartphones and computers
• Features customizable motion detection and email alerts
• Includes HDMI and VGA outputs for versatile display options
• Supports USB backup and storage
• Provides data protection during power outages
• Enables simultaneous 4-channel live viewing and recording
• Supports cloud system for remote access
• Includes a USB mouse for easy operation

Specifications:

• Video Codec: H.264
• Monitor Quality: VGA, HDMI (HD)
• Preview Ability: 4 channels at 1080N
• Encoding Ability: 4 channels at 1080N@12fps
• Decoding Ability: 4 channels at 1080N@12fps
• Input Modes: Analog 4*1080N, 4*AHD-M, 4*AHD-L, hybrid options available
• Network Input: 4*720P/1080P, 8*720P/1080P, 1*1080P
• Motion Detection: 192 detection areas per screen, multi-level sensitivity

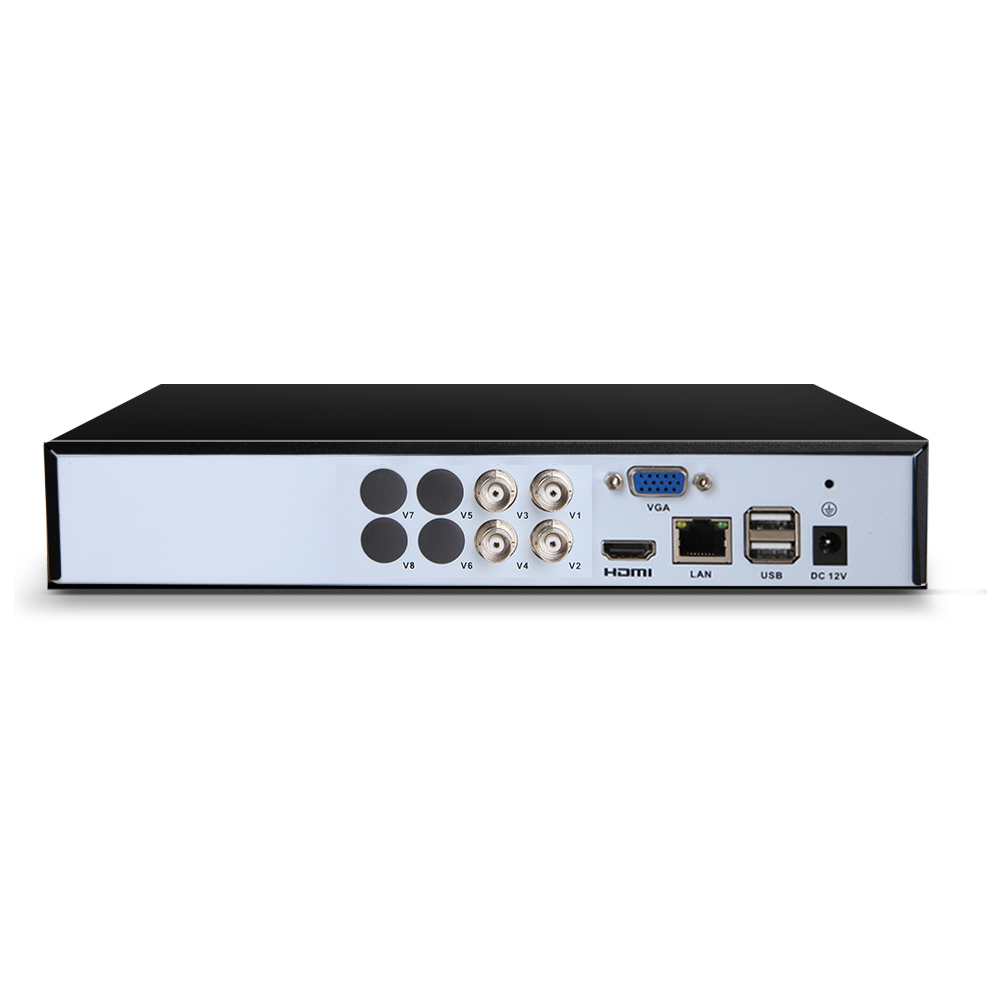

• Video Inputs: 4ch BNC
• Video Outputs: VGA, HDMI
• Network Interface: RJ45 10M/100M
• PTZ Control: RS485 port supporting various protocols
• USB Ports: 2 x USB 2.0
• HDD Support: 1 SATA port, max 6TB
• Power Supply: 12V/2A

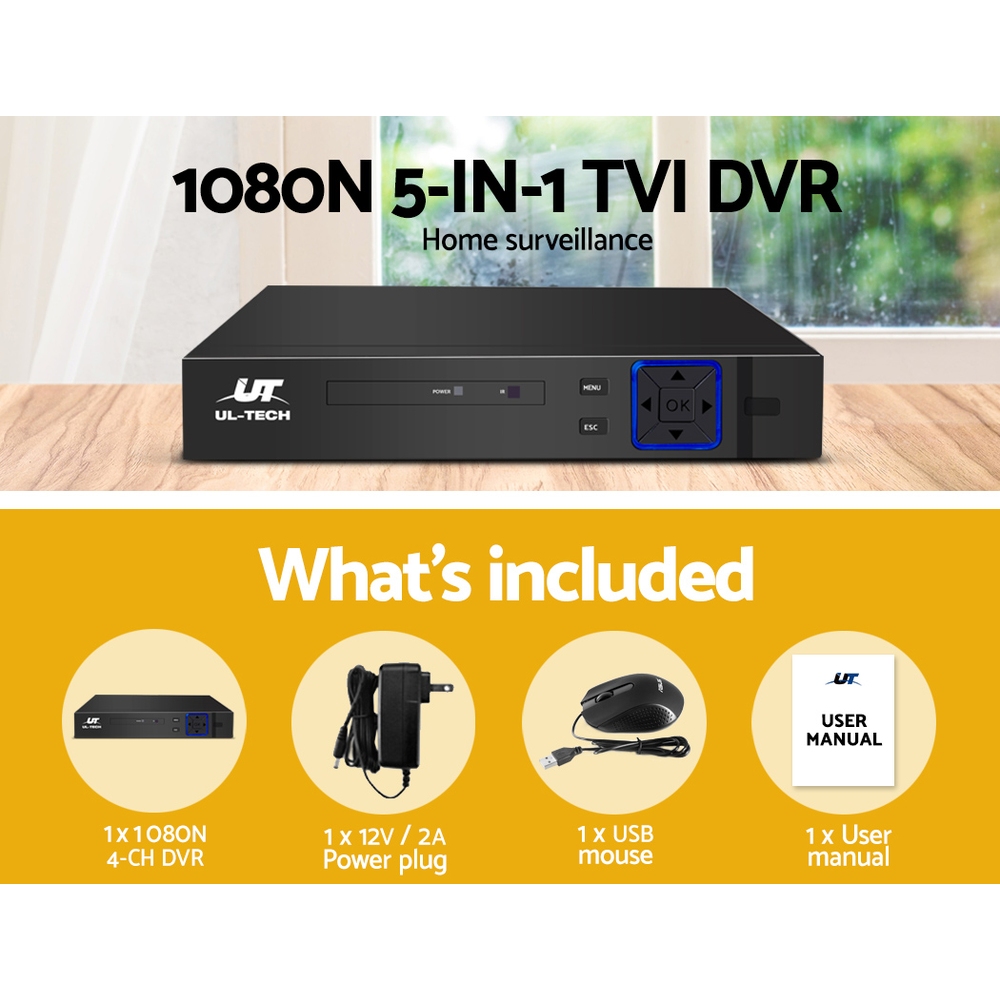

Package Content:

• 1 x 1080N 4CH DVR
• 1 x 12V/2A power adapter
• 1 x USB mouse
• 1 x Network cable
• 1 x Mounting screws pack
