X-BULL Electric Winch 12V 4500LBS Synthetic Rope Wireless remote ATV UTV Boat Trailer

This electric winch is designed for off-road, ATV, UTV, boat, and trailer applications, offering reliable performance with a high-efficiency motor and durable construction. It features a synthetic rope for safety and ease of use, along with a wireless remote control for convenient operation. The winch is built to handle demanding tasks with a robust gear system and high-quality components, ensuring long-lasting service.

• High-performance 12V DC motor with 1.9 HP and pure copper windings for high efficiency and safety
• 3-Stage planetary gear system for smooth operation, high speed ratio, and reliable deceleration and reversal
• Heavy-duty synthetic rope with a diameter of 5.5mm and length of 15.2m
• Wireless remote control with a 12ft (3.7m) cable for easy operation from a distance
• Wired handlebar control with an 8ft (2.4m) cable for manual operation
• Heavy gauge cables and solenoid relays for stable power delivery and protection
• Automatic mechanical load-holding brake for safety during operation
• IP68 rated waterproof design for winch and controls, resistant to immersion up to 3 feet
• Mounting pattern of 3″x4.88″ (76.2mm x 124mm) suitable for various installation setups

Rated single line pull: 4500 lbs (2041 kg)
Wire rope: 5.5mm x 15.2m
Overall dimensions: 13.3″ x 4.25″ x 4.5″ (338mm x 108mm x 114mm)
Weight: 25 lbs (11.3 kg)
Duty cycle rating: 5% (45 seconds at maximum load, with 14 minutes and 15 seconds rest)
Application: ATV/UTV, boat, trailer

• Motor: 12V DC, 1.9 HP, permanent magnet
• Geartrain: 3-Stage planetary
• Freespool: Cam activated
• Hook: 1/4″ clevis with spring-loaded safety latch
• Drum diameter x length: 2″ x 2.9″ (50mm x 74mm)
• Sound rating: 85 dB

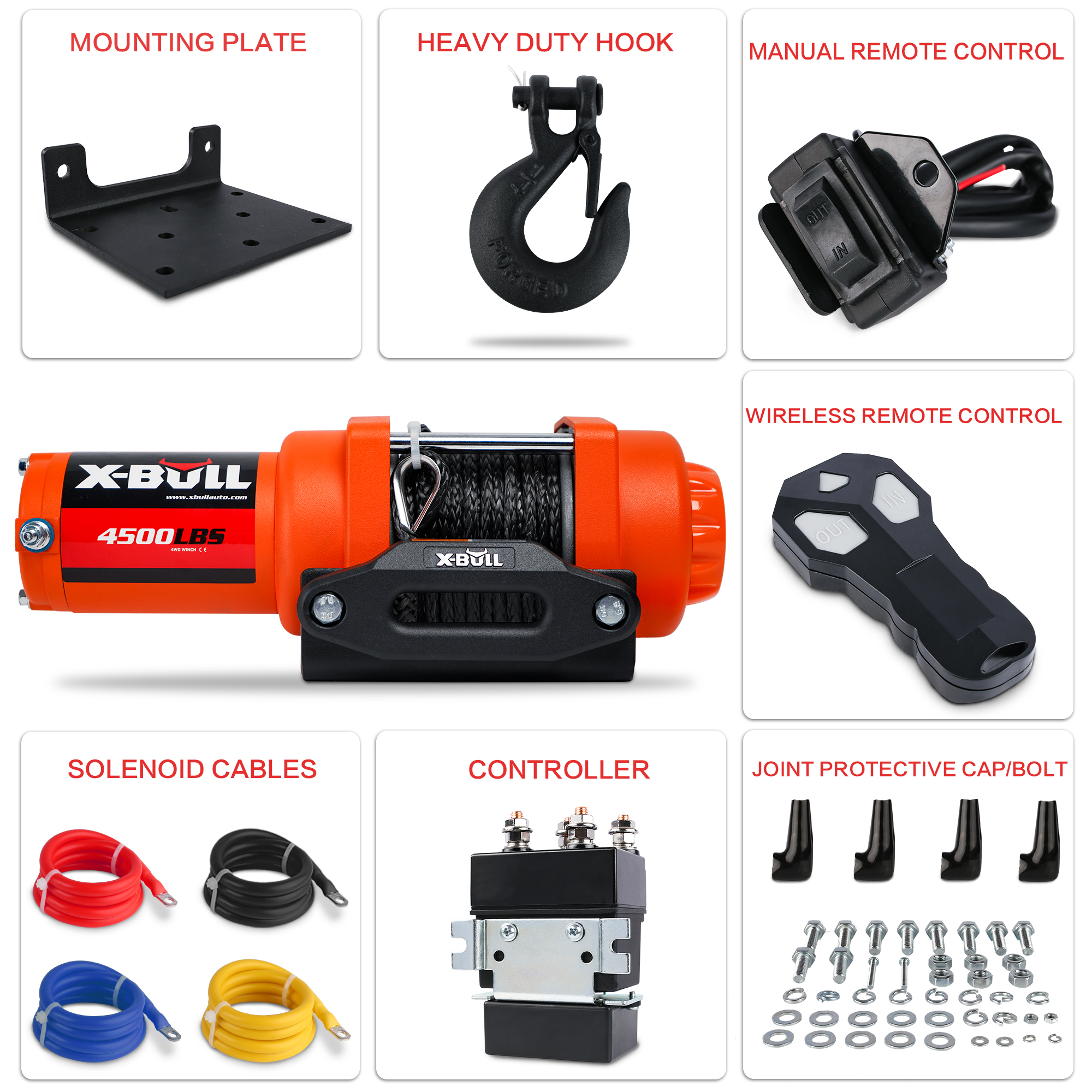

Package includes the winch, wired remote control, handlebar controller, mounting hardware, and necessary cables for installation and operation.
