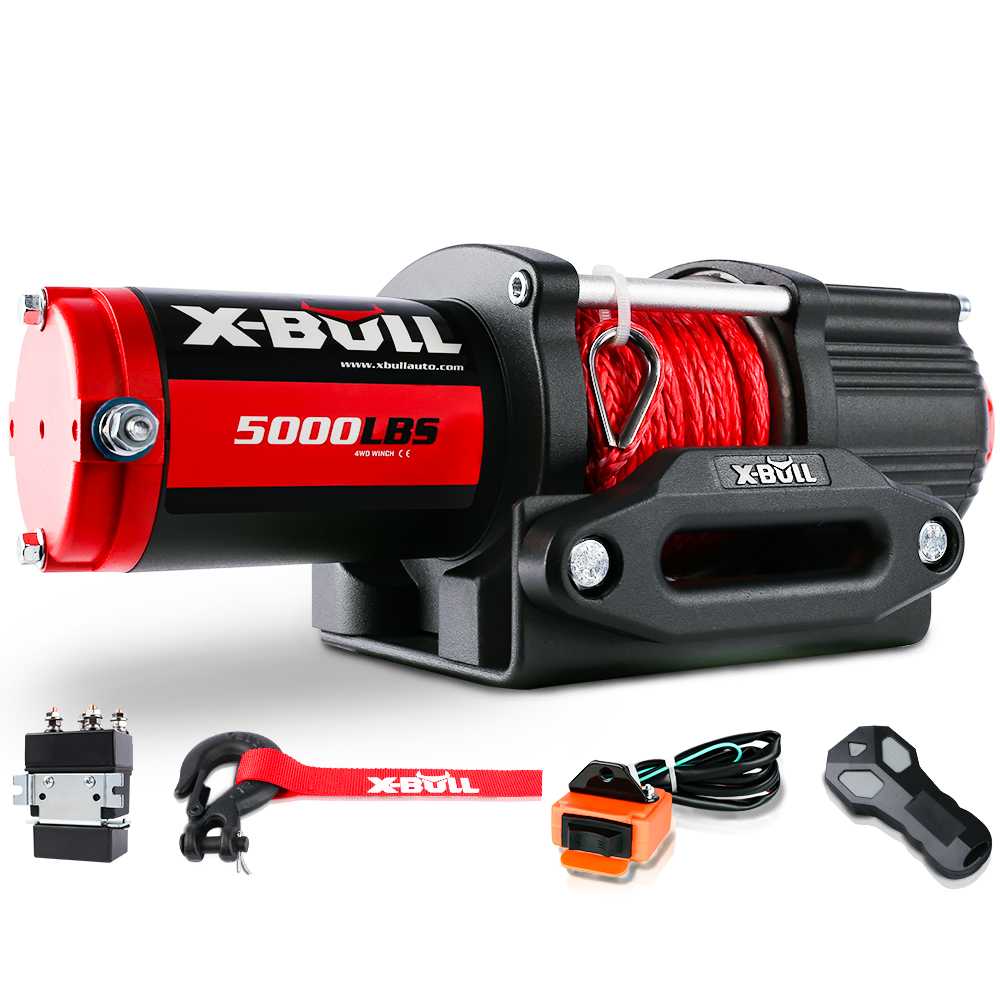

X-BULL Electric Winch 12V 5000LBS Synthetic Rope Wireless remote ATV UTV Boat Trailer

This electric winch is designed for versatile off-road and recreational applications, providing reliable pulling power with a durable construction. It features a synthetic rope for safety and ease of use, along with a wireless remote control for convenient operation. The winch is suitable for use on ATVs, UTVs, boats, and trailers, making it a versatile tool for various recovery and pulling tasks.

• High-efficiency motor with pure copper windings for strong power and high temperature resistance
• Durable solenoid relay with 500A capacity to ensure stable operation and prevent damage
• 3-Stage planetary gear system for high speed ratio, differential, deceleration, and reversal functions
• Wireless remote control for easy operation from a distance
• Freespool feature activated by a cam for quick rope payout
• Aluminium hawse fairlead for smooth rope guiding
• Heavy-duty mounting plate and bolts for secure installation
• Includes a clevis hook with safety latch for secure attachment

Specifications

• Rated single line pull: 5000 lbs (2268 kg)
• Steel cable: 1/4 inch x 50 feet (6.3 mm x 15.2 m)
• Power supply: 12V DC, minimum 12Ah battery required
• Duty cycle: 5% (45 seconds at maximum load, with rest periods)
• Overall dimensions: 15.8 inches x 4.6 inches x 4.7 inches (400 mm x 116 mm x 119 mm)
• Mounting pattern: 3 inches x 6.6 inches (76.2 mm x 167.6 mm)
• Gear train: 3-Stage planetary
• IP rating: IP66, resistant to powerful water jets
• Weight: approximately 26.45 lbs (12 kg)

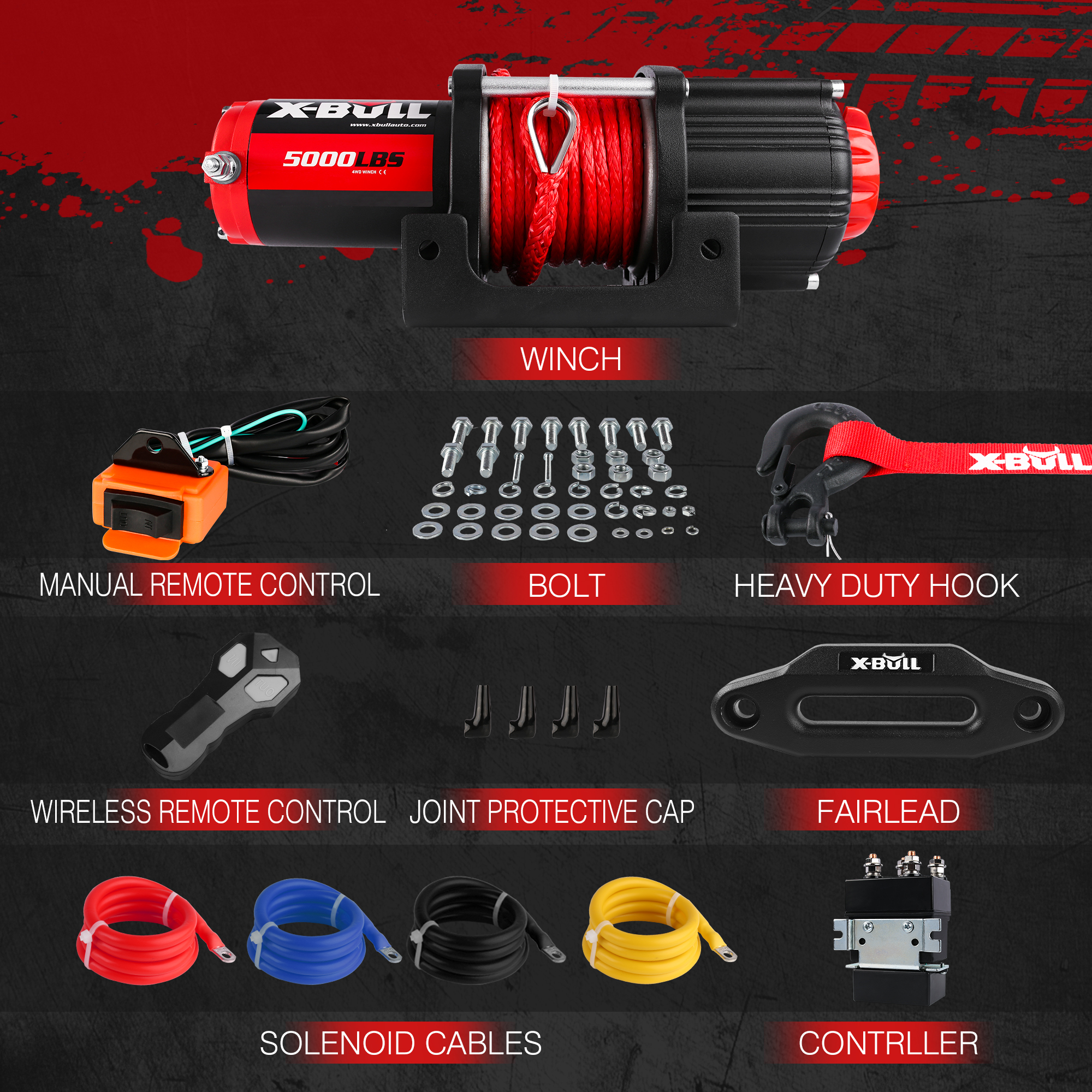

Package Content

• Electric winch with synthetic rope
• Wireless remote control
• User manual
• Aluminium hawse fairlead
• Joint protective caps
• Controller (solenoid and receiver)
• Winch mounting plate
• Solenoid cables
• Set of bolts
• Clevis hook with safety latch
• Hand remote control
