X-BULL Electric Winch 5000LBS 12V 15.2M Synthetic Rope Wireless ATV UTV 4WD Boat

This electric winch is designed for off-road, ATV, UTV, and boat applications, providing reliable pulling power with a rated single line pull of 5000 pounds. It features a durable synthetic rope, a robust motor, and a high-efficiency planetary gear train, ensuring strong performance and ease of use in various demanding environments.

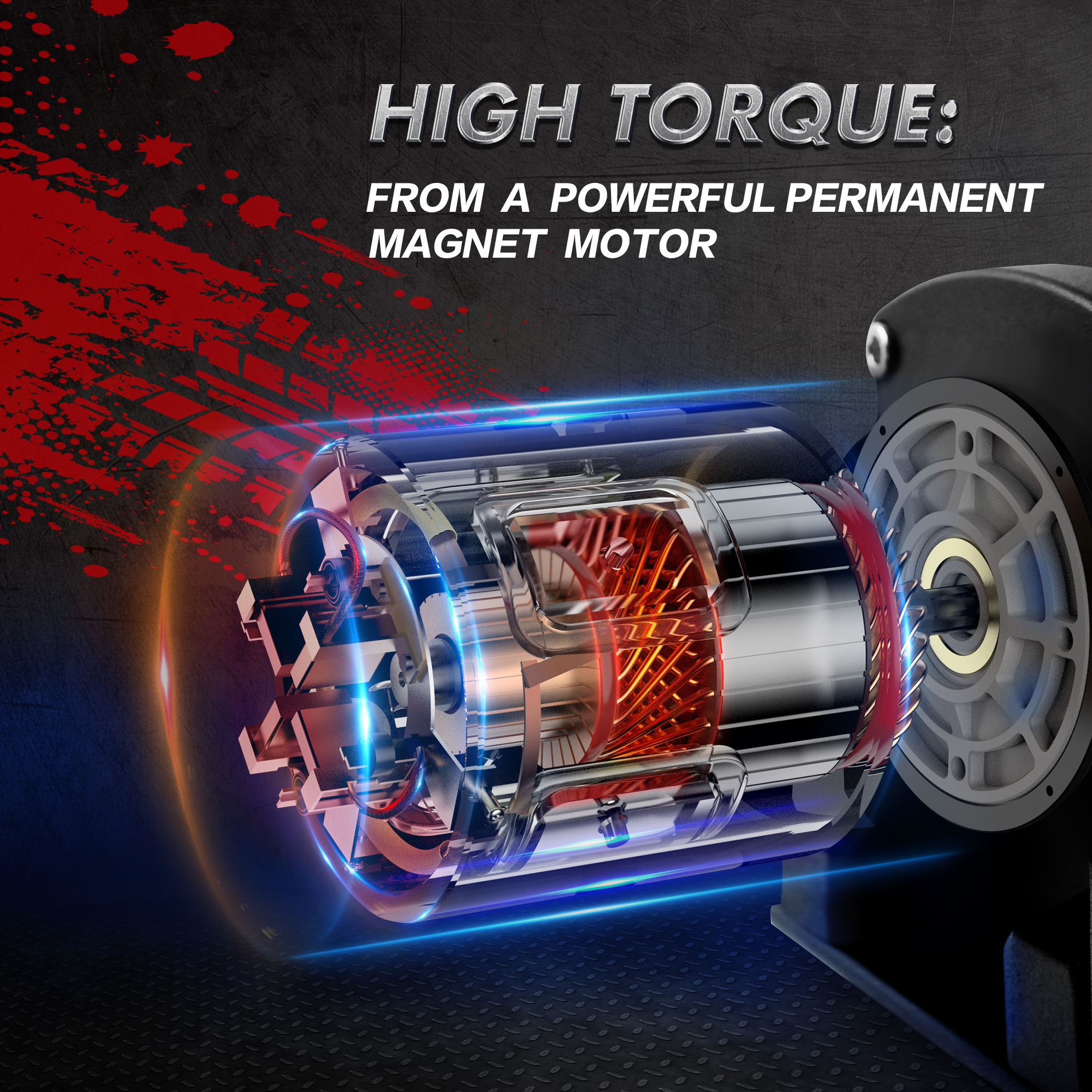

• High-capacity 12V motor with copper windings for high efficiency and safety

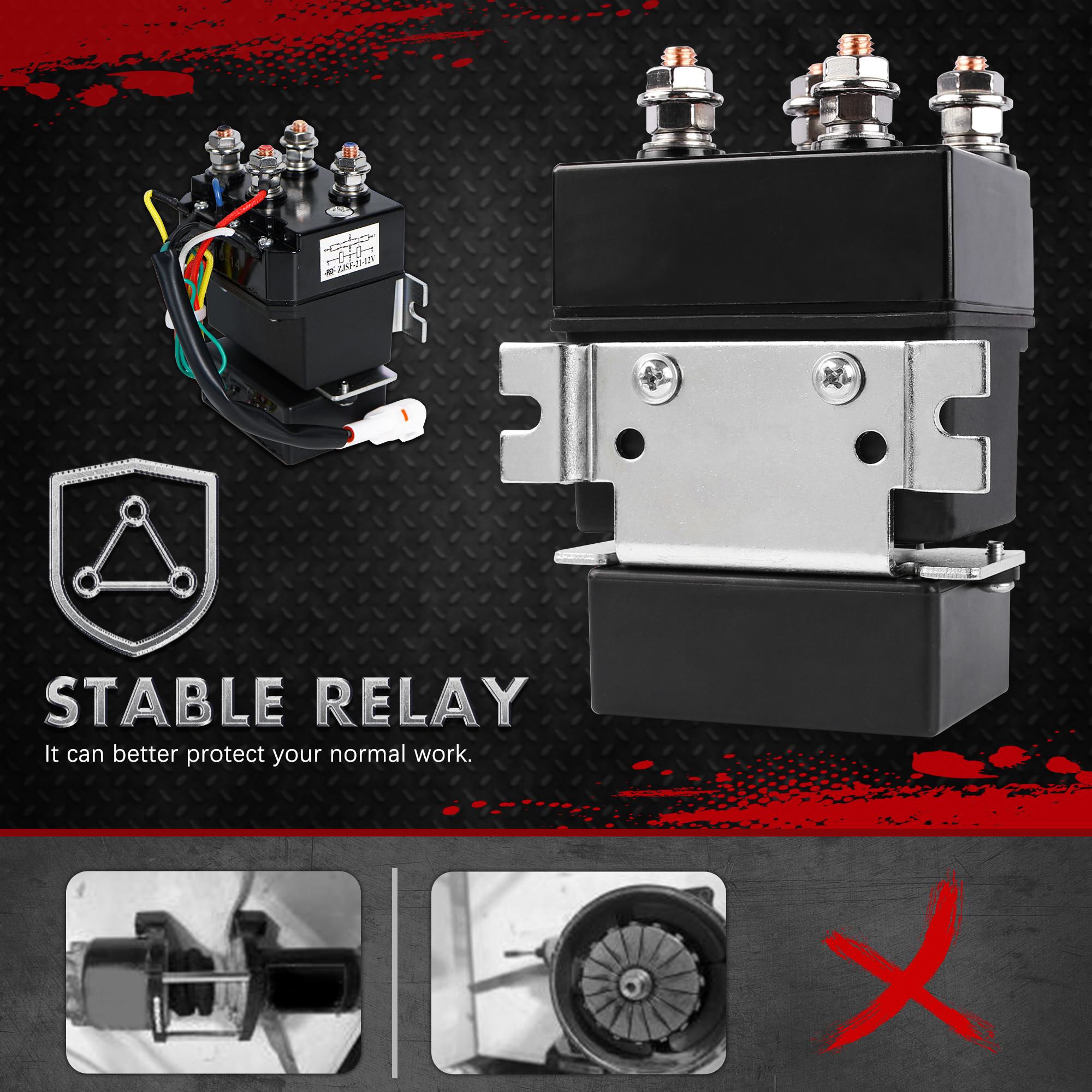

• Powerful 500A relay for stable operation and protection against damage

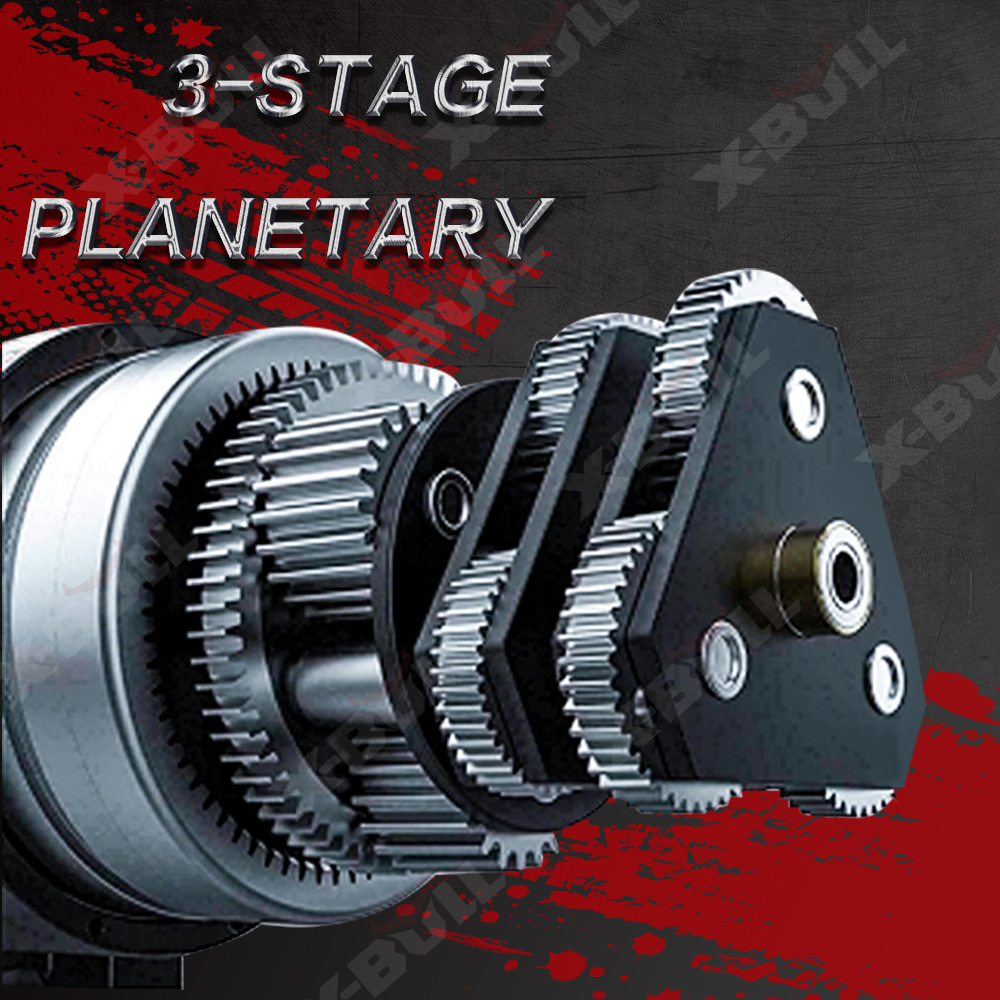

• 3-Stage planetary gear system for high speed ratio and smooth operation

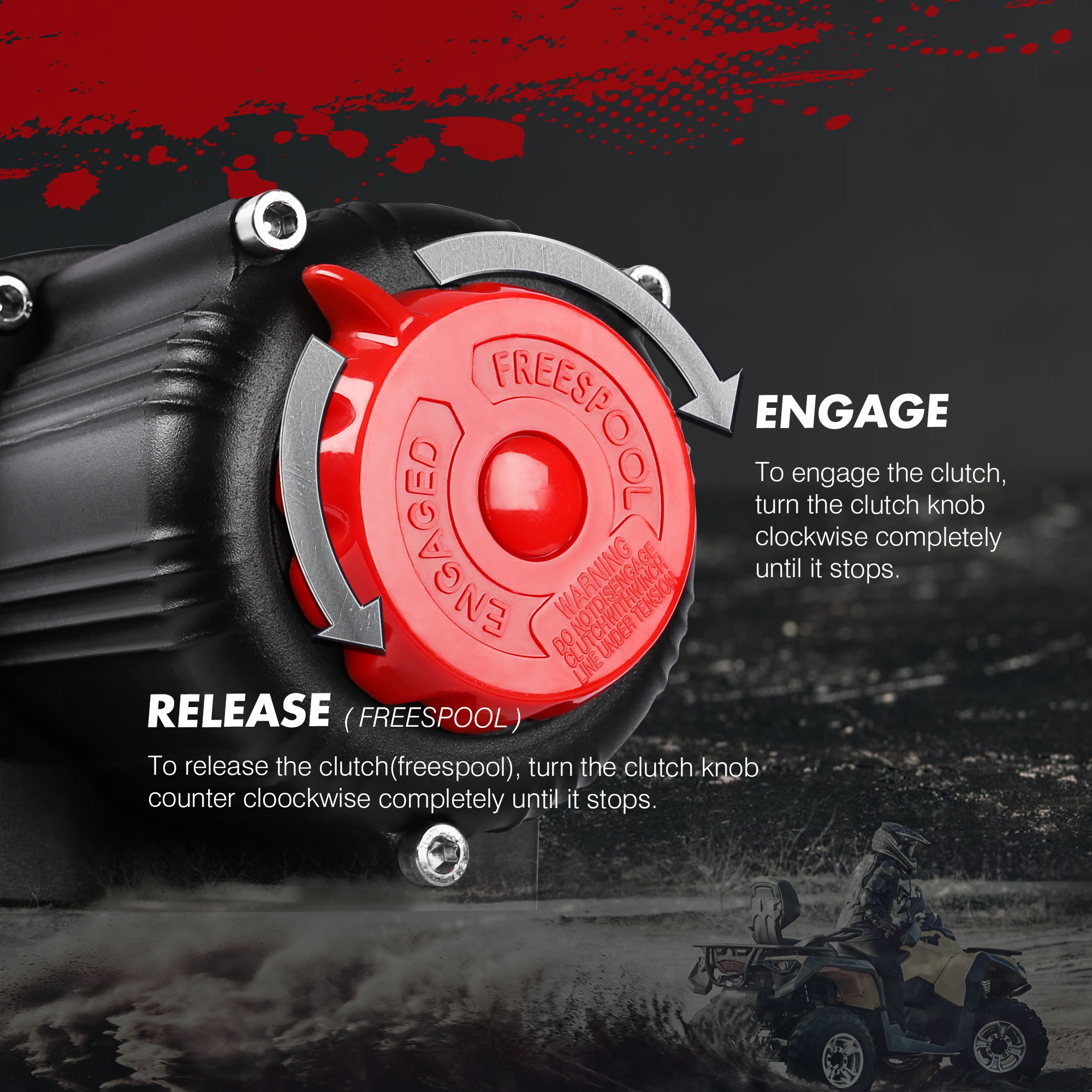

• Freespooling feature for quick rope payout
• Includes wireless remote control and hand remote for convenient operation
• Comprehensive mounting options with compatible plates and hardware
• Weather-resistant design with an IP66 rating for protection against water and dust

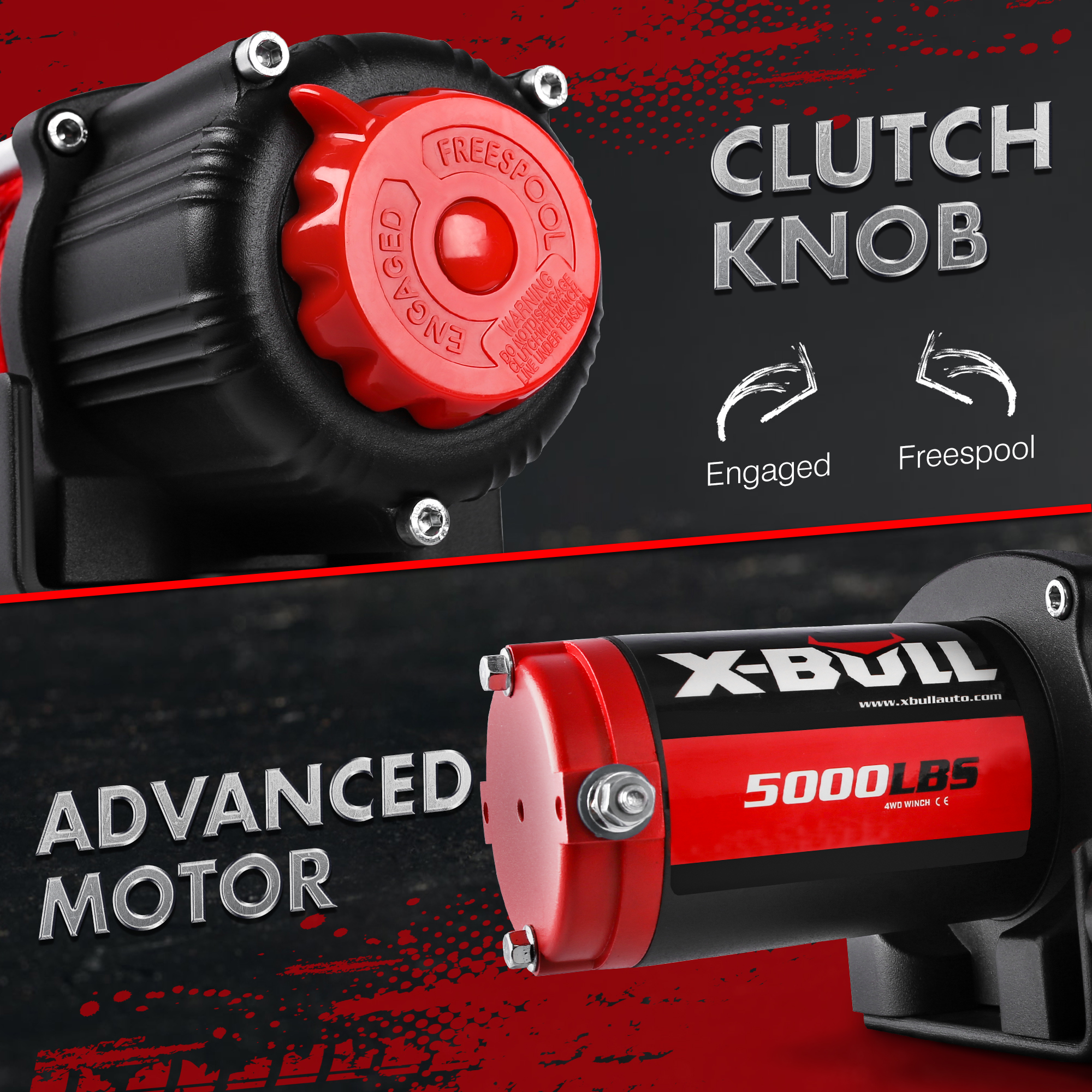

Specifications include a synthetic rope measuring 1/4 inch by 50 feet, a duty cycle rating of 5%, and overall dimensions of approximately 15.8 inches in length, 4.6 inches in width, and 4.7 inches in height. The winch operates on a 12V DC power supply with a minimum of 12Ah capacity, suitable for various off-road vehicles and marine use. It features a cam-activated freespool, a 1/4 inch clevis hook with safety latch, and comes with multiple mounting and protective components.

• Rated single line pull: 5000 pounds

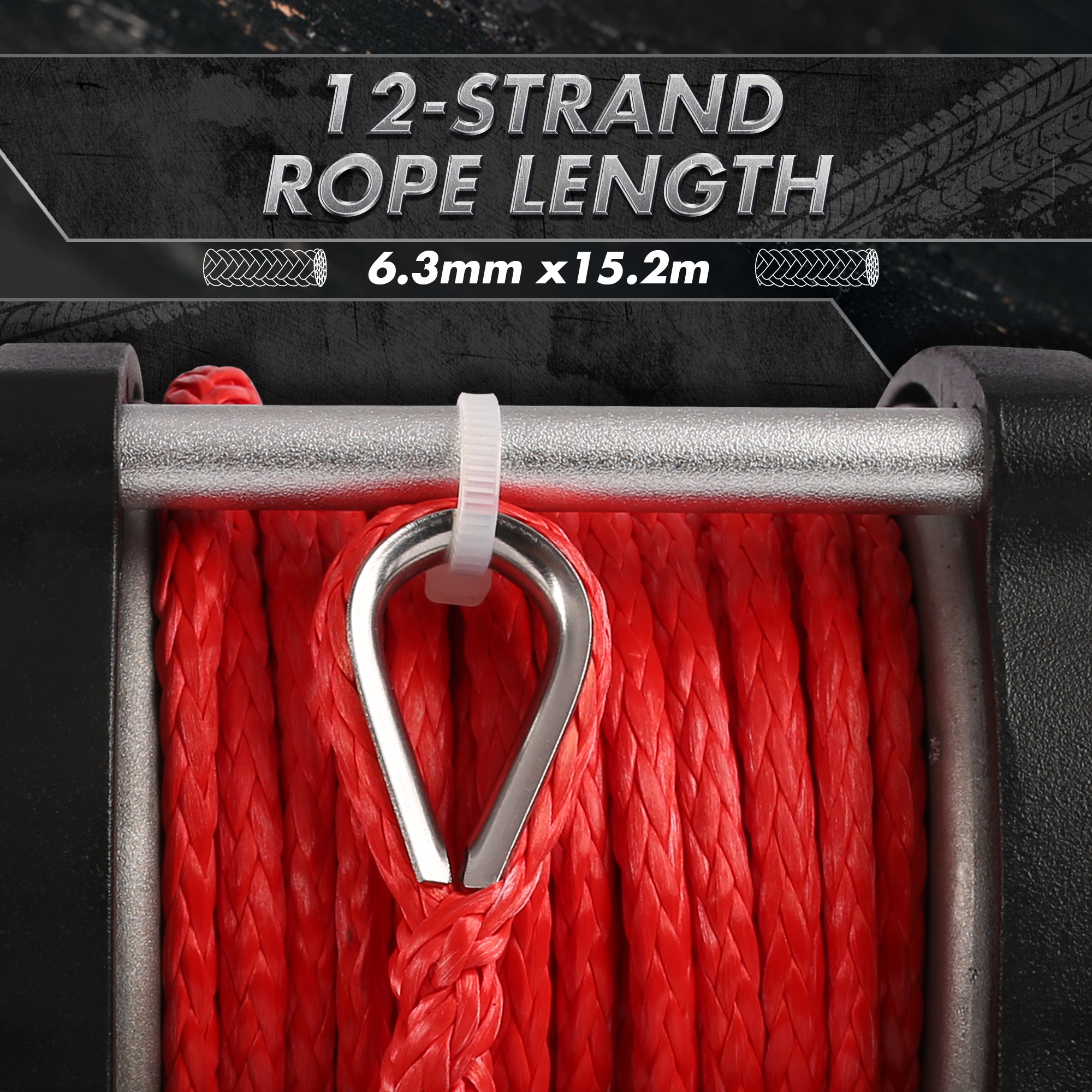

• Synthetic rope: 1/4 inch x 50 feet
• Overall dimensions: 15.8 x 4.6 x 4.7 inches
• Weight: approximately 26.45 pounds
• Application: ATV, UTV, boat
• Mounting pattern: 3 inches x 6.6 inches
• Gear train: 3-Stage planetary
• IP rating: IP66 for water and dust resistance

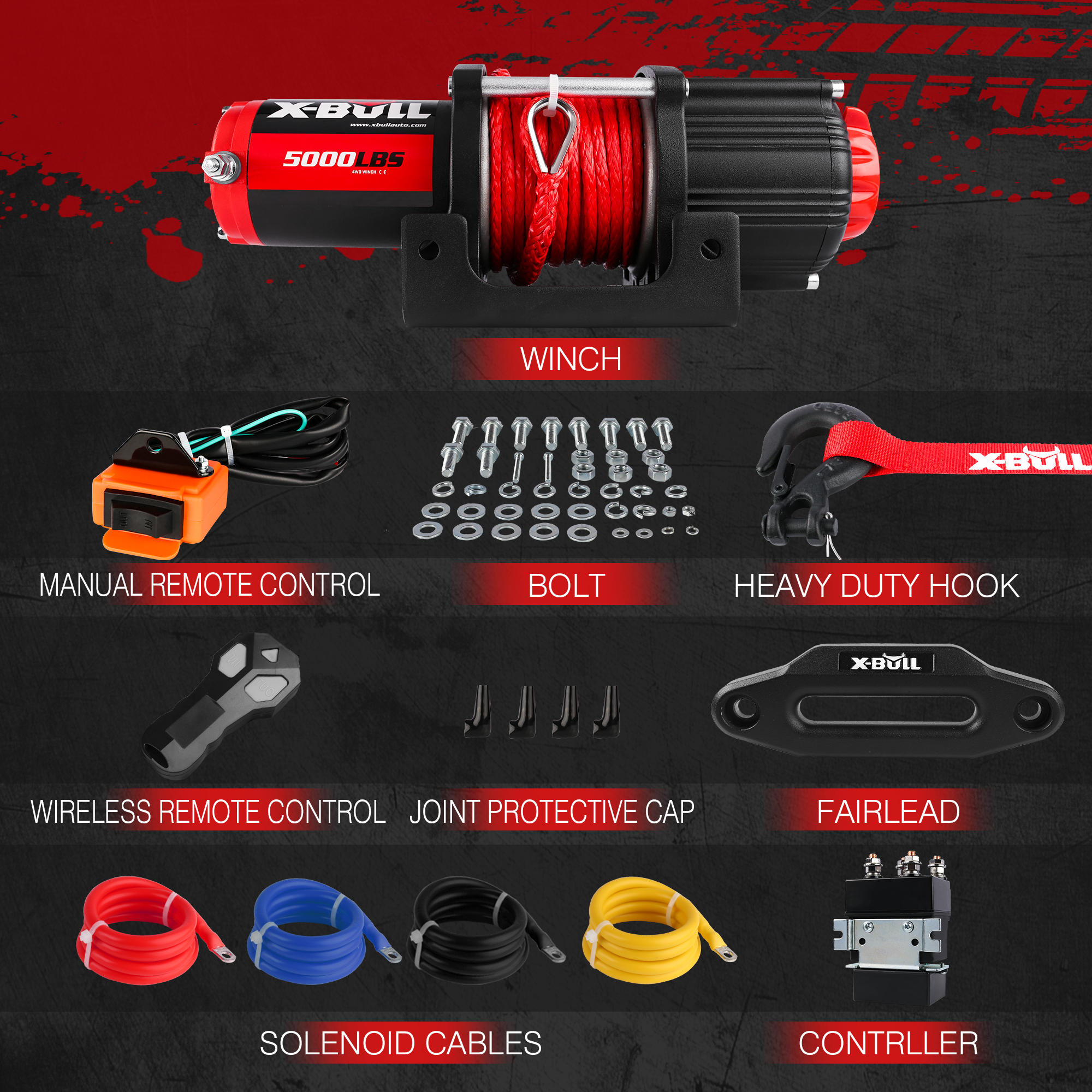

The package includes the winch, wireless remote control, user manual, aluminium hawse fairlead, joint protective caps, solenoid and receiver, mounting plate, solenoid cables, set of bolts, clevis hook, and a hand remote control.
